Kit Came automation swing gate 3mt 230V 001U7090
CMC 001U7090
8050456021816

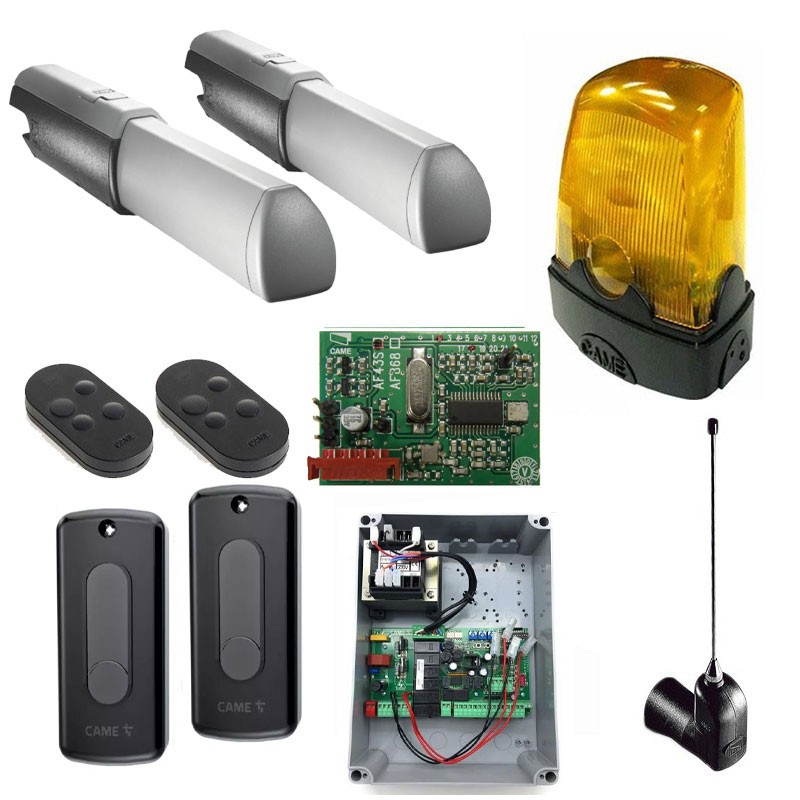

Kit automation swing gate 3 meters Came composed of:
- 2 pieces 230V irreversible gearmotors for swing gates (001A3000)
- 1 piece 230V control panel with speed control function and limit switch management (002ZA3P)
- 2 pieces TOPD4FKS four-channel dual frequency transmitters self-learning black (806TS-0102)
- 1 piece antenna tuned for flashing 433.92 Mhz (001TOP-A433N)
- 1 piece LED flasher (001KLED)
- 1 pair of outdoor photocells (001DIR10)
- 1 piece radio frequency card plug-in 433.92 Mhz (001AF43S)
Kit Came automation swing gate 3mt 230V 001U7090
€906.62
€906.62
Tax included
Tax included
Items Available: 30
: 1
Kit components:

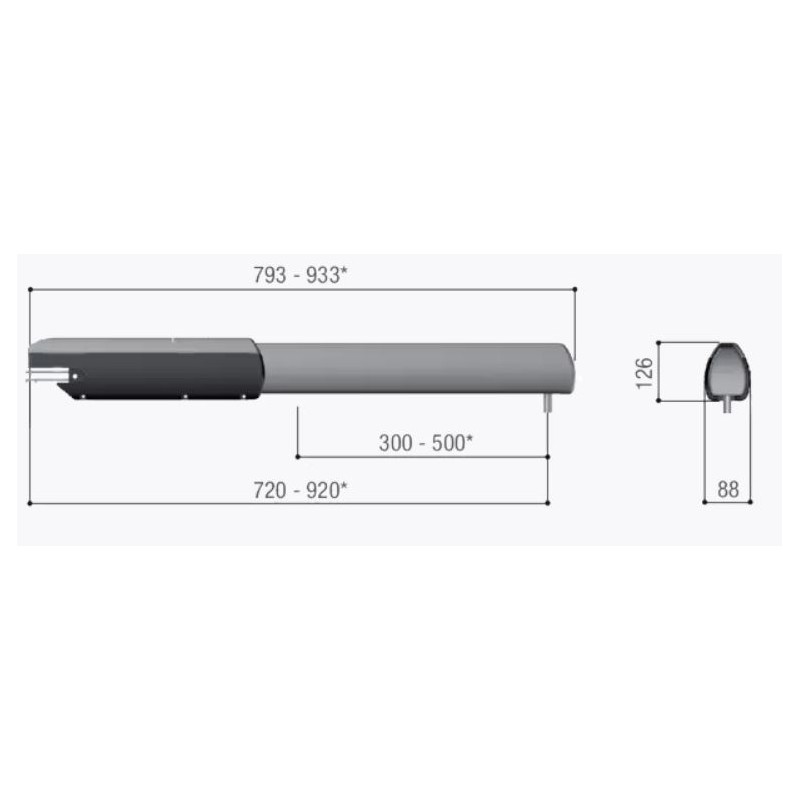

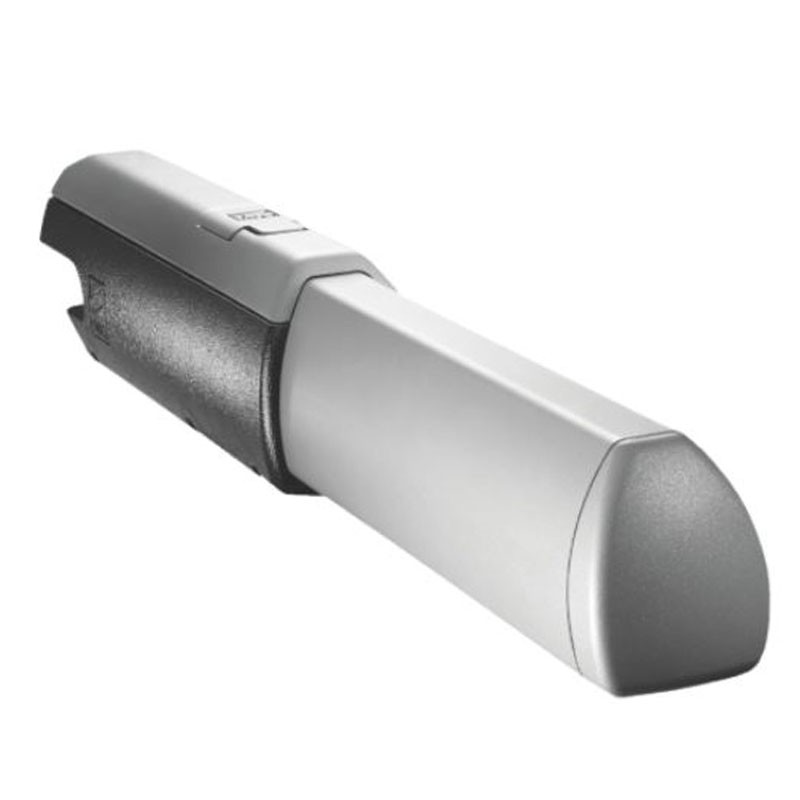

2 pcs irreversible gearmotors 230V for swing gates (001A3000): 230V AC irreversible gearmotor for swing gates up to 3 meters per leaf with 400 kg weight, with micro opening limit switch. Motor with electro-lock consists of two half-shells in cast aluminium. Motor voltage 230V, dimensions: 920 x 126 x 88 mm.

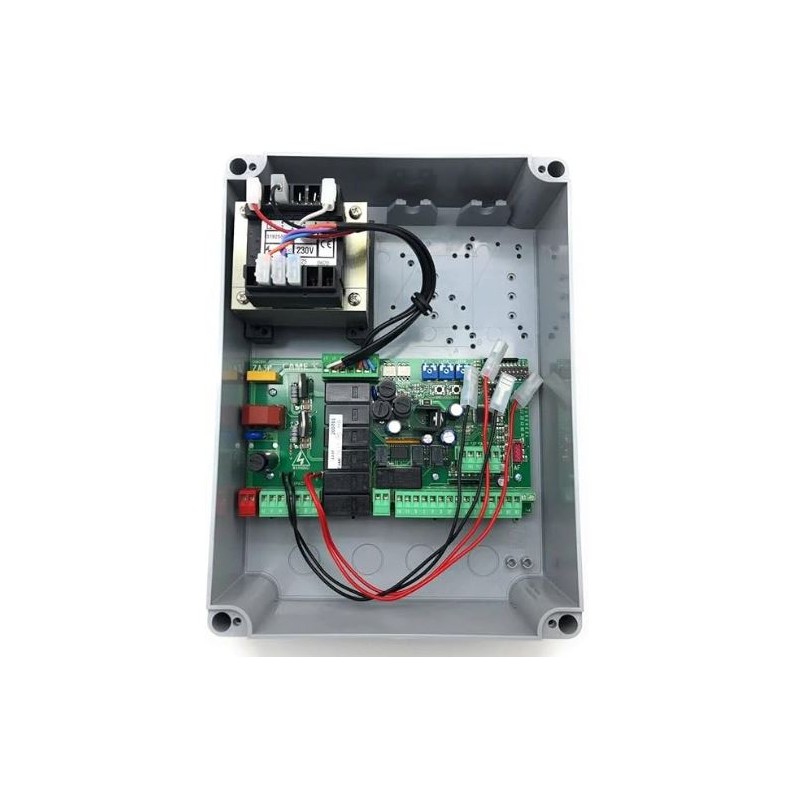

1 piece 230V control panel with speed adjustment and limit switch management function (002ZA3P): Came control panel for two-leaf swing gates, 230V power supply, with graphic display card for programming and signalling and self-diagnosis of the safety devices, with limit switch management and slowdown speed adjustment. This article is compatible with all Came motors (ATI-FAST-FERNI-FROG-KRONO). It replaces the old 002 ZA3N board.
Features:
- Power supply (V-50/60 Hz) 230 AC
- Absorption at rest 60 mA
- Max power 1150W
- Container material: ABS
- Degree of protection IP54
- Operating temperature: -20°C/+55 °C
- Dimensions: 274 x 204 x 13
- Insulation class: double insulation

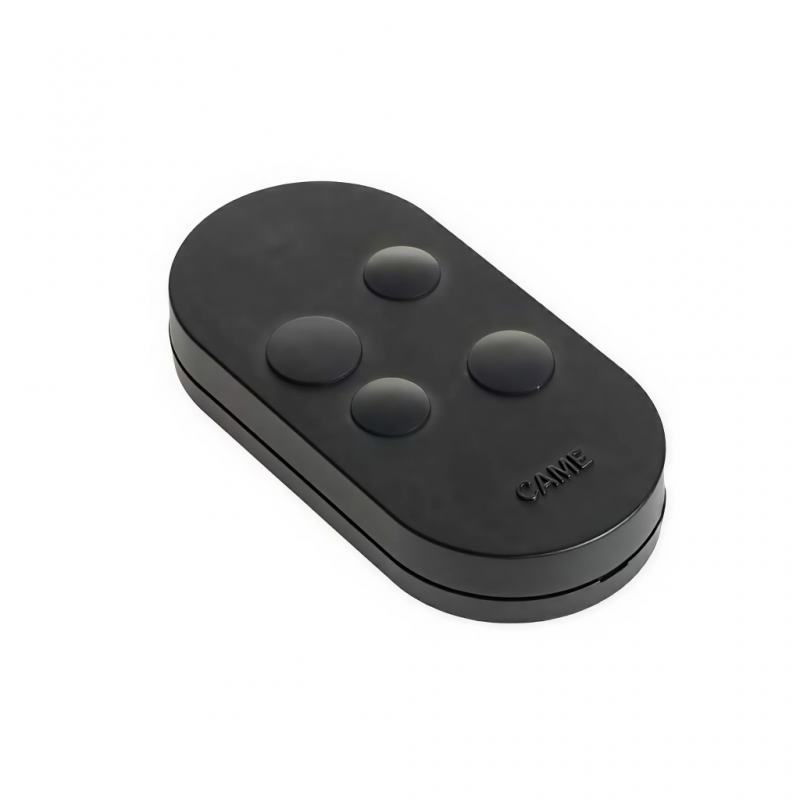

2 pcs TOPD4FKS 4-channel dual frequency transmitters self-learning black colour (806TS-0102): These 4-channel transmitters are used to control several CAME automations, gates, garage doors and awnings, from the same device using 2 different working frequencies, 433.92 MHz and 868.35 MHz. With its innovative design, it simplifies everyday life and works as a fixed code for greater safety.

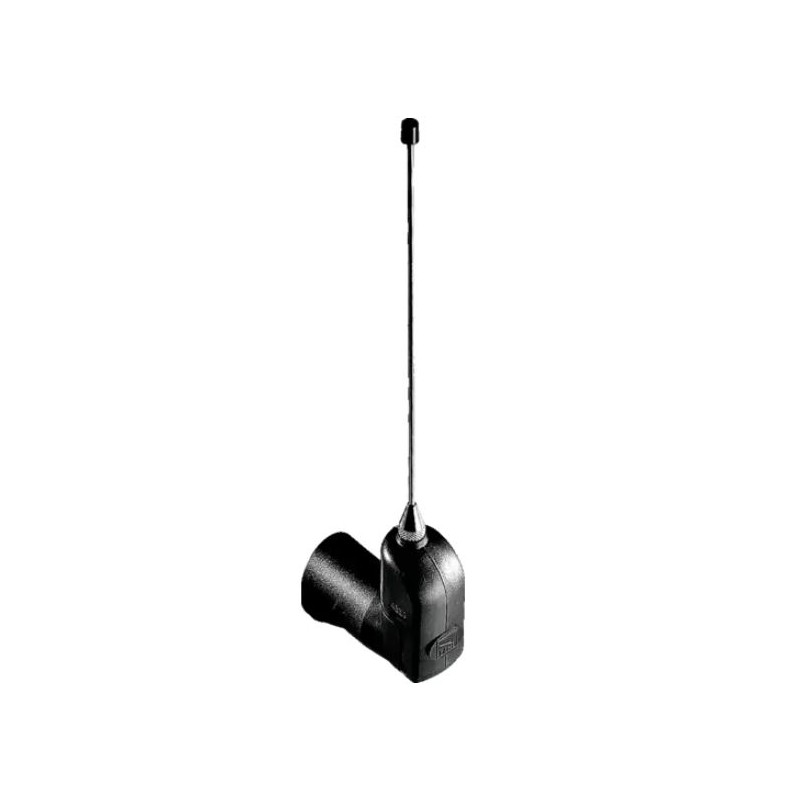

1 antenna tuned for flashing lights, working frequency 433,92 Mhz (001TOP-A433N).

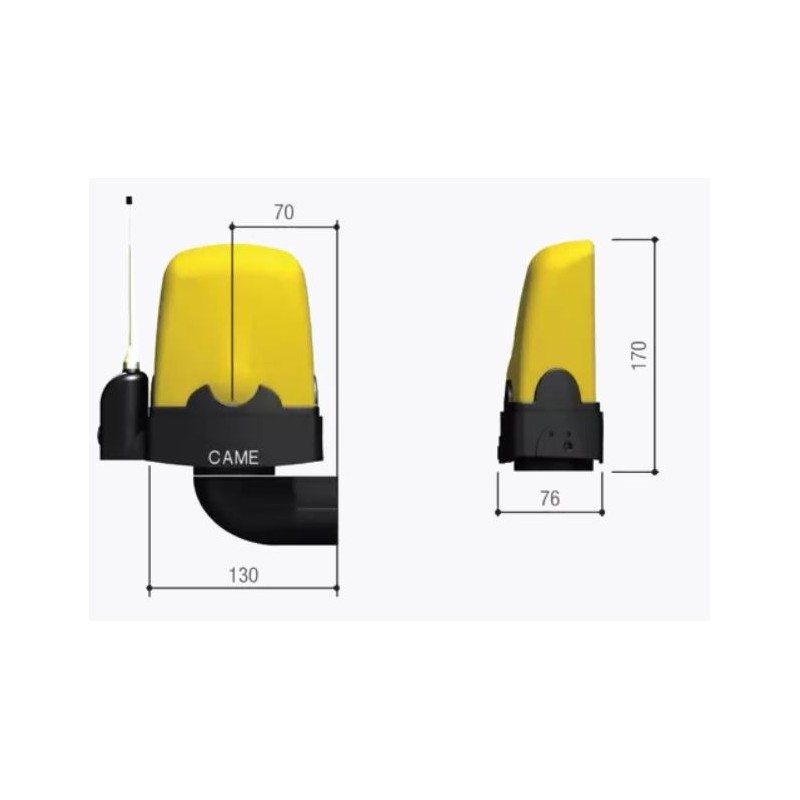

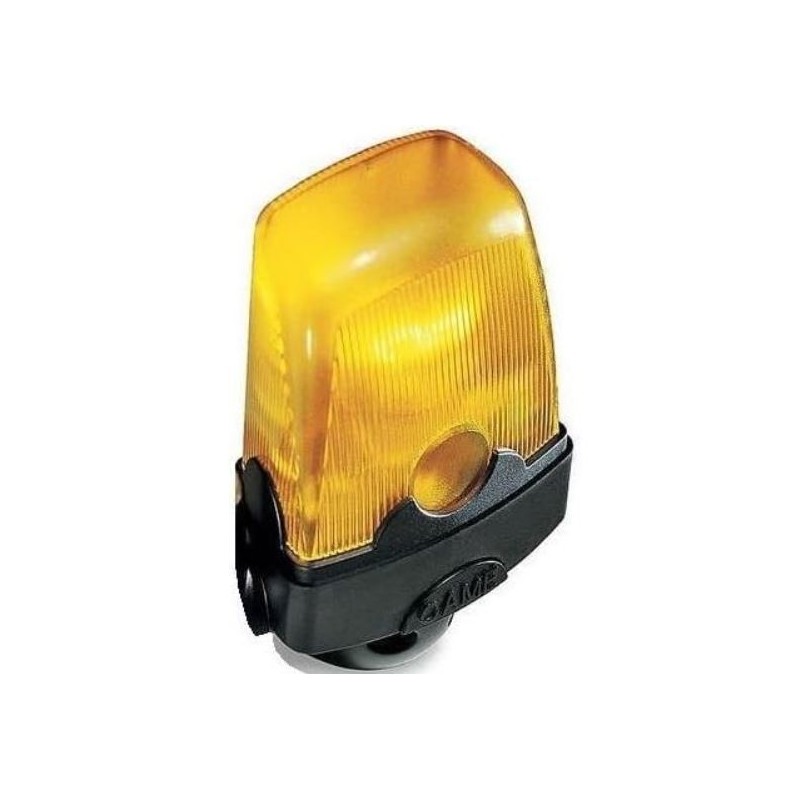

1 piece LED flasher (001KLED): LED signal flasher for Came gates, 120/230V AC power supply. Suitable for use in outdoor environments (outdoors and in bad weather).
Features:
- Power supply 120-230V
- Absorption 2W
- Prepared for antenna 001TOP-A433N
- LED operation
- Degree of protection IP54
- Dimensions: 170x130x76
- Intermittence 50
- Operating temperature -20°C/+50°C
- Material ABS polycarbonate

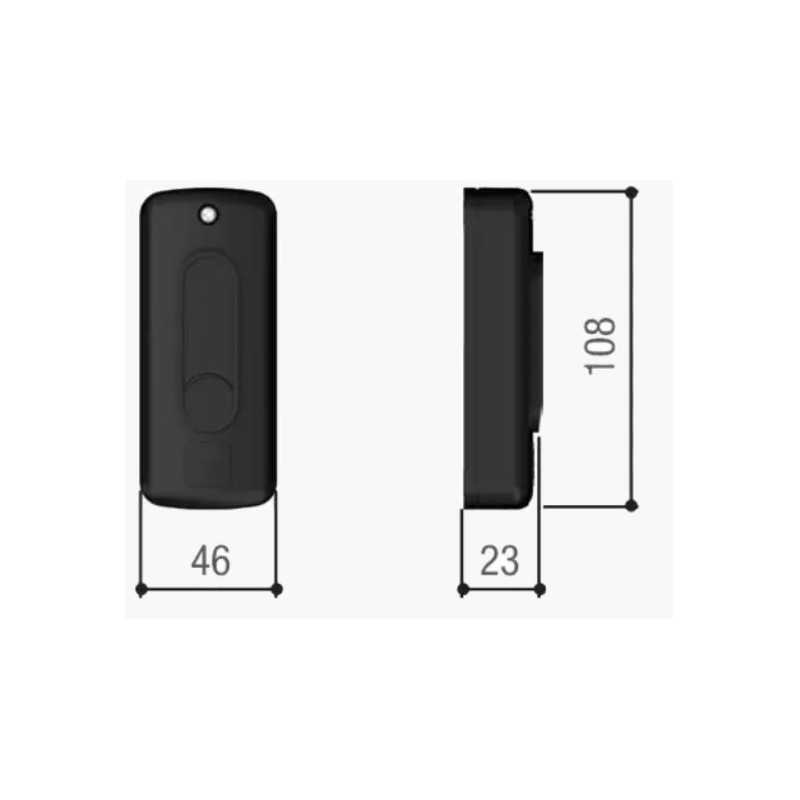

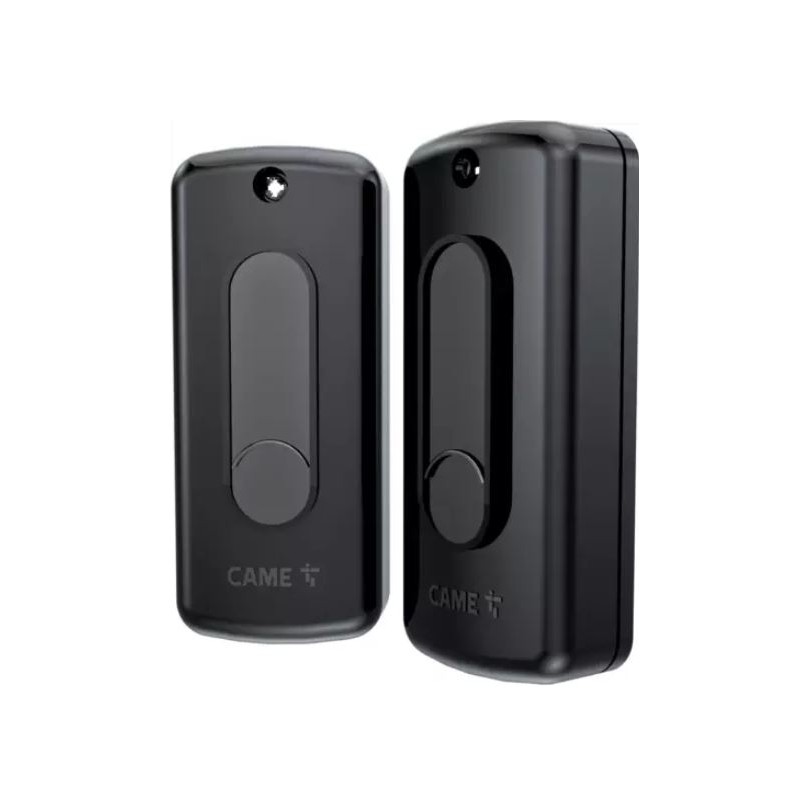

1 pair of outdoor photocells (001DIR10): Pair of Came infrared photocells for outdoor use, wall-mounted, maximum range 10 metres. Suitable for use in outdoor environments (outdoors and in bad weather).
1 plug-in radio frequency card 433.920 MHz (001AF43S): Came plug-in radio frequency card. It works on a frequency of 433.920 MHz, with a power supply of 12 V / 24 V (AC / DC). Number of channels 2. Came AF43S is a receiver that will allow you to manage your automations and motorizations in a reliable manner. It is easy to program thanks to mixed programming. Ideal for residential use. It has 2 channels and works with all CAME TOP432 / TOP434 remote controls and with CAME TAM432 (by removing the jumper on the receiver).
Conformità dell'articolo alla descrizione, velocità, accuratezza del confezionamento ed assistenza pre e post vendita.
Data sheet
- KIT: Kit Gates
- Type: Engines Gates
- Model: Swing gate
