Kit Came Frog gate swing underground max 3.5mt 230V 001U1924
CMC 001U1924
8050456055729

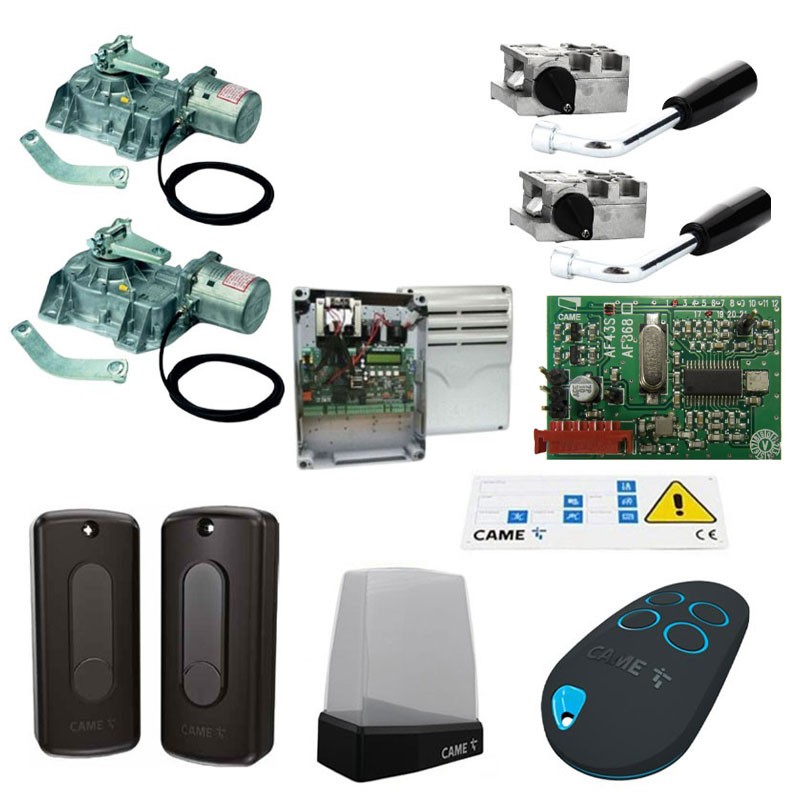

Kit Came Frog swing gate underground max 3.5mt, power supply 230V, the Kit consists of the following items:
- Pieces 2 001FROG-AE (Irreversible gear motor 230V)
- Pieces 1 002ZM3E (Multifunction control panel)
- Pieces 2 001A4364 (Key lever release device)
- Pieces 1 806LA-0020 KRX1FXSW (LED signal flasher with integrated antenna)
- Pieces 1 001AF43S (Plug-in radio frequency card 433.92MHz)
- Pieces 1 001DIR10 (Pair of outdoor photocells)
- Pieces 1 806TS-0270 (Dual-frequency rolling code remote control)
€985.58
€985.58
Tax included
Tax included
Items Available: 16
: 1
Frequently bought together
Kit specifications:

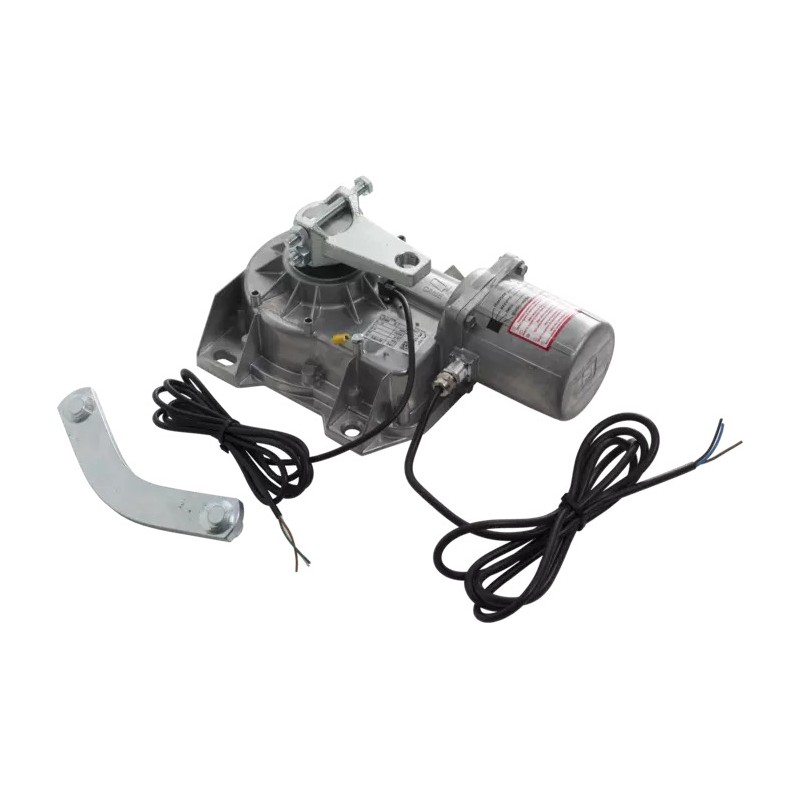

001FROG-AE Irreversible 230 V underground gearmotor with encoder and adjustable closing leaf stop for swing gates with leaves up to 3.5 m and 400 kg weight.
- Protection class IP67
- Control panel power supply (V - 50/60 Hz) 230 AC (1P+N+PE)
- Motor power supply (V - 50/60 Hz) 230 AC
- Power consumption (A) 1.9 max. 2.5 max.
- Power (W) 200 300
- Torque (N m) 320 max. 240 max.
- Open time at 90° (s) 18 9 Intermittency/Working (%) 30%
- Operating temperature (°C) -20 to +55
- Motor thermal protection (°C) 150
- Reduction ratio 1/1152
- Device class I
- Weight (kg) 11

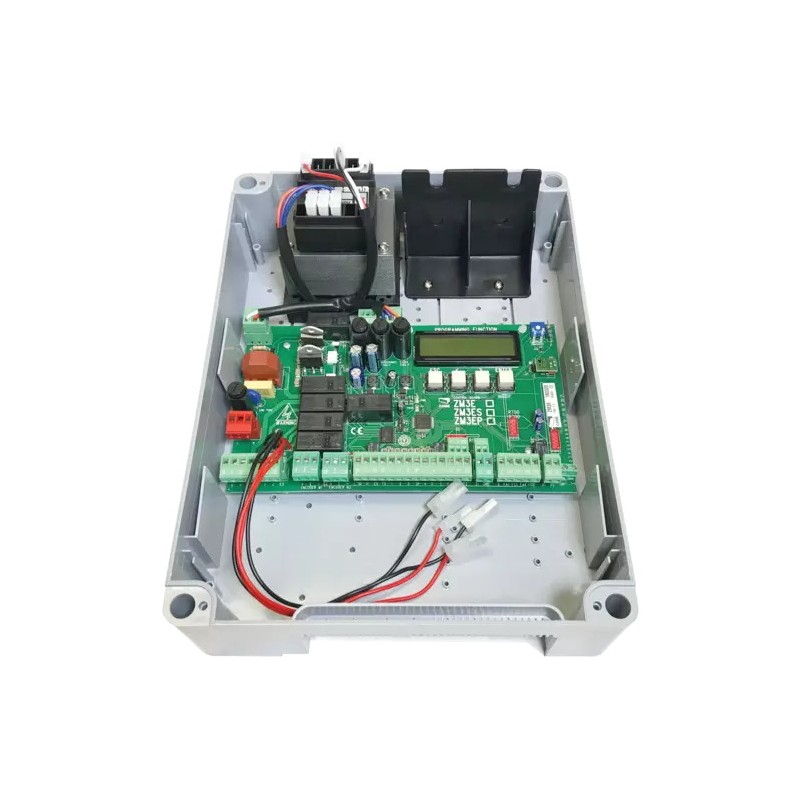

002ZM3E P Multifunction control panel for two-leaf swing gates, with graphic display for programming and signalling and self-diagnosis of safety devices, compatible with ATI - AXO - FAST - FERNI - FROG - KRONO.
- Degree of protection IP54
- Power supply (230V - 50/60 Hz) AC
- Max. accessory power at 24 V: 35 Watts
- Stand-by consumption: 4.70W
- Consumption with Green Power 0,75W
- Max. power: 750W
- Operating temperature: -20/+55°C
- ABS material
- Insulation class II

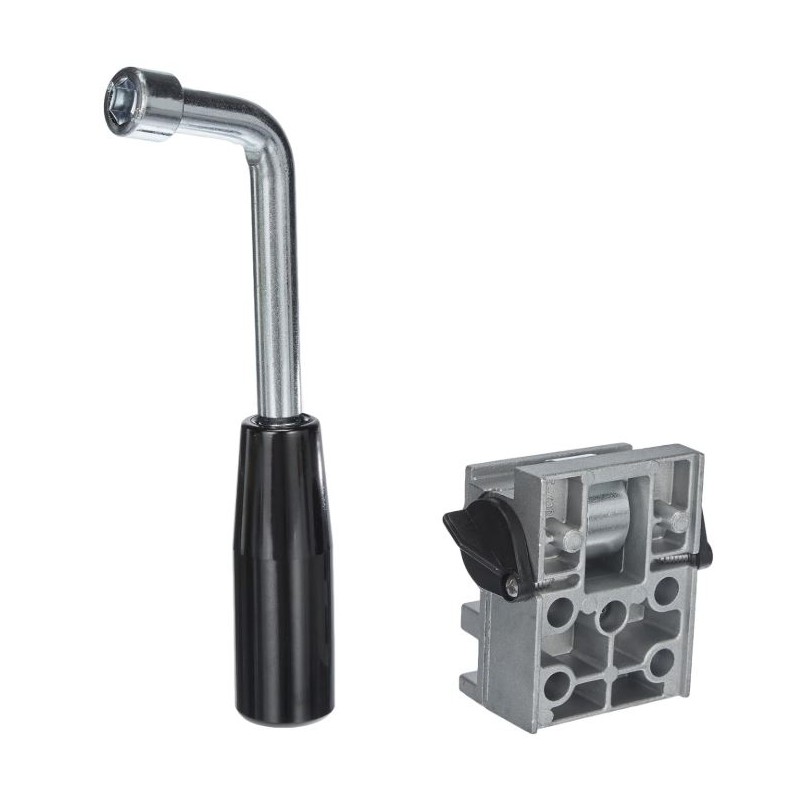

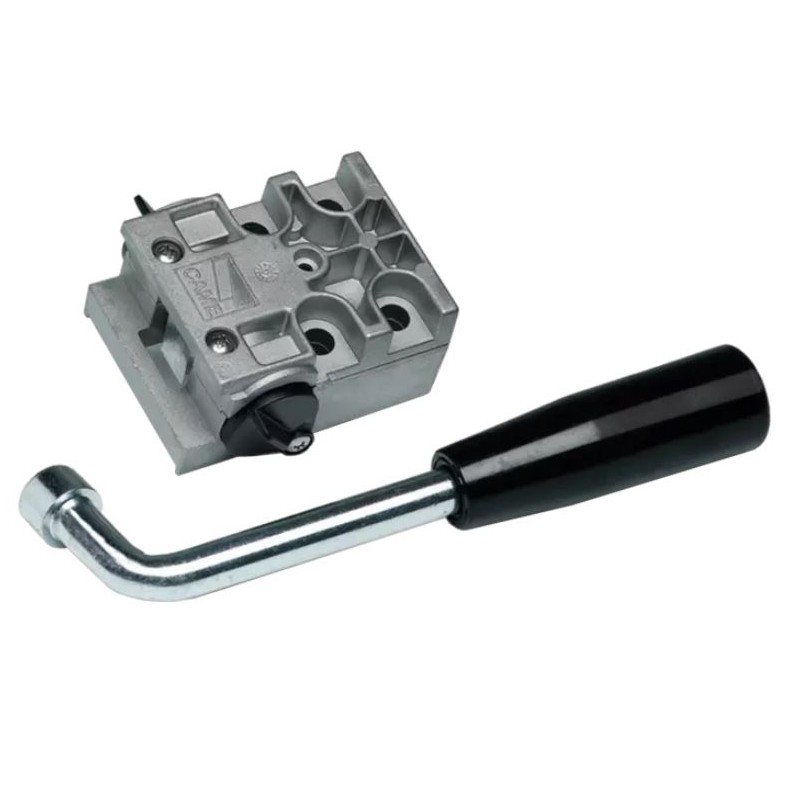

001A4364 Lever Key Release for Came FROG motors, Material: Die-cast aluminium, Suitable for outdoor use (weather-proof), Vandal-proof.

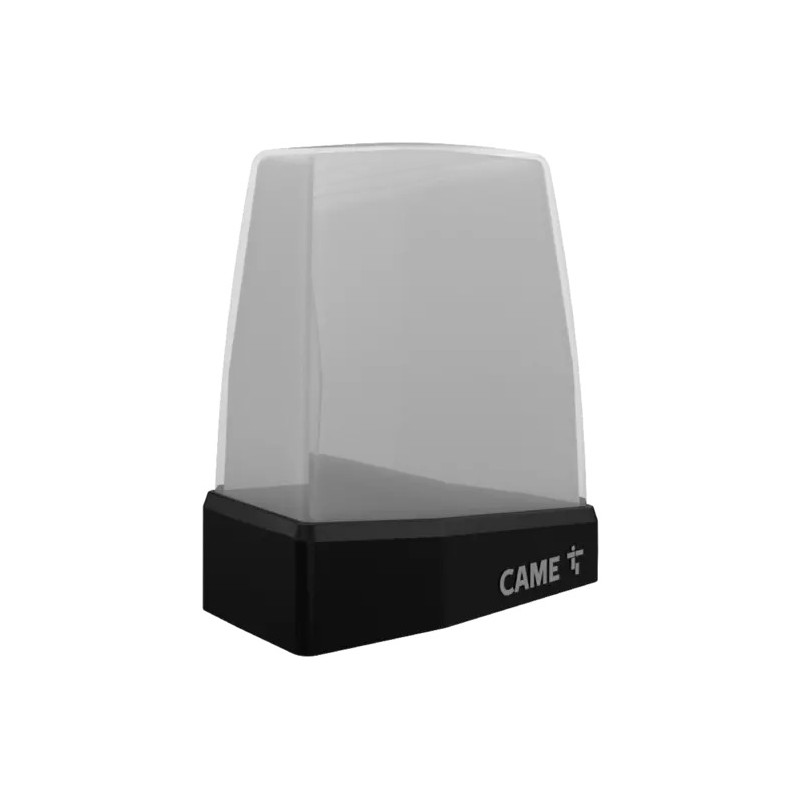

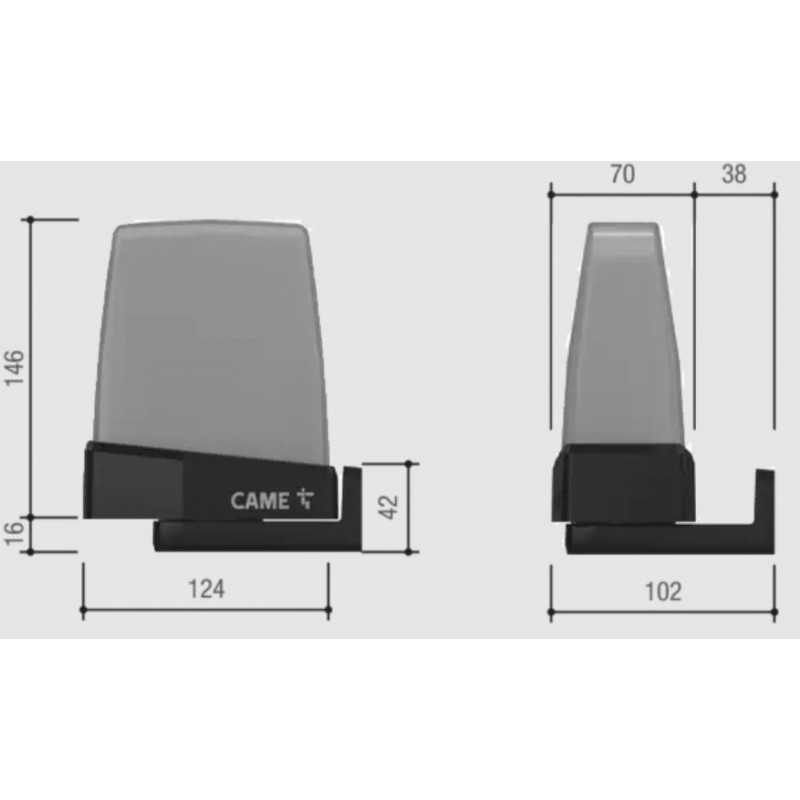

806LA-0020 (LED signal flasher with integrated antenna): Careful design and top-quality materials for a beacon that offers more than just signalling light. Unique model with universal power supply from 24V AC - DC to 230V AC. White dome.

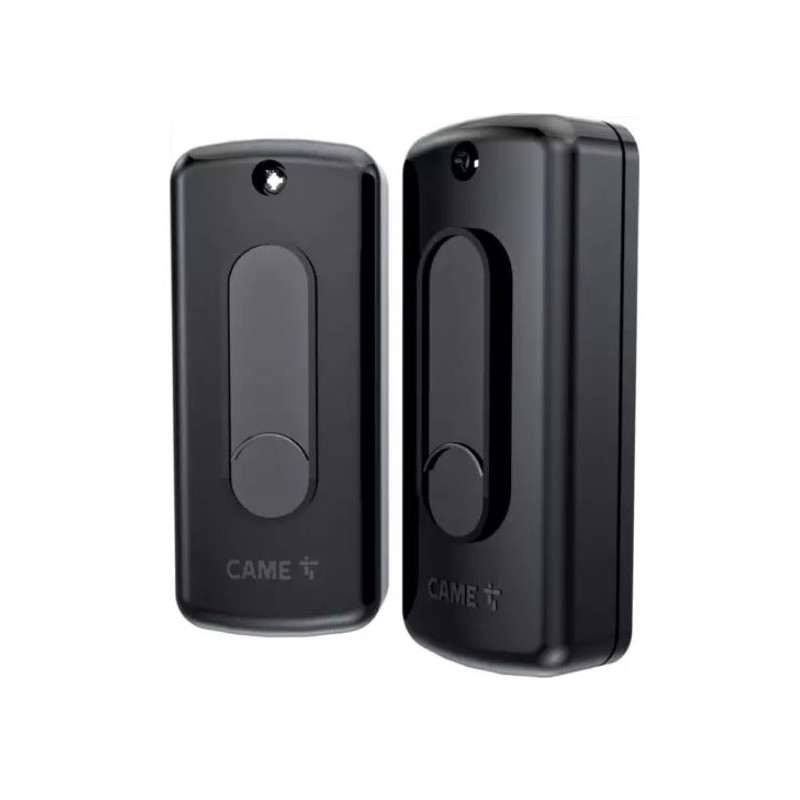

001DIR10 Pair of 12 - 24V AC - DC outdoor photocells. Maximum range 10 metres, suitable for outdoor use (outdoors and in bad weather). Synchronised infrared beam to avoid any external signal interference.
Features:
- Power supply 12 - 24V AC/DC
- Relay capacity at 24 V (mA) 500
- Current consumption at 24 V AC (mA) 60
- Max. relay contact rating at 24 V (A) 0.5
- High degree of weather protection (IP54)
- Material: ABS + polycarbonate

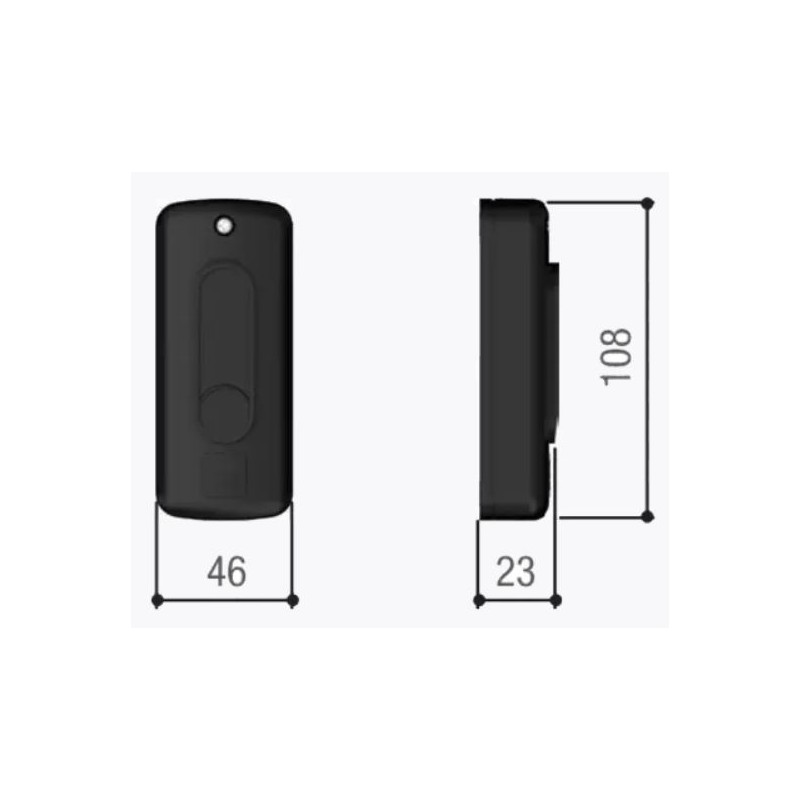

- Dimensions: 46x108x23 mm
- Operating temperature: -20/+55°C

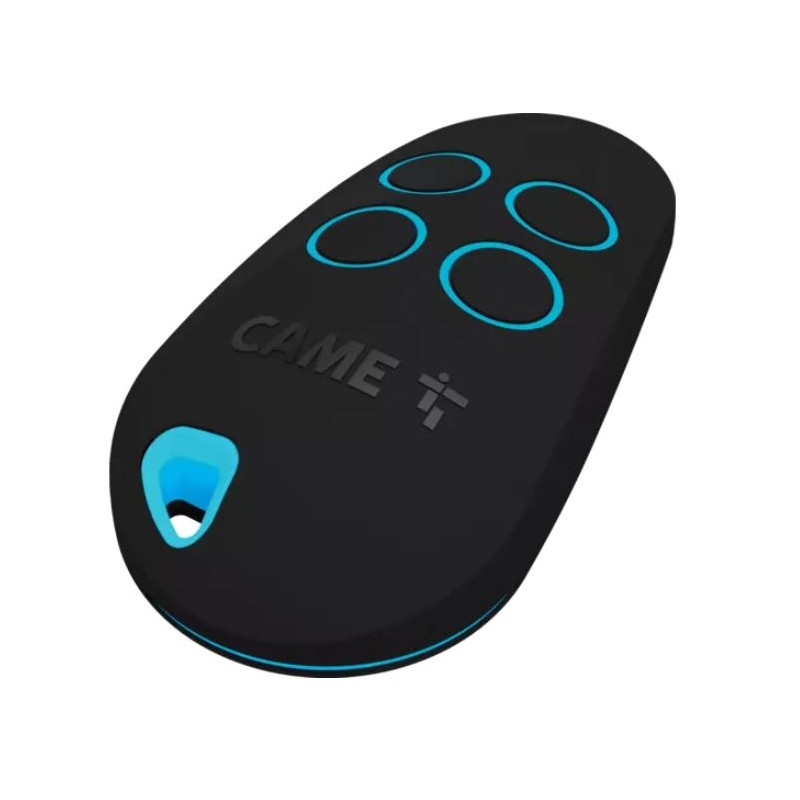

806TS-0270 Four-channel rolling code transmitter:
- Radio signal frequency 433.92 MHz
- 4,294,967,896 combinations
- Max. radio range (m) 50 ÷ 150
- Battery type: CR2032 Lithium
- Operating temperature (°C): -20/+55
- Material: polycarbonate

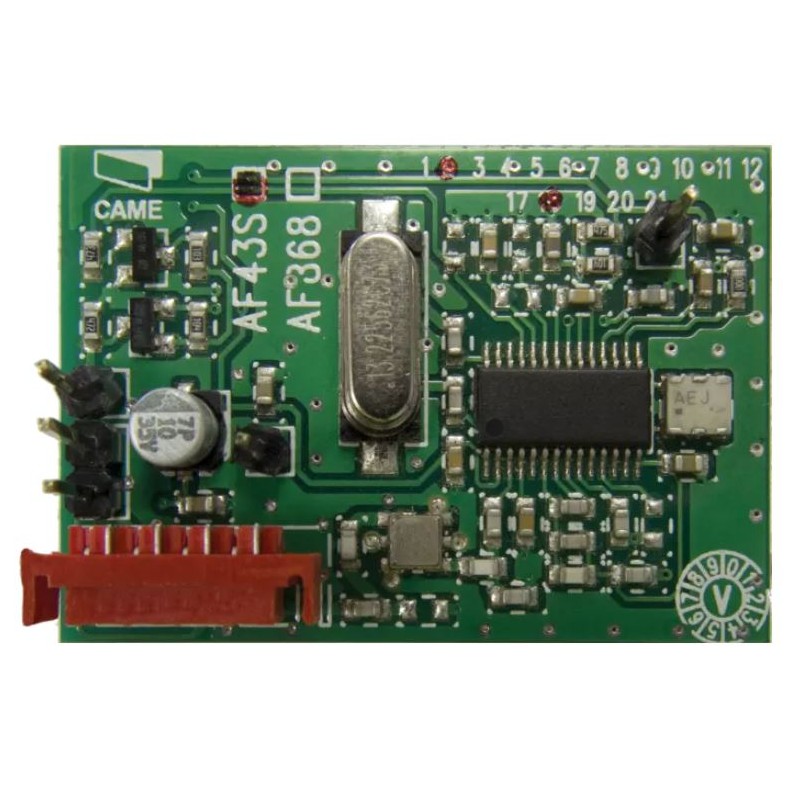

Plug-in radio frequency card 433.92MHz code 001AF43S: Radio frequency card that completes the receiver circuit implemented inside all CAME control boards and enables it to receive radio signals emitted by CAME transmitters.
- Power supply (V ±10%) 5
- Absorption current (mA) 5.5
- Coding type ASK
- Operating temperature (°C) -20 ÷ +55
- Sensitivity (dBm) -107
NOTE: The kit must be completed with the foundation boxes, which are not included in the package (compatible model code 001U1985).
