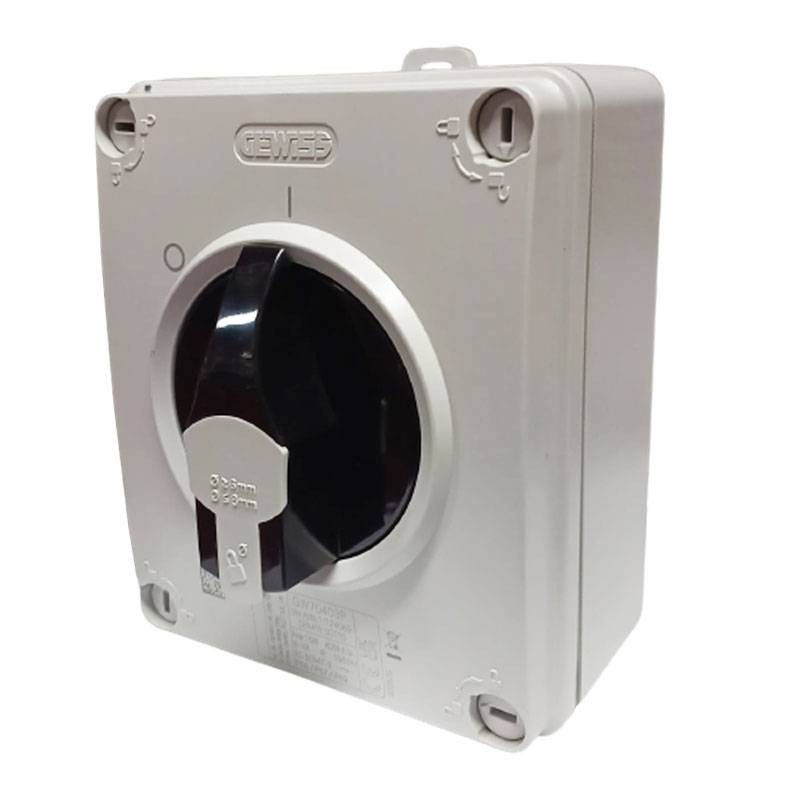

Gewiss HP 16A rotary wall switch 4P IP65 GW70403P
GEW GW70403P
8011564751125
Gewiss 4X16A rotary wall switch IP65 with the following features:
- Current in AC22 (415V): 16
- Current in AC23A (415V): 16
- Cable cross section: Max 10 mm²
- Rated current: 16A
- Version: Cassette
- Material: Insulator
- Number of poles: 4
- Degree of protection: IP66/IP67/IP69
- Padlockable black knob
Gewiss HP 16A rotary wall switch 4P IP65 GW70403P
€42.15
€42.15
Tax included
Tax included
Items Available: 86
: 13
70 RT HP is a new range of switch disconnectors in insulating material and metal enclosures from 16A to 160A. Offered in both control and emergency versions, the range is completed by panel-mounted versions for front-panel or DIN-rail mounting from 16 to 63A, all of which can also be accessorized with auxiliary contacts. These devices are designed to position themselves at the top of reliability, functionality and performance. They offer a technologically advanced solution capable of simplifying installation, reducing wiring time and ensuring maximum safety and robustness even under the most severe conditions, thanks to the use of high-performance materials.
Features:
- Impact resistance: IK08
- Ambient temperature: -25 to +60 degrees
- Cover screws (number and type): 4 1/4-turn insulators
- Input holes: 2 x M20/25 + 2 x M20/25
- Accessory type: max. 2 aux contacts
- Dimensions: 125x150x75.5mm (BxHxD)
There are no reviews
Data sheet
- Type: Rotary switches
- Voltage: 415VAC
- Poles: 4P
- Degree of protection: IP67
- Amps: 16A
