Growatt 5.0 KWH AXE5.0L lithium battery for SPH series photovoltaic inverter GWAXE50LC1


GRW GWAXE50LC1

Growatt 5.0 KWH AXE5.0L lithium battery for SPH series photovoltaic inverters:



  • Only for Single Phase Low Voltage Systems
  • AXE 5.0L Battery Module - C1 (5kWh, 51.2V, 40Kg)
  • Modular system, expandable capacity from 5KWh to 50KWh
  • Cobalt-free LiFePO4 technology
  • Cable-free installation with stackable modules
  • Remote FW upgrade
  • Capacity 5.0kWh
  • Dimensions (W/D/H in mm 650/350/165 (Dimensions are those of the battery system complete with the support base)
  • Weight 42Kg
  • Cobalt-free Lithium Iron Phosphate (LFP) technology

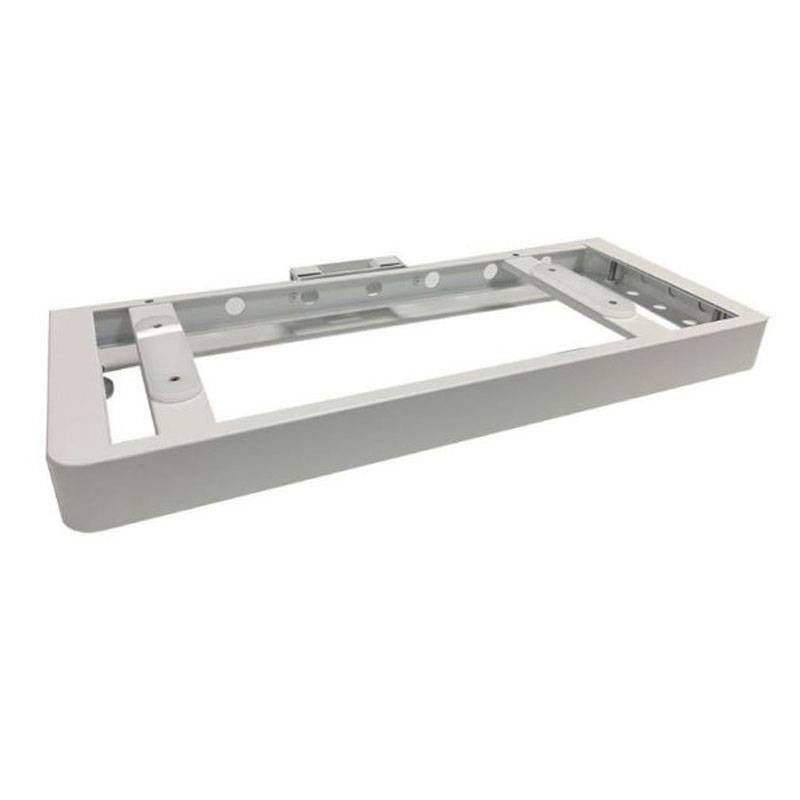

Accessory Growatt base and connection cables for SPH Inverter and AXE5.0L batteries code GWAXE50LC1BASECB to be purchased separately.

Do you have questions about this product or did you not find what you were looking for? Ask us!

Growatt 5.0 KWH AXE5.0L lithium battery for SPH series photovoltaic inverter GWAXE50LC1

€1,774.83
€1,774.83

Growatt 5.0 KWH AXE5.0L lithium battery for SPH series photovoltaic inverter GWAXE50LC1

€1,774.83
Tax included

Growatt 5.0 KWH AXE5.0L lithium battery for SPH series photovoltaic inverter GWAXE50LC1

€1,774.83

Buy it within and receive it from Wednesday, 13 November
Two-year warranty
Easy return within 14 days

Characteristics:

  • Max Charge Corr (The data in the table are those characteristic of the batteries. When batteries are included in a complete storage system, the maximum charge and discharge power data are those given on the characteristics of the inverter to which they are connected, SPA or SPH models) 60A
  • Max Discharge Corr (The data in the table are those characteristic of the batteries. When batteries are included in a complete storage system, the maximum charge and discharge power data are those given on the characteristics of the inverter to which they are connected, SPA or SPH models) 60A
  • Rated voltage 51.2V
  • Working voltage Range 48-57.6V
  • Degree of protection IP20
  • Installation Floor mounting () Additional base plate is required for floor installation (Dimensions L/P/A=654/353/25 mm)
  • Working temperature 0-50 degrees
  • DoD 92%
  • BMS Monitoring Parameters Measurement of: SOC, System Voltage, Current, Cell Voltage, Cell Temperature, Board Temperature
  • CAN/RS485 Communication Port
  • Warranty 10 years



Maximum 10 modules per battery system (cluster) and stackable in one column.

Data sheet

Type:
Storage batteries
Power:
1 to 5KW
