Haier Pearl Penta Split air conditioner 2.5+2.5+2.5+2.5+2.5kW WIFI R32
Haier Pearl Penta Split air conditioner 9000+9000+9000+9000+9000BTU (2.5+2.5+2.5+2.5+2.5kW) Inverter WIFI, energy class A++/A+. Replaces the model Tundra.
Kit consists of:
- 5 Indoor Machines 9000BTU 2,5kW (AS25PBPHRA - 2501301JA)
- 1 Outdoor Machine 10,0kW 5 Connections (5U105S2SS5FA - 2502328C2)

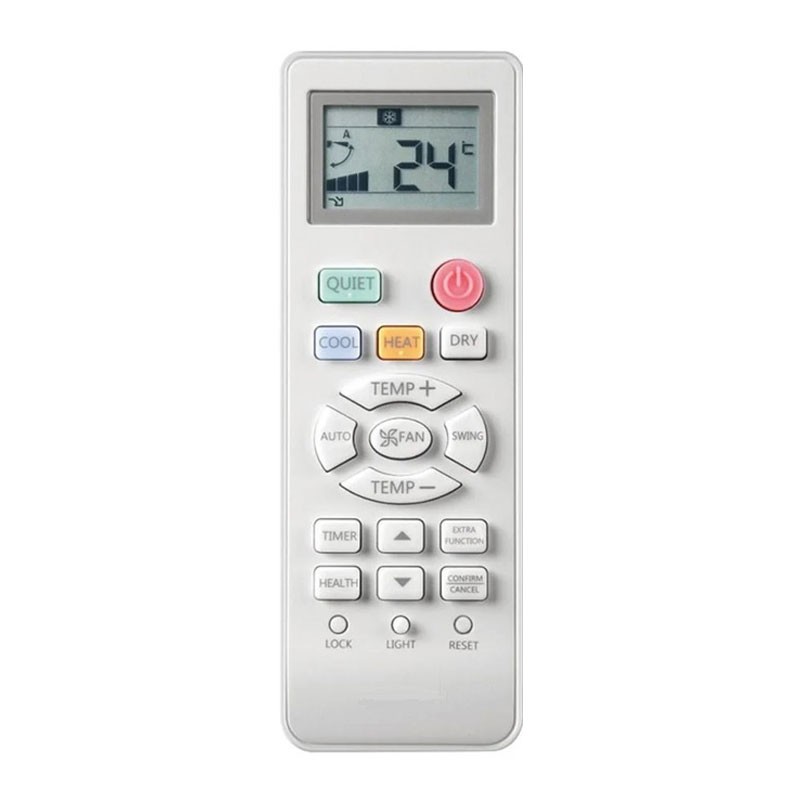

- 5 YR-HE remote controls.
This combination gives the possibility of simultaneous operation of the internal machines.
Integrated Wi-Fi control to remotely control the air conditioner with hOn.
Purification, with UV-C lamp, Coanda airflow.
Haier Pearl Penta Split air conditioner 2.5+2.5+2.5+2.5+2.5kW WIFI R32
Haier Pearl Penta Split air conditioner 2.5+2.5+2.5+2.5+2.5kW WIFI R32
Tax included
Haier Pearl Penta Split air conditioner 2.5+2.5+2.5+2.5+2.5kW WIFI R32
Frequently bought together
The Pearl air conditioner is also an air purifier. The unit is in fact equipped with the "UVC GeneratorModule", a module that generates ultraviolet rays capable of sanitizing the environment.
Maximum Comfort
- With the Pearl air conditioner purifier comfort is assured. With a sound level of 18 dB(A), it is silent and discreet.
The Coanda effect ensures comfortable air distribution throughout the room:
- in cooling mode, cold air travels parallel to the ceiling and is evenly directed from the ceiling to the floor of the room, avoiding a direct cold air current on people;
- in heating mode, the warm air is directed directly onto the floor, then circulates throughout the space and ensures a constant temperature distribution in every corner of the room.
Smart with new "hOn" app:
- With Haier's "hOn" app, you can control from your smartphone or tablet, from a single app, all Haier Group appliances in your Smart Home, including the new Pearl air conditioner and air purifier.
- The basic and purification functions of the air conditioner are easily managed, thanks to a truly simple and intuitive interface. The app also allows the use of voice commands, because it is compatible with Google Assistant and Alexa.
- With Haier's "hOn" app, you can control all the Haier group appliances in your Smart Home from your smartphone or tablet with a single app. The app allows the use of voice commands because it is compatible with Google Assistant and Alexa.
Advantages:
- Purification, with UV-C Lamp
- Connectivity, with standard Wi-Fi and the new hOn app
- Comfort, with Coanda Plus airflow
- Quiet, with sound level 18 dB(A)
- Design, with matte white finish
- Easy installation
- Energy class in cooling mode: A++
- Energy class heat pump: A+
Main functions:
- Coanda air flow
- Wi-Fi control with hOn App for remote control of the air conditioner
- Low sound level
- Intelligent Air: automatically orients the deflectors in order to distribute the airflow in the best way according to the set mode.
- Easy installation.
Technical characteristics:
Cooling 9000BTU 2.5kW (AS25PBAHRA - 2501301HA):
- Rated Capacity Min/Max: 2.6 KW (0.8-3.0)
- Rated input power: Min/Max kW 0.8 (0.3-1.2)
- SEER 6.1
- Energy Class: A++
- EER 3.25
- Indicative annual energy consumption kW/a 149
Heating 9000BTU 2.5kW (S25PBAHRA - 2501301HA):
- Nominal Capacity Min/Max: KW 2.8 (0.8-3.2)
- Nominal input power Min/Max 0.78 (0.3-1.4)
- SCOP: 4.0
- Seasonal energy efficiency class A+
- COP 3.73
- Indicative annual energy consumption: kWh/a 840

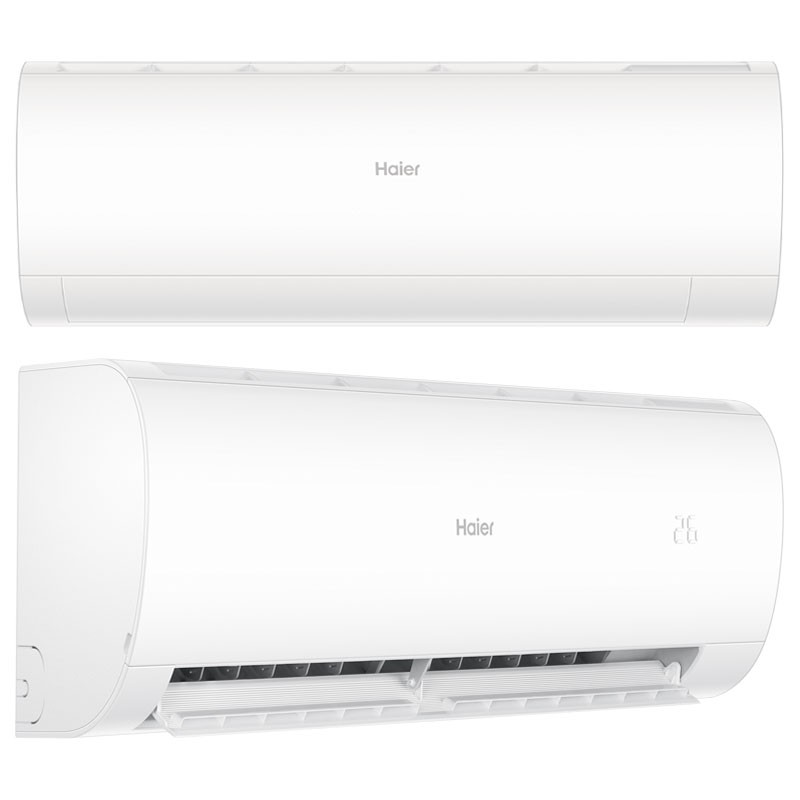

Features Indoor Unit 9000btu 2.5kW:
- Dimensions: (WxDxH) 805x200x290mm
- Weight 8,3 Kg
- Treated air cubic meters/h 840
- Dehumidification capacity l/hr 1,0
- Sound pressure level (Cooling/heating) dBa 37/32/28/18
- Sound Power Level dBA 54/55

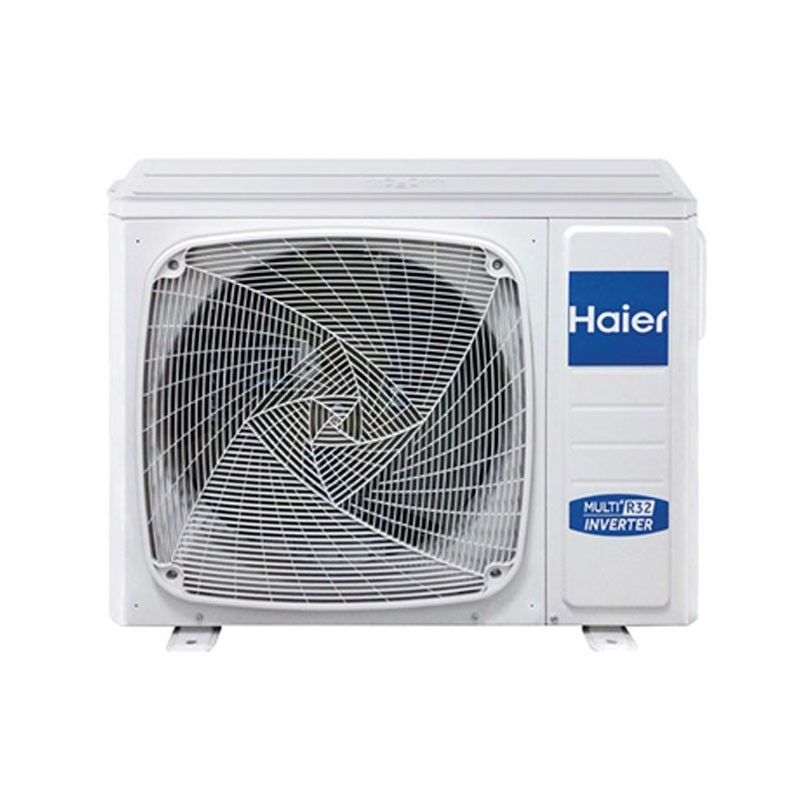

Features of Outdoor Unit 10.0kW 5 Connections (5U105S2SS5FA - 2502328C2):
- Rated output power Cooling (min-max) kW 9.5 (3.2-10.8)
- Output power Heating nominal (min-max) kW 10.5 (4.4-11.0)
- Power input Cooling nominal kW 3.39
- Power input Heating nominal kW 2.84
- EER 2.80
- COP 3.70
- SEER 7.0 (A++)
- SCOP 4.00 (A+)
- Annual energy consumption Cooling kW/a 579
- Annual Energy Consumption Heating kW/a 2978
- Compressor brand Hitachi
- Dimensions: (WxDxH) 920x372x760mm
- Weight 66 Kg
- Sound Pressure Level dBa 55
- Sound Power Level dBA 70
- Power supply Single-phase 220-240 / 50Hz
- Liquid piping 5 x 6.35 (1/4")
- Gas piping 3 x 9.52 (3/8") + 2 x 12.70 (1/2") (add 2 pieces of 3/8-1/2 male-female reductions purchased separately)
- Max. piping length 80 meters/min
- Max height difference between indoor/outdoor unit 15 meters
- Refrigerant Type: Gas R32
- Max pipe length (without refrigerant charge) 40 meters
- Factory refrigerant charge 2,4 Kg
- Additional charge over standard length 20 g / m
- Operating limits Cooling min-max: -10 -43 Degrees (out)
- Operating limits Heating min-max: -15 -24 Degrees (out).
Data sheet
- Air conditioners:
- Pentasplit
- Gas:
- R32
- Power:
- 9+9+9+9+9 BTU
- WIFI:
- Integrated
- Room Size:
- 27m²+27m²+27m²+27m²+27m²
- Energy class:
- A++
- Series:
- Pearl
