Haier Revive Air Conditioner 2.5KW 9000Btu A++/A+ R32 WIFI with Mounting KIT

Haier
KIT REVIVE09K 6932063846490

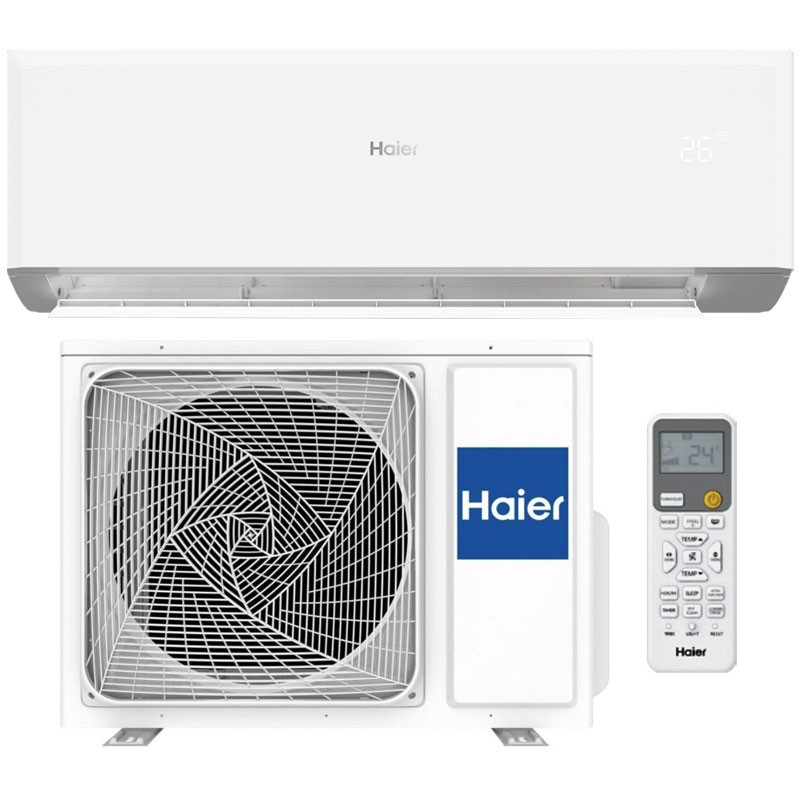

Haier Revive inverter 2.5KW 9000Btu single-split air conditioner, energy class A++/A+, with new R32 Gas, price includes:

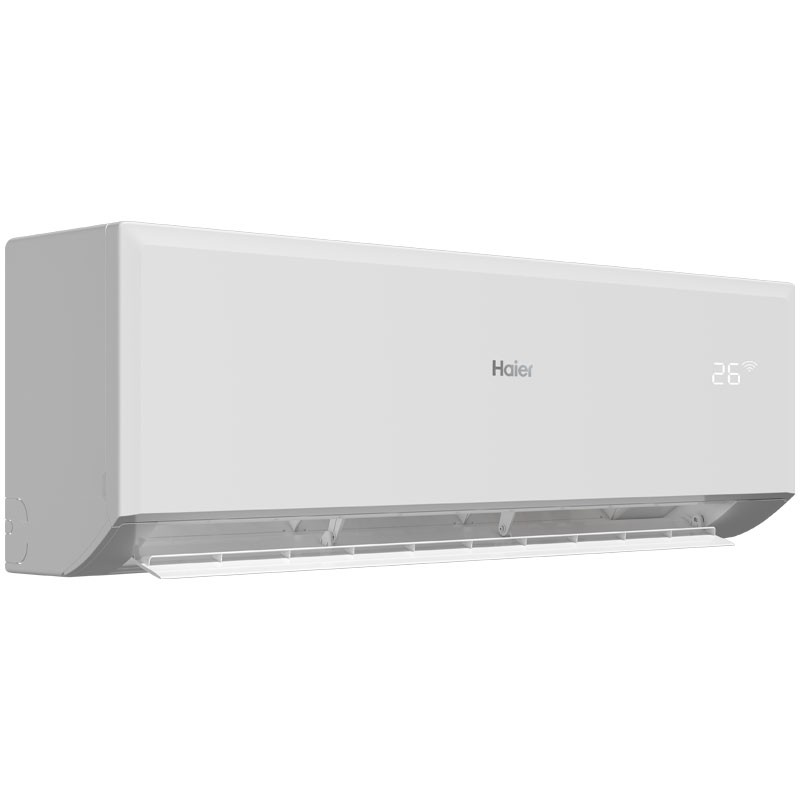

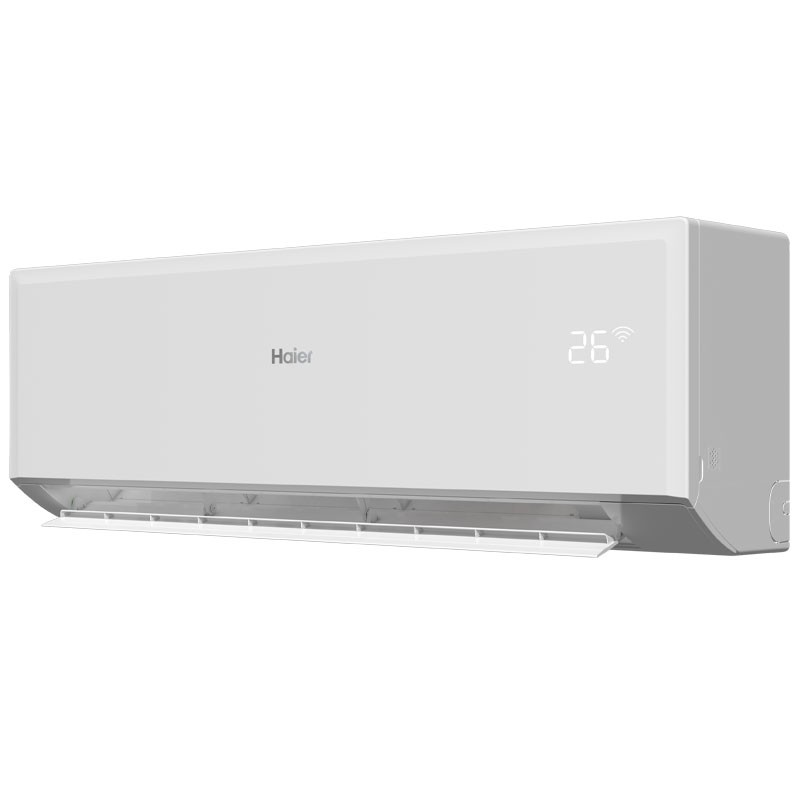

  • 1 Indoor unit (AS25RBAHRA-3 2501301BO)

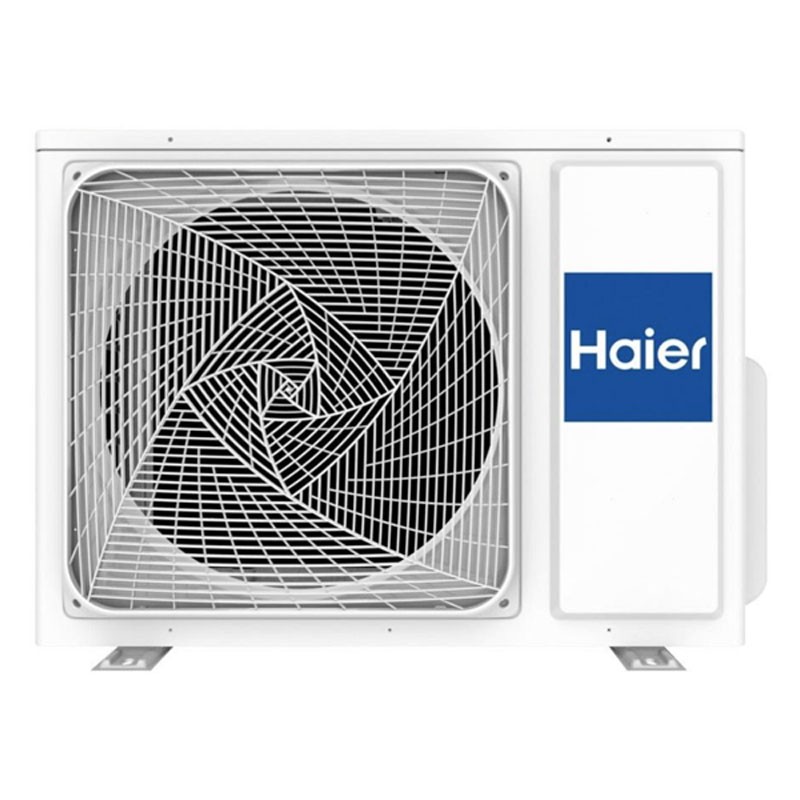

  • 1 Outdoor unit (1U25YESFRA-3 2502301BO)
  • 1 Remote control (YR-HE2)
  • 1 Mounting Kit.



Integrated Wi-Fi control to remotely control the air conditioner.


This model replaces The Geos and Geos Plus series.

  • wifi
  • r32
  • taga+v
  • taga++v
For a room of approximately 27m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
Do you have questions about this product or did you not find what you were looking for? Ask us!

The kit includes:

Haier Revive Air Conditioner 2.5KW 9000Btu A++/A+ R32 WIFI with Mounting KIT

€652.97
€633.38
€633.38

Haier Revive Air Conditioner 2.5KW 9000Btu A++/A+ R32 WIFI with Mounting KIT

Lowest price in 30 days:
€652.97
Save 3%
€633.38
Tax included
Free Shipping
Items Available: 126
Further availability of the manufacturer

Haier Revive Air Conditioner 2.5KW 9000Btu A++/A+ R32 WIFI with Mounting KIT

€633.38

Buy it within and receive it from Wednesday, 13 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Air conditioners of the same series

Frequently bought together

Self-Clean:

  • Self-Clean technology ensures that clean air leaves the evaporator as it performs the freezing of its surface and subsequent defrosting, two steps that allow accumulated dirt to be removed
  • Self-Clean technology freezes the moisture in the air on the exchanger. The ice formed retains all the impurities, dust and bacteria that had settled on the surfaces. The next stage of defrosting causes the ice, as it melts, to drag the impurities with it to the drain, leaving the exchanger clean and ensuring excellent outlet air quality. If the evaporator is not cleaned regularly, accumulated dirt reduces heat exchange by 15 to 30 percent and also promotes the growth of bacteria and mold.

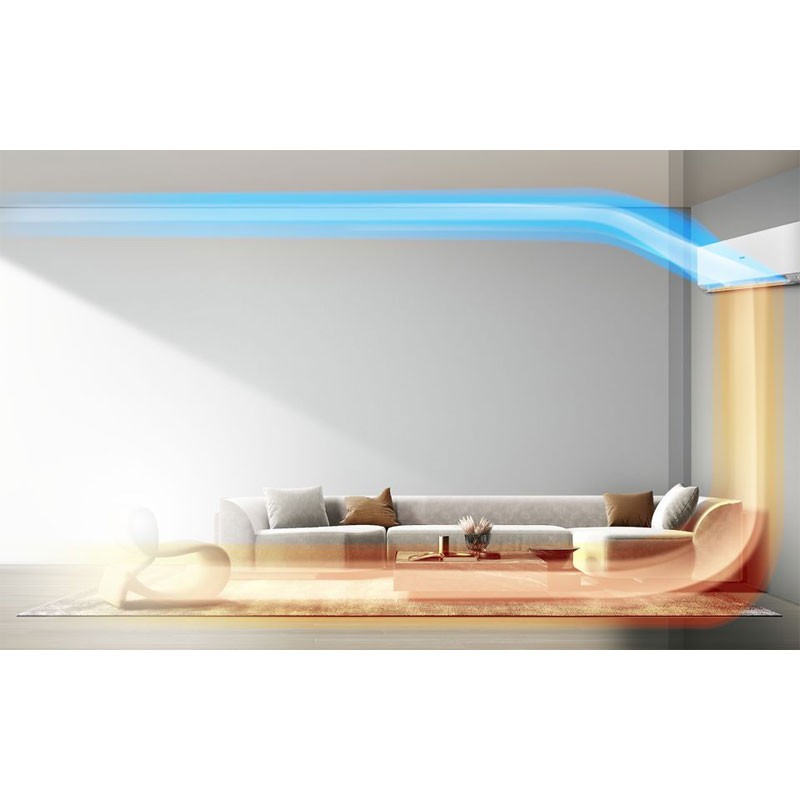

Coanda Air Flow:


  • The Coanda effect ensures that the flow of air leaving the air conditioner travels parallel to the ceiling, allowing comfortable air distribution throughout the room
  • Faster and stronger cooling: When the unit is working in cooling mode, the cool air travels parallel to the ceiling. This prevents a direct draft of cold air onto people. The air is also evenly directed from the ceiling to the floor of the room, providing greater comfort
  • Superior heating experience When the unit is operating in heating mode, warm air is directed directly to the floor and then circulates throughout the space or to ensure consistent temperature distribution in every corner of the room.



New Wi-Fi:

  • With Haier's "hOn" app, you can control all the Haier appliances in your Smart Home from your smartphone or tablet from a single app. In addition, through hOn, you can manage all basic functions, purification functions and more. The app allows the use of voice commands because it is compatible with Google Assistant and Alexa

  • The Wi-Fi module is already present in the air conditioner. In order to control the units via smartphone or tablet, it is necessary to download the hOn App available on the App Store, Google Play and Huawei AppGallery by searching for it by name or by scanning, from your smartphone, the QR Code shown here.



Sleep Function:

  • Night function of the air conditioner to ensure maximum comfort without wasting energy.
  • In heating mode, once the desired temperature is set, the temperature will be set 2°C lower during the first hour and another 2°C lower during the second hour. After 2 hours it will increase by 1°C and the temperature will remain constant for 6 hours before the unit is turned off.
  • In cooling mode, once the desired temperature is set, the temperature will be set 1°C higher during the first hour and then again 1°C higher during the second hour. After that, the temperature will remain constant for 6 hours before the unit is turned off.



Specifications:



Cooling:

  • Rated nominal capacity (min~max): kW 2.7 (0.7~3.4)
  • Rated input power: nom (min~max) kW 0.835 (0.3~1.2)
  • SEER 6.5
  • Energy class: A++
  • EER 3.23
  • Indicative annual energy consumption kW/a 145

Heating:

  • Rated capacity Min/Max: KW 2.9 (0.7~3.6)
  • Rated input power (min~max) 0.78 (0.3~1.4)
  • SCOP: 5.10
  • Seasonal energy efficiency class A+
  • COP 3.71
  • Indicative annual energy consumption: kWh/a 910

Indoor Unit Features:

  • Power supply Ph/V/Hz 1/220~240/50

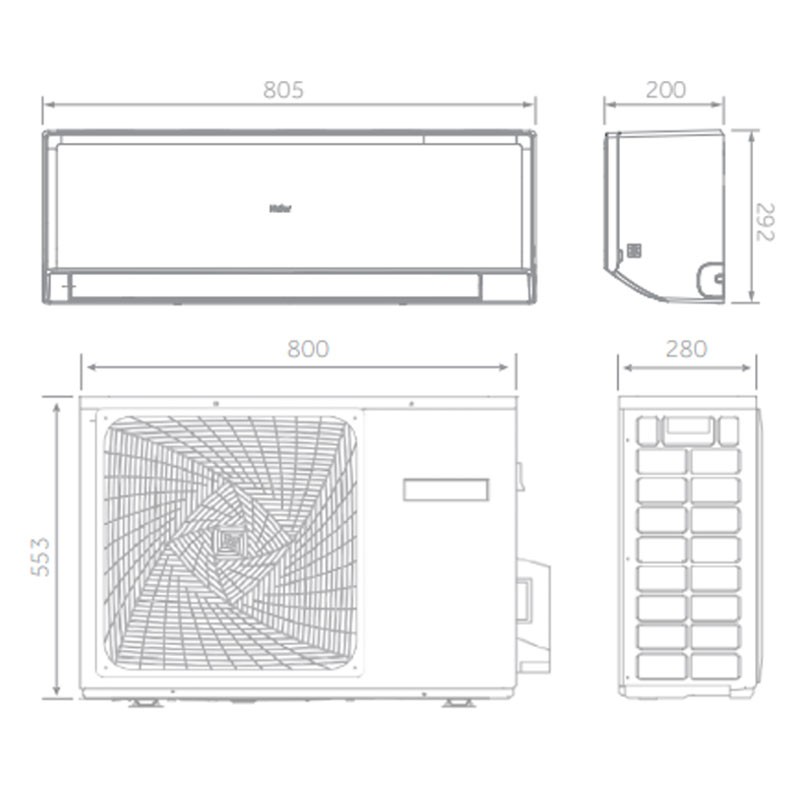

  • Dimensions: (WxDxH) 805x200x292mm
  • Weight 8.8Kg
  • Treated air cubic meters/h 550
  • Dehumidification capacity l/hr 1.2
  • Sound pressure level (Cooling/Heating) dBa 38/34/29/19 - 37/33/29/19
  • Sound Power Level Cooling/Heating dBA 57/57

Outdoor Unit Features:

  • Dimensions: (WxDxH) 700x245x544mm
  • Weight 21.5Kg
  • Current Consumption 6.4A max
  • Sound Pressure Level dBa 49
  • Sound Power Level dBA 62
  • Power supply Single-phase 220-240 / 50Hz
  • Compressor type Inverter single rotary
  • Compressor brand Rechi
  • Liquid/Gas piping 6.35 (1/4") - 9.52 (3/8")
  • Max/min piping length 20 meters
  • Max height difference between indoor/outdoor unit 10 meters
  • Refrigerant Type: R32 Gas
  • Unit equipped with tap covers
  • Piping length without adding refrigerant 5 meters
  • Refrigerant charge at factory 0.51 kg
  • Additional charge beyond standard length 20 g/m
  • Tons of CO2 equivalent 0.34
  • Operating temperatures in Cooling 21 - 35 degrees (in) / -20 - 43 degrees (out)
  • Operating temperatures in Heating 10 - 27 Degrees (in) / -20 - 24 Degrees (out)

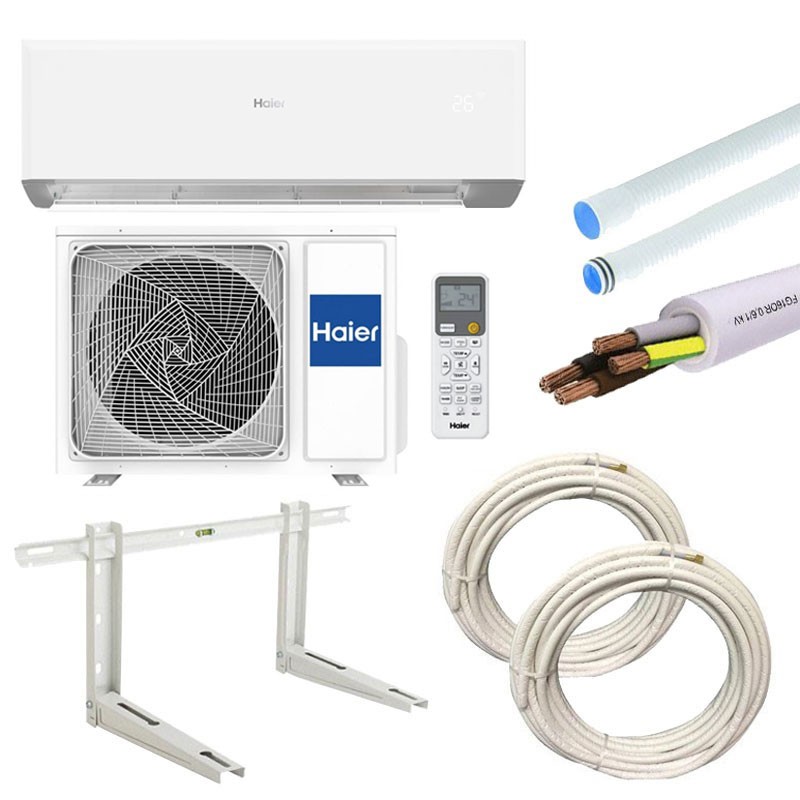

Product specifications in the Mounting Kit:





Wall brackets for 9000 and 12000btu air conditioners for outdoor unit:

  • Galvanized and powder coated steel brackets.
  • Brackets complete with quick-fit anti-vibration feet
  • Stainless steel hardware in KLIMA STRONG INOX and KLIMA TOP INOX SCREWS items.
  • KLIMA STRONG and KLIMA HEAVY for non-standard machines
  • KLIMA TOP shelf for maximum quality
  • KLIMA GROUND and KLIMA FOOT anti-vibration bases available for floor installations
  • White RAL 9002
  • Arm length L1 420 mm
  • Height 400 mm
  • Bracket thickness 15/10 mm
  • Crossbar length 780 mm



10 meters Double Insulated Flameproof Cable 5X1.5mmq



Arnocanali condensate hose D. 17-20mm 10 meters:

  • BIESTRUSO anti-crush corrugated hose. Manufactured with double layer of POLYPROPYLENE to ensure maximum safety in under-track use. Hose constructed from Polypropylene stabilized against UV rays. Operating temperature - 30°C + 75°c.



Tecnogas FAST PIPE kit consisting of:

  • 2 hoses of 6 meters one with female-female connections Diameter 1/4 (diameter 6.35) and one with female-female connections Diameter 3/8 (diameter 9.52) conical with copper gaskets included. Suitable for 9000/12000btu air conditioners.



Construction features of the compartment pipe:

  • Closed-cell expanded polyethylene
  • Polymer barrier
  • 4-layer aluminum film
  • long-chain polyamide
  • high-tenacity synthetic fiber
  • anti-Uv and anti-IR coating
  • anti-Uv film







Fittings: brass "Propeller": Calipers, Screwdrivers, Crimps.

Field of use F-gas refrigeration circuits containing R410A-R32-R134A-R404A-R407C

Operating temperatures -30°C/110°C (Max 130 C° non-continuous)

Maximum operating pressure 100 Bar

Matériel de qualité , correspondant à la description. Livraison rapide

Matériel de bonne qualité a voir dans le tant

Super bien servi recommanderais à mes amis fonctionnent très bien facile a installer

3 ème commande clim Haier et toujours satisfait par DHL Italie vers France. Je recommande vivement

Le climatiseur Haier et le kit du climatiseur est parfait et complet. Par contre pas de possibilité visiblement de mettre en position auto

Top livraison rapide et réponse rapide je recommande

Online bestellen is eenvoudig, de service is uitstekend, het product is snel te verkrijgen, de klantenservice is uitstekend, de kwaliteit is uitstekend Ik raad het de ander aan

Très bonne clim, juste une notice précise pour le câblage électrique serait parfait....

Facile à installer et conforme au descriptif.

J attends la mise en place, pour le moment tout est conforme

Read all reviews

Data sheet

KIT:
Monosplit with KIT
Air conditioners:
Monosplit
Gas:
R32
Power:
9000 BTU (2,5 Kw)
WIFI:
Integrated
Room Size:
27m²
Energy class:
A++
Series:
Revive
