Overview:

The new ThemaFast Condens range boasts exceptionally low consumption and is at the top of its category in terms of both sanitary comfort and efficiency, thanks in part to the exclusive Aquaspeed FAST® system for domestic hot water production.



The microaccumulation, renewed with its 3 liters of hot water always available thanks to the electrical resistance that keeps it at the desired temperature constantly, gives the customer a high level of sanitary comfort.

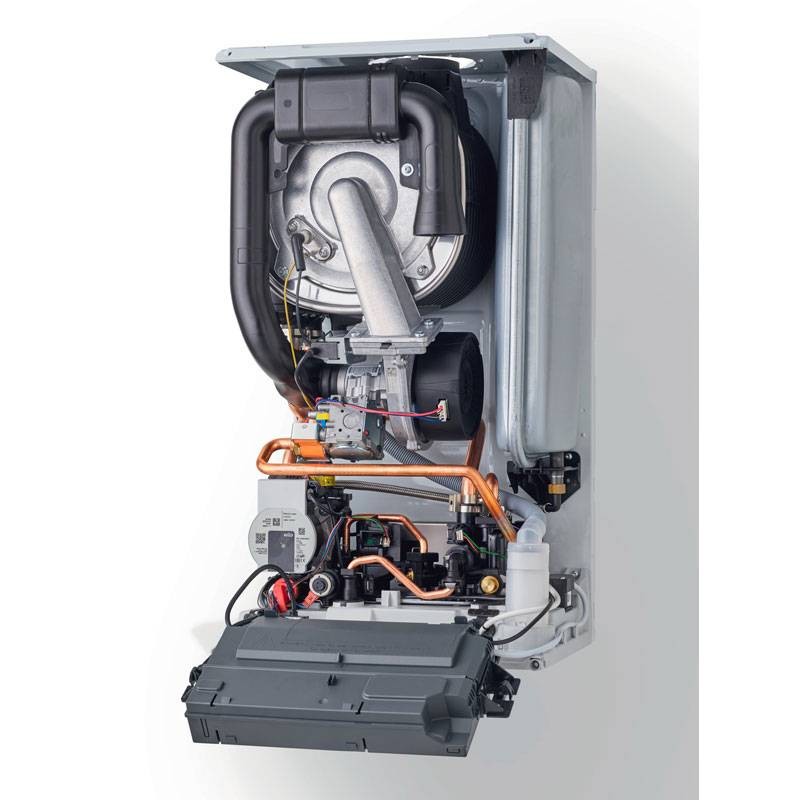

An internal and external revolution to be ready to enter the future of the boiler segment, ThemaFast Condens presents a new heart that beats thanks to the new FlameFit combustion system that ensures self-adaptation to different supply gases allows the boiler to be used with a gas mixture containing up to 20 percent hydrogen.



Combined with the ADA technology of balancing feed gas pressures it provides the most correct air/gas mix needed in order to achieve the best possible combustion. Guaranteed modulation values can cover up to 1:9.



These new product features, in parallel with an evolution of the electronics, allow the boiler to fully adapt to the actual demands of the heating system, also allowing a reduction in gas and power consumption.



• 4-star energy rating (92/42/EEC) with efficiencies up to 109.5%, etas efficiency at 94%, 3-star sanitary comfort (EN 13203-1), thanks to the exclusive Aquaspeed FAST® technology with stainless steel plate sanitary exchanger and integrated micro storage that allows immediate hot water supply thanks to the available reserve
• Solar Easy: All models in the ThemaFast Condens range are compatible with all solar systems. If solar radiation is not sufficient to maintain domestic water at the desired temperature, the boiler intervenes to supplement it

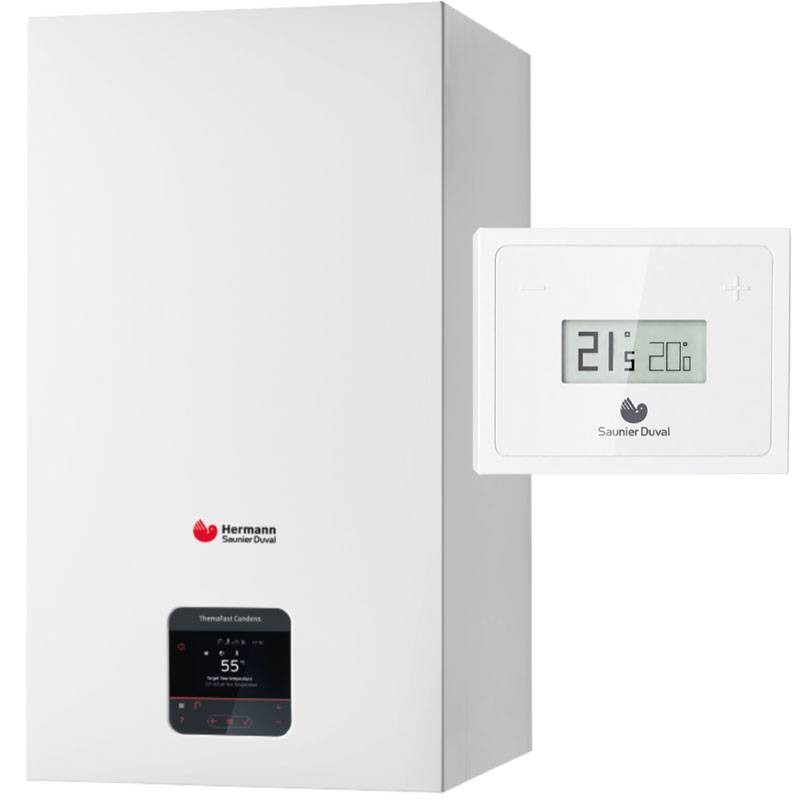

• A version including MiGo, the Wi-Fi modulating climate control unit that enables remote control and regulation of boiler functions, is also available for all ThemaFast Condens models



Elegant design and touch-screen interface:

• The new version of ThemaFast Condens features an elegant and detail-oriented design. The touch-screen user interface, with new talking messages, facilitates management of the operating menu and allows for easier interaction between the boiler and the user.



General technical data:

• Gas category II2H3P
• CE-PIN CE0063DL3988
• Gas connection G 1/2 inch
• Heating connections G 3/4 inch
• Cold water/ACS connections on appliance side G 3/4 inch
• Safety valve connection 15 mm
• Condensate drain hose 21.5 mm
• Connection to an air/flue system 60/100 mm
• G20 natural gas connection pressure 2 kPa (20 mbar)
• Inlet gas flow rate (max. amount of gas) at 15 °C and 1,013 mbar (possibly referring to domestic hot water production), G20 2.75 m³/h
• Inlet gas flow rate at 15 °C and 1013 mbar (referred to heating mode), G20 2.16 m³/h
• Flue gas temperature min. 41 ?
• Flue gas temperature max. 95 ?
• Permitted installation types C13, C33, C43, C53, C63, C83,C93, B23P
• NOx class 6
• Weighted NOx emissions (Hs) 38.43 mg/kWh
• Weight (without packaging, without water) 29.8 kg



Technical data power/load G20:

• Rated heat output range at 50/30 °C 3.3 21.7 kW
• Rated heat output range at 80/60 °C 2.9 20.0 kW
• Nominal heat output range 20.4 kW
• Min. heat output 3.1 kW
• Min. flue gas flow rate 1.5 g/s
• Flue gas flow rate max. 13.9 g/s
• Rated domestic hot water heat output 26.0 kW
• Rated domestic hot water heat output 25.7 kW
• Range of nominal heating heat output 3.1 20.4 kW



Heating technical data:

• Max. 75
• Flow temperature control range (factory setting: 75 °C) -15/+80
• Max. operating pressure, heating 0.3 MPa (3.0 bar)
• Nominal water flow rate (?T = 20 K) 861 l/h
• Approximate condensate volume 3.31 l/h
• Residual head for nominal water flow rate 0.033 MPa (0.330 bar)
• Heating expansion tank content 8 l
• Precharge pressure of the hot water expansion tank 0.75 bar



DHW mode technical data:

• Minimum water flow rate 1.5 l/min
• Specific flow rate D (?T = 30 K) 12.3 l/min
• Allowable operating pressure 0.03 1 MPa (0.30 10 bar)
• Required connection pressure 0.2 MPa (2.0 bar)
• Domestic hot water supply temperature range 35 60 ?
• Flow rate limiter 8 l/min



Electrical system technical data:

• Rated voltage / Frequency 230 V / 50 Hz
• Permissible connection voltage range 190 253 V
• Fuse 4A
• Max. electrical power input for heating mode 75 W
• Max. electrical power input for domestic hot water mode 88 W
• Standby electric power consumption 2 W
• Type of protection IP X5 D



Connections:

• Gas connection G 1/2 inch
• Heating connections G 3/4 inch
• Cold water/ACS connections on appliance side G 3/4 inch
• Safety valve connection 15 mm
• Condensate drain hose 21.5 mm
• Connection to an air/flue system 60/100 mm



Wi-Fi eBus modulating climate control unit:

• Optimize the consumption of your condensing boiler
• Adjust the temperature you prefer while achieving maximum efficiency
• Manage settings from one or more smartphones, allistantly and wherever you are.

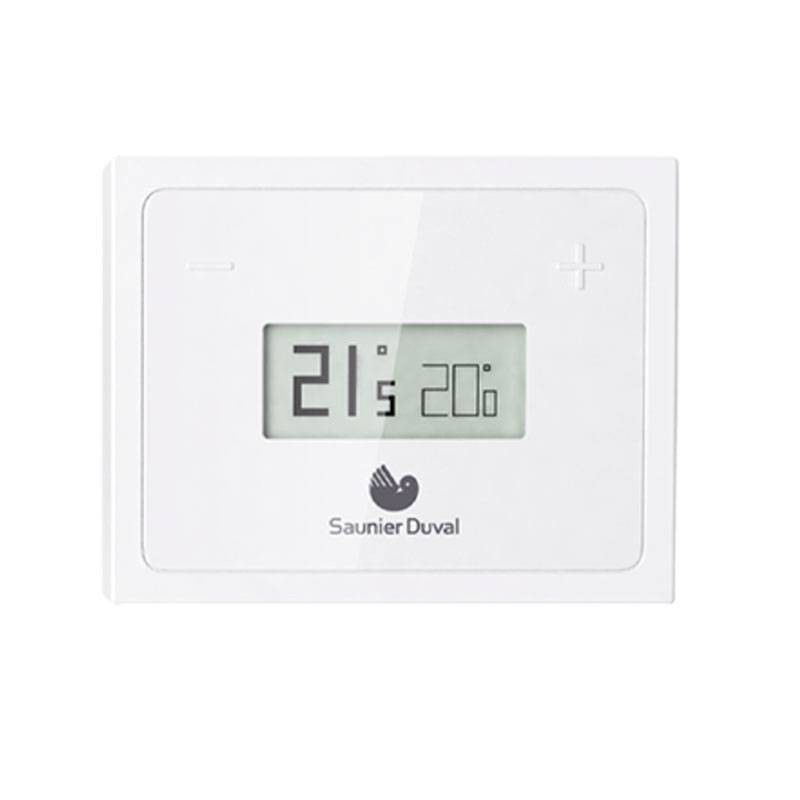

MiGo is Hermann Saunier Duval's Wi-Fi modulating climate control unit that allows you to remotely control your heating system via App directly from your smartphone or tablet. Using your home WiFi internet connection, you will be able to control and regulate the comfort of your home from anywhere. Download the free MiGo App onApp Store (iOS systems) or Google Play (Android systems). Using the MiGo App is easy, fast and intuitive.



MiGo turns your smartphone or tablet into a remote control system for your heating system:

• Wherever you are and whatever you are doing, you can control and regulate the comfort of your home quickly and extremely intuitively by taking advantage of your wi-fi network. The benefits of MiGo are not limited to convenience. By using MiGo you drastically reduce the start/stop cycles of your boiler thus allowing you to save on gas and electricity and extend the life of your appliance.



Your personal assistant:

• MiGo is an attentive and precise companion! In fact, it allows the reception of 5 different warning messages: generic boiler error, low boiler water pressure, bus communication error, insufficient battery charge level, no internet connection for more than 24 hours, need for maintenance when the hours set in the boiler meter expire.



Maximum efficiency of your heating system:

• MiGo is smart! MiGo's self-learning function allows you to check the historical data of temperature, mode and hours of operation of your system and its features, adjusting it efficiently thanks also to the detection of outdoor temperature data from the internet.
• With MiGo you will be able to quickly set the Out of Home or Antifreeze function
