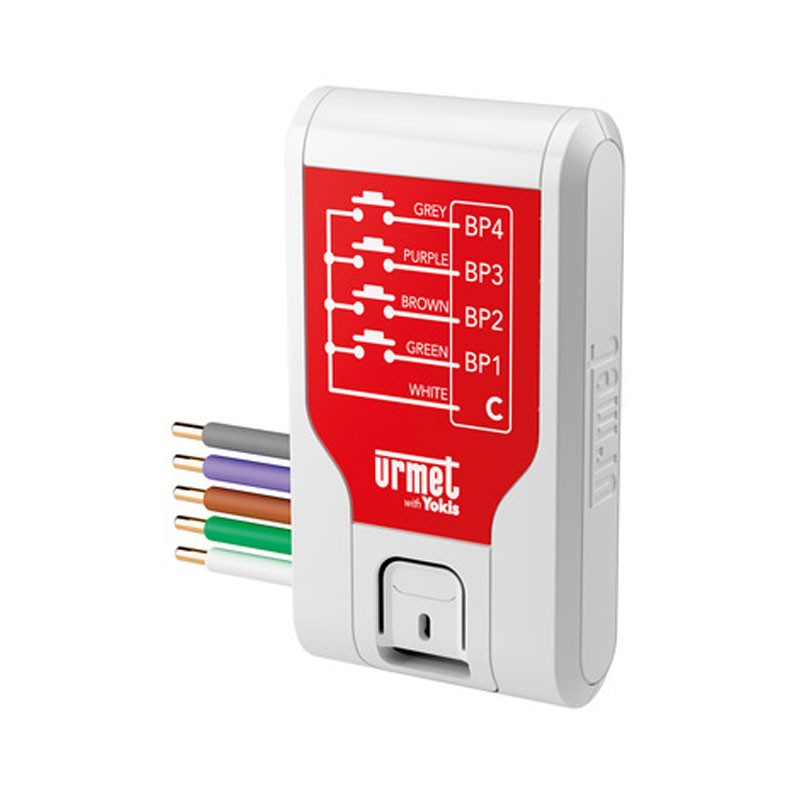

Urmet E4BP-UP 4-Channel Built-in Transmitter 4820391


UTD 4820391 8021156076772

Urmet E4BP-UP 4-channel independent transmitter, Yokis UP Zigbee system, flush-mounted installation, capable of driving all types of receivers in the Yokis UP range (relays, dimmers, shutter modules) and can handle not only direct commands, but also centralization commands and scenario activation.

Do you have questions about this product or did you not find what you were looking for? Ask us!

Urmet E4BP-UP 4-Channel Built-in Transmitter 4820391

€41.50
€41.50

Urmet E4BP-UP 4-Channel Built-in Transmitter 4820391

€41.50
Tax included

Urmet E4BP-UP 4-Channel Built-in Transmitter 4820391

€41.50

Buy it within and receive it from Wednesday, 18 December
Two-year warranty
Easy return within 14 days

Advantages:

  • Thanks to Zigbee radio technology, it is also possible to transmit commands to modules that cannot be directly reached by the transmitter, taking advantage of the repetition of the command by the actuator modules on the radio bus, and to transmit commands to groupings of modules of different types (relays, dimmers, shutter actuators, etc.).
  • It can be installed with any civil series on the market and can be placed on the bottom of the flush-mounted box or on junction boxes
  • It is easy to configure: either by the installer, via directly connected button or from the UP2Pro App, or by the user, from the YnO UP App
  • It is possible to duplicate transmitters by copying the settings of the first one on the next ones, without intervening on the receiver modules
  • Can be operated by push button, switch (if receivers are radio step relay modules) or by a potential-free contact
  • The transmitter is powered by a standard CR2032 battery (average battery life greater than 5 years).



Features:

  • Power supply: battery; CR2032 lithium type
  • Battery life: >7 years
  • Available channels: 4
  • Number of receivers/channel: 4 in direct mode; unlimited in centralized/scenario mode
  • Range: 250m in unobstructed field of view. Range reduction in the presence of metal elements, crossing walls or bulkheads
  • Radio protocol: Zigbee
  • Frequency: 2.4 GHz
  • Transmission: bidirectional with notification LED on transmitter
  • Operating temperature: - 10°C to +50°C
  • Relative humidity: maximum 70%
  • Protection: IP54
  • Dimensions (WxHxD): 25 x 45.3 x 10.2 mm.

Data sheet

Type:
Radio Modules
