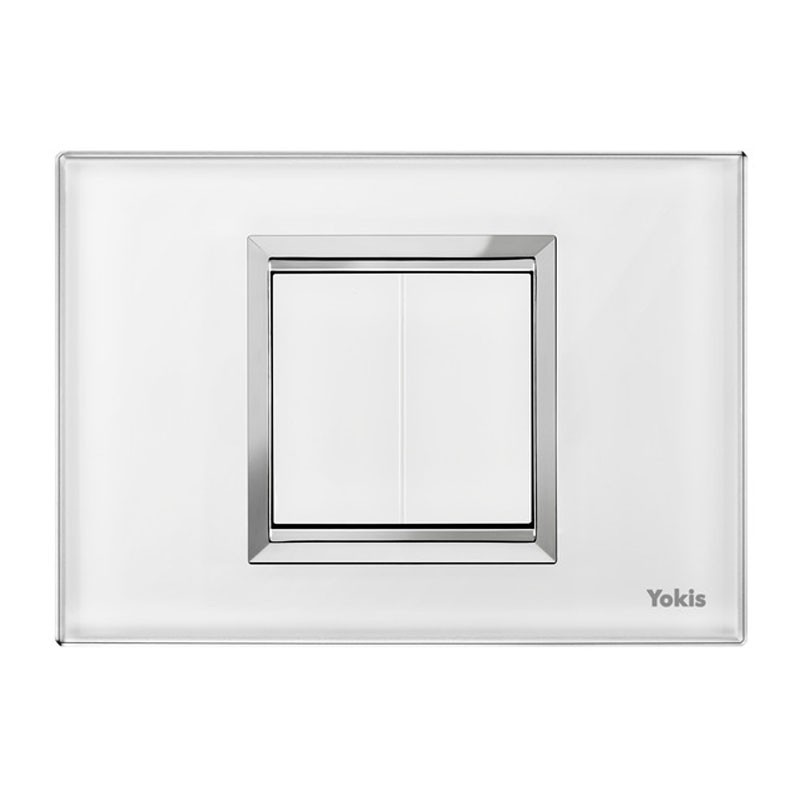

Urmet TLM2T503-UP flush mount 2-button radio transmitter 4820402
UTD 4820402
8021156076888
Urmet TLM2T503-UP flush-mounted 2-button independent radio transmitter capable of driving all types of Yokis radio receivers (relays, dimmers, shutter modules) and third-party lighting devices based on Zigbee 3.0 protocol.
Urmet TLM2T503-UP flush mount 2-button radio transmitter 4820402
€68.63
€68.63
Tax included
Tax included
Items Available: 31
: 5
Frequently bought together
Advantages:
- Through such a remote control it is possible to manage, in addition to direct commands, centralization and scenario activation commands
- Thanks to the Zigbee radio protocol, it is also possible to transmit commands to modules that are not directly reachable by the transmitter, taking advantage of the repetition of the command by the actuator modules present, and to transmit commands to groupings of modules of different types (relays, dimmers, shutter actuators, etc.)
- It is easy to configure: either by the installer, via the device button or the UP2Pro App, or by the user, from the YnO UP App
- It is possible to duplicate transmitters by copying the settings of the first one to the next ones, without intervening on the receiver modules.
TLM2T530 is made on Simon Urmet Nea Expi aesthetics in white plastic, compatible with 3-module flush-mount boxes (503 flush-mount box holder included), but can be installed on any flat surface using the included double-sided adhesive tape.
The transmitter is powered by a standard CR2032 battery (average battery life greater than 5 years).
Features:
- Range: in the same room < 100 m2; 250 m in unobstructed field of view (range reduction when metal elements, crossing walls or bulkheads are present)
- Radio protocol: Zigbee
- Frequency: 2.4 GHz
- Transmission: two-way with notification LED on transmitter
- Battery: CR2032 lithium type
- Average battery life: 5 years (Battery replacement is done by opening the case with a slotted screwdriver). Data are retained
- Number of receivers/channel: 4 in direct mode; unlimited in centralized/scenario mode
- Operating temperature -10°C +50°C
- IP54 protection
- Maximum relative humidity 70%
- Dimensions (H x W x D) 88 x 123 x 8.5 mm.
