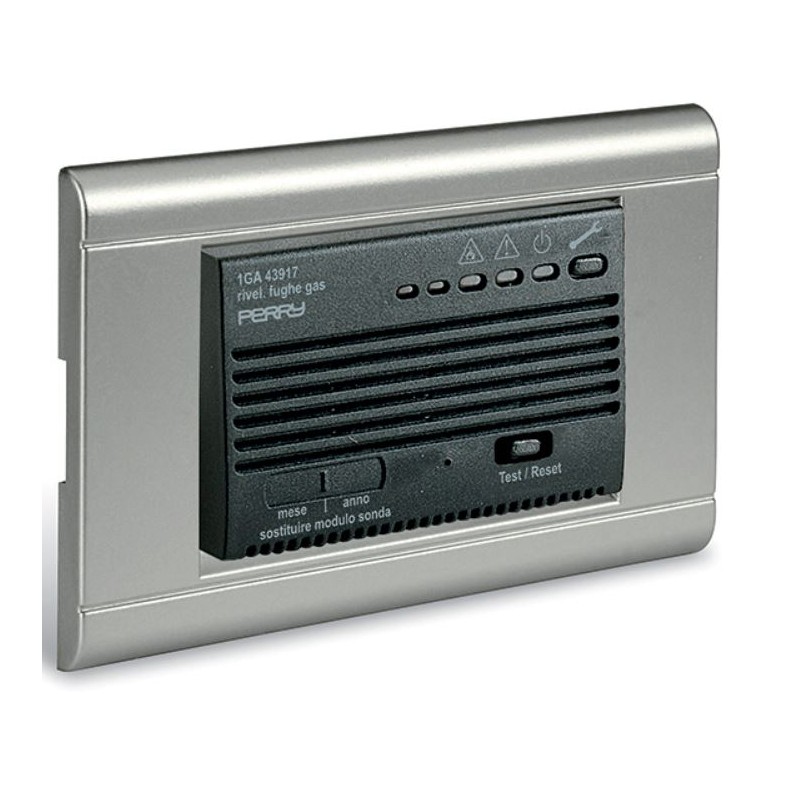

Perry LPG gas detector for 503 modules 230V 1GA43917LPG

Brand: Perry

Code: PER 1GA43917GPL EAN:

Perry LPG GAS detector mounted on 503 box, with replaceable probe module, with the following features:

Supply voltage: 230 V~ +/- 10% 50 Hz
Relay for solenoid valve control: 1 potential-free changeover contact
Relay contact rating (max): 6 (2) A / 250 V
Degree of protection: IP40 Insulation type: Class II
Application area: Domestic - type A
Semiconductor sensor: Installed inside the probe module
Operating temperature limits: - 10/+ 40 °C
Operating humidity: 90% RH (maximum)
Types of gas detected: LPG - With LPG gas model
Alarm intervention: 10% LEL (Lower Explosive Limit) for both models
Acoustic signal: 85 dB at 1 m
Sensor warm-up time at switch-on: 1 minute
Storage temperature limits: -15/+50°C
Reference standards for CE marking LVD - EMC EN 50270

Istructions 1GA43917GPL IT

Perry LPG gas detector for 503 modules 230V 1GA43917LPG

€90.85

Perry LPG gas detector for 503 modules 230V 1GA43917LPG

€90.85
Tax included

Items Available: 11

: 3

Further availability of the manufacturer

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

This 3-module flush-mounted detector, compatible with the most popular civil series, helps to ensure the safety of civil environments where domestic gas appliances such as boilers, cookers, boilers are installed.

The device is composed of a fixed power supply/relay module and a removable probe module, which must be replaced after 5 years of continuous use; this allows savings in purchase and installation costs, with a lower impact on the environment due to the extension of the life of the power supply/relay module by another 5 years.

Main technical innovations:

Devices equipped with a microprocessor control circuit with self-diagnostic tasks that ensures perfect sensor efficiency over time
Sensor fitted with a special selective filter to avoid alarms due to the presence of undetectable gas vapours, such as cooking vapours, cleaning liquid vapours, etc.
Devices equipped with an operating time counter to signal the necessary replacement of the probe module after 5 years of use
Luminous (red LED) and acoustic alarm signalling
TEST system (to check the correct functioning of the device) and Reset with a single button
Gas detectors are equipped with an output relay that can control a valve to shut off the gas supply

Installation instructions:

Install the detector for . LPG gas 30 cm max. above floor level
Install detectors 1 m to 4 m from gas appliances
Do not install detectors outdoors and in places exposed to the weather
Do not install detectors near: sinks, air intakes, heating and air conditioning devices, windows and ventilation devices; furthermore, detectors should not be installed in enclosed spaces such as behind a curtain or inside a cupboard
