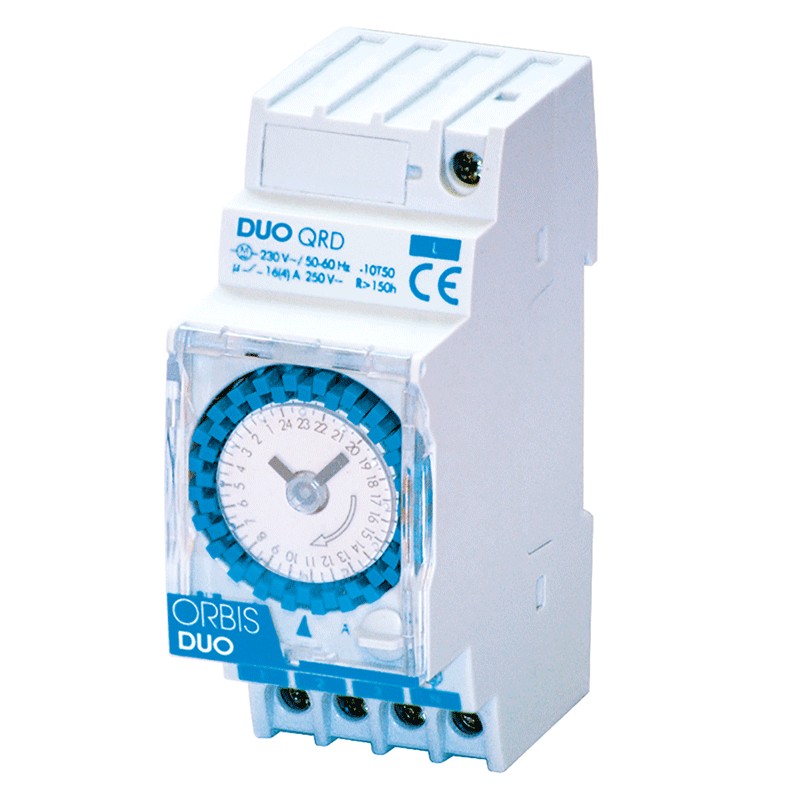

Orbis DUO QRD time switch with cable gears 2 modules OB292032
ORB OB292032
8426709108953
Electromechanical time/date switch Orbis DUO QRD, with the following features:
- Supply voltage 230V
- Rated frequency: 50-60 Hz
- Contact rating: 16 (4) A / 250 V AC
- 2 DIN modules
- With 150-hour reserve (after 96 hours of uninterrupted charging)
- Self-consumption: 0.5W
- No. of Riders: 48
Orbis DUO QRD time switch with cable gears 2 modules OB292032
€34.34
€34.34
Tax included
Tax included
Items Available: 72
: 20
Modular electromechanical time switch with 35 mm DIN rail mounting according to EN 60715, which allows to control an electrical load by means of daily programming.
- Potential free contact
- Sealable transparent cover
- Automatic-manual selector switch
Characteristics:
- Orbis series
- Power supply voltage (V) 230
- Rated frequency (Hz): 50-60
- Autonomy (h): 150
- Contact rating at 250 VAC (A): 16 (4)
- Contact type in exchange
- Minimum tripping time (min) 30
- N° Riders 48
- Absorption (W): 0,5
- Maximum capacity Incandescent lamp (W): 3000
- Maximum output Fluorescent lamp (VA): 1200
- Maximum capacity Halogen 12 V (VA): 2000
- Maximum capacity Halogen 230 V (W): 3000
- Maximum capacity Energy saving lamp (VA): 900
- Maximum capacity LED lamp (VA): 1000
- Operating temperature (°C): -10÷+50
- Degree of protection IP20

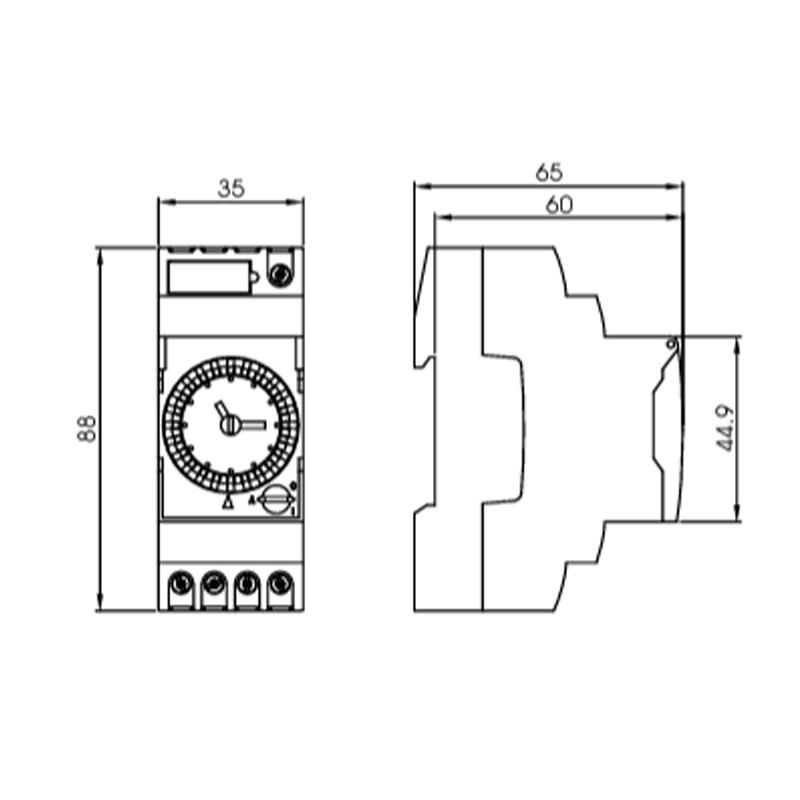

- External dimensions BxHxP (mm): 35x88x65
Data sheet
- Type:
- Time Switches
- Model:
- Daily
- Installation:
- Din
