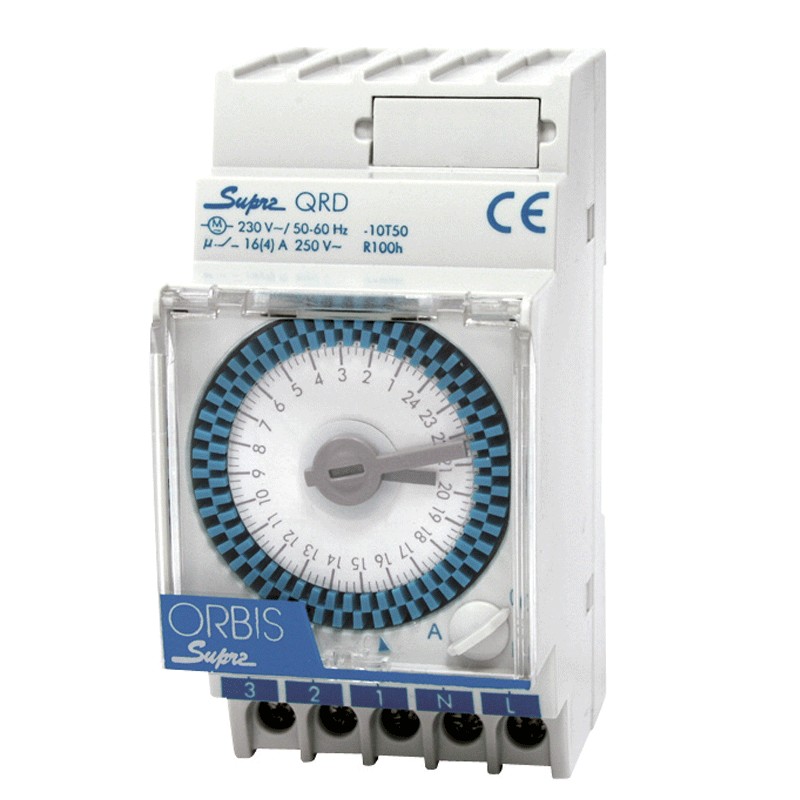

Orbis SUPRA QRD time switch with cable gears 2.5 modules OB290232N
ORB OB290232N
8426709106485
Electromechanical time/date switch Orbis SUPRA QRD, with the following features:
- 230V power supply
- Rated frequency: 50-60 Hz
- Contact rating: 16 (4) A / 250 V AC
- 2.5 DIN modules
- With 150-hour reserve (after 48 hours of uninterrupted charging)
- Self-consumption: 0.5W
- No. of Riders: 48
Orbis SUPRA QRD time switch with cable gears 2.5 modules OB290232N
€42.24
€42.24
Tax included
Tax included
Items Available: 20
: 5
Modular electromechanical time switch incorporating the most advanced quartz technology.
The hours are displayed by means of hands, which allow an accurate time reading like a conventional watch, on a dial equipped with captive pegs.
Built to be installed on the wall or on 35 mm DIN rail according to EN 60715.
Features:
- Orbis Series
- Operating accuracy: ± 1 sec/day at 22 °C
- Contact type: In exchange
- Manual switch: OFF-Automatic-ON
- Operating temperature: -10 °C to +50 °C
- Protection class: II according to EN 60335 in correct mounting conditions
- Type of protection: IP20 according to EN 60529
- Installation: On 35 mm din rail according to EN 60715
- Minimum intervention time: 15 minutes
Maximum loads:
- Incandescence: 3000 W
- Fluorescence: 1200VA
- Halogen low voltage: 2000 VA
- Halogen 230 V AC: 3000 W
- Low consumption lamps: 1000 VA
- LED: 200 VA
- Dimensions: depth 66 mm - width 52.5 mm - height 88 mm
There are no reviews
Data sheet
- Type:
- Time Switches
- Model:
- Daily
- Installation:
- Din
