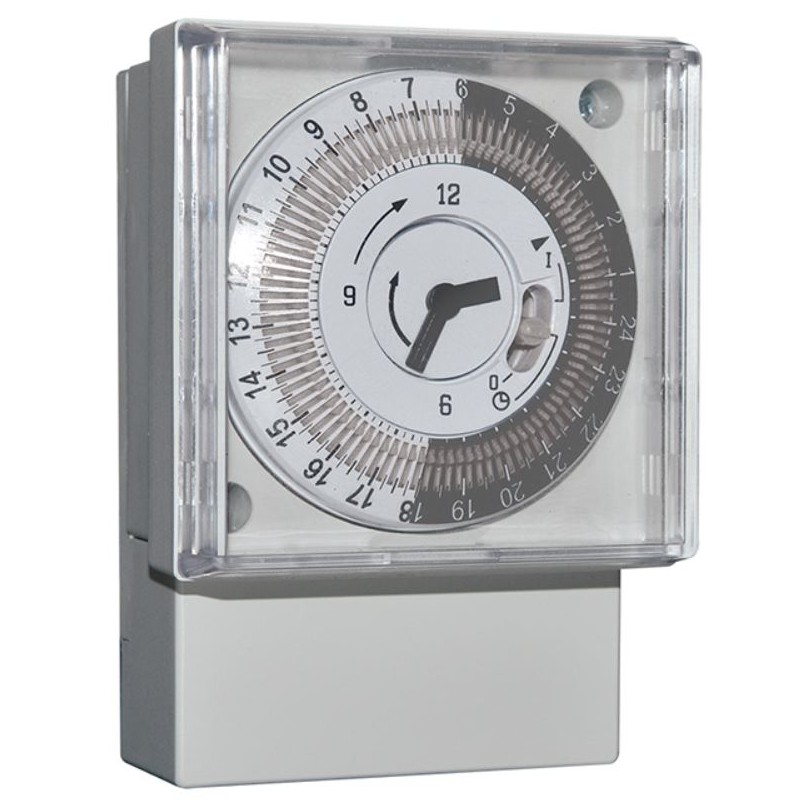

Perry daily time switch wall mounting and Din 1IO0018
PER 1IO0018
8019108031481
Perry daily time switch with riders, with the following features:
- With power reserve 72x72
- With possibility of mounting both DIN and wall mounting
- Power supply voltage: 230V a.c. 50 - 60Hz
- Contacts rated data: 16(2) A / 250V AC
- Max switching power: 3500 VA
Perry daily time switch wall mounting and Din 1IO0018
€29.18
€29.18
Tax included
Tax included
Items Available: 1
Features:
- Perry Series
- Max. number of programs (ON-OFF): 96
- Minimum insertion time (ON-OFF): 15 minutes
- Displays: mechanical knights crown
- Max switching power: 3500 VA
- Max section of cables to terminals: 2,5 mmq
- Degree of protection IP30
- Output type: captive screw terminals
- Insulation class: II
- Power reserve: 100 hours ±15%
- Type of reserve: NiCd rechargeable battery
- Time tolerance: ± 1 sec/day
- Operating temperature limits: -10°C +50°C
- Storage temperature: -10°C +50°C
- Installation type: DIN rail / wall mounted
- Enclosure: thermoplastic - grey RAL 7035
- Use type: civil / tertiary / industrial
- On board controls: mechanical crown wheel - selector switch: fixed ON / timer position / fixed OFF
- Clock indication: only on daily models
- Clock setting precision: mechanical with reference index
- Programming: mechanical key crown (15'/ 120' blocks)

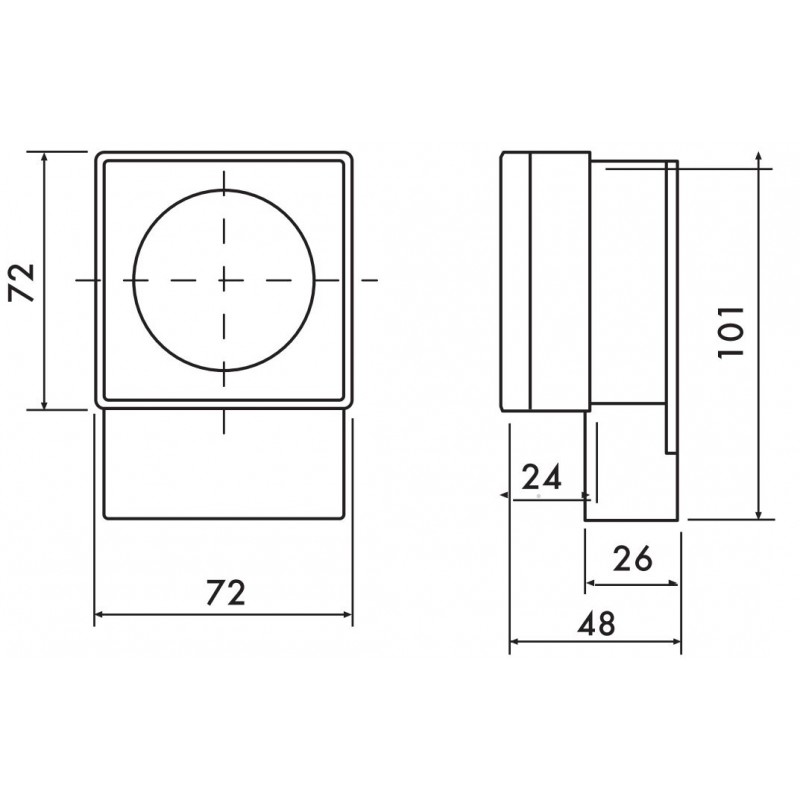

- Dimensions (WxDxH): 72 x 48 x 101 mm
Tutto ok sul prodotto acquistato. Facile e intuitivo da programmare.
Assolutamente consigliatissimo e più che raccomandato.
Fà egregiamente il suo lavoro facile da capire
Data sheet
- Type:
- Time Switches
- Model:
- Daily
- Installation:
- Wall-mounted
