Perry weekly time switch 1NO 1IO3091
PER 1IO3091
8019108031221
Perry 1-channel menu-driven time/weekly/annual switch with the following characteristics:
- Supply voltage 230V AC 50/60 Hz
- NO contact with limited current ZERO CROSSING 16(10) A / 250V ac
- Switching capacity max. 3500 VA (per single contact)
- 2 DIN modules
- LCD display 1" 1/3 backlit

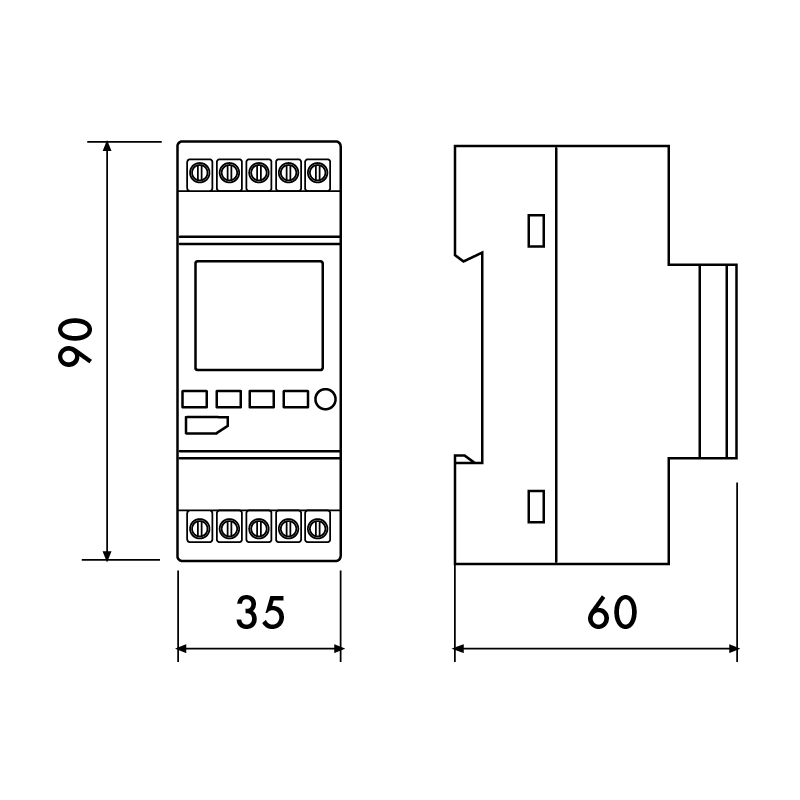

- Dimensions (WxDxH) 35 x 60 x 90 mm
Perry weekly time switch 1NO 1IO3091
€55.07
€55.07
Tax included
Tax included
Items Available: 49
: 24
Features:
- Perry Series
- Max number of programs (ON-OFF) 64 (can be coupled in blocks of days)
- Minimum ON-OFF time 1 second
- Max section of cables to terminals 6 mmq
- Degree of protection IP20 - IP40 (rear panel)
- Output type captive screw terminals
- Insulation class II
- ON / OFF relay signalling on LCD display
- Power reserve 6 years
- Type of battery reserve LITHIUM
- Time tolerance + - 0.5 sec/day
- Operating temperature limits 0°C +50°C
- Storage temperature -10°C +65°C
- DIN rail / back box installation type
- Thermoplastic casing - grey RAL 7035
- Type of use civil / tertiary / industrial
- On-board controls multifunction keys (menu programming) confirmation key
- Digital clock setting precision for hours / minutes
- Automatic daylight saving time change
- Menu programming - programs protected in EEPROM
LP powers - Power: LP incandescent 2300 W
- Power: LP uncompensated fluorescent tubes 1000 W
- Power: LP parallel-compensated fluorescent tubes 500W (total capacity 70 microF)
- Power: LP compact fluorescent tubes 600W
There are no reviews
Data sheet
- Type:
- Time Switches
- Version:
- Digital
- Model:
- Weekly
- Installation:
- Din
