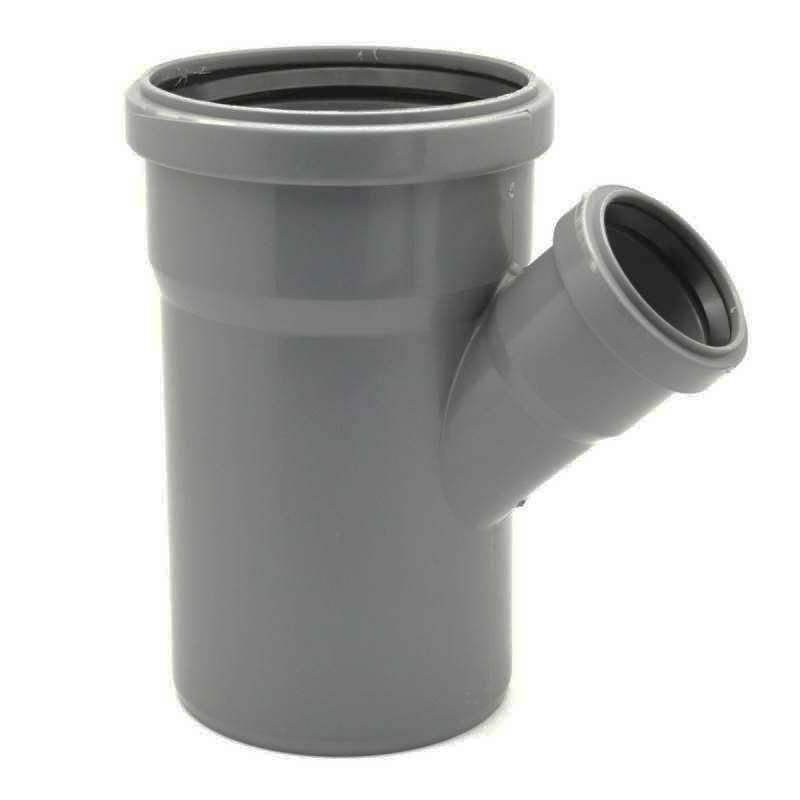

Reduced 45-degree PP Valsir PP3 Waste Water Connection D 125/50 mm VS0510043
VAL VS0510043
8023857034358
Reduced 45-degree Waste Water Connection for Valsir PP Polypropylene PP3 plug-in soundproofing drainpipes with the following characteristics:
- Diameter 1: 125 mm
- Diameter 2: 50 mm
- Rated diameter 1: 125 mm
- Rated diameter 2: 50 mm

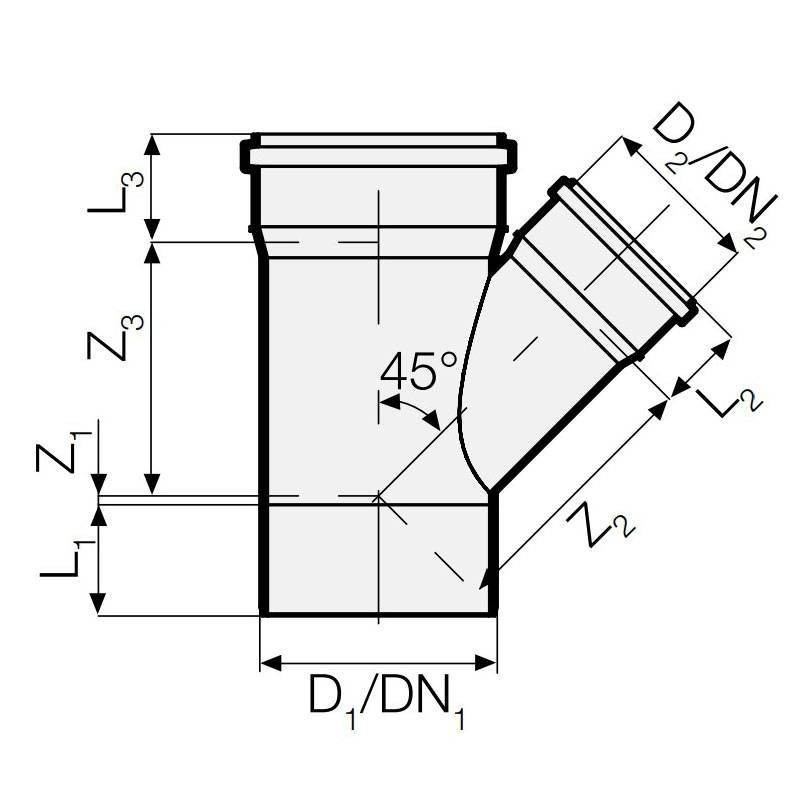

- Dimensions: 24x114x99x80x54x72 (Z1-Z2-Z3-L1-L2-L3)
- Weight: 388 grams
Valsir PP3 is the drainage system consisting of pipes, fittings and accessories for the construction of drainage and pluvial drainage systems.
Reduced 45-degree PP Valsir PP3 Waste Water Connection D 125/50 mm VS0510043
€12.97
€12.97
Tax included
Tax included
Items Available: 39
: 32
PP3 is the drainage system consisting of triple-layer pipes, fittings and accessories for the construction of drainage, ventilation and pluvial drainage systems. And a system characterized by extreme lightness and speed of installation; thanks to its acoustic performance of 17 dB(A) at a flow rate of 2 liters/second, it is the ideal solution for residential buildings where, for example, drain pipes are laid inside the concrete casting and also used for the ventilation network.
Valsir PP3 is an extremely lightweight system and, thanks to the plug-in socket with a hydraulic seal, is the simplest solution for the construction of drainage systems.
Valsir PP3 is manufactured in accordance with EN 1451 standards and can be used for low- and high-temperature drainage systems, drainage network ventilation systems and for downspouts inside civil and industrial buildings, hospitals and hotels.
The wide range of pipes, fittings and accessories makes it possible to realize the entire drainage network, from sanitary appliance branches, to risers, to the drainage manifold.
Advantages:
- Excellent soundproofing performance of the system: with a flow rate of 2l/s noise levels, according to EN 14366, of 6 dBA have been detected
- Material characterized by high resistance at low temperatures
- Speed and extreme ease of installation without special equipment, thanks to the plug-in connection
- Resistance to discontinuous discharges with temperatures up to 95 degrees
- High chemical resistance to dissolved substances in civil and industrial drains
- Ease of connection with other drainage systems (cast iron, PP, PVC)
- Low coefficient of thermal expansion
- Socket connection requires no additional use of harmful glues or solvents
- The product, its recyclability and the manufacturing processes used are based on Green Building principles
There are no reviews
Data sheet
- Diameter:
-
50mm
125mm - Type:
- Plug-in Waste Water Connections
- Model:
- Soundproofing
