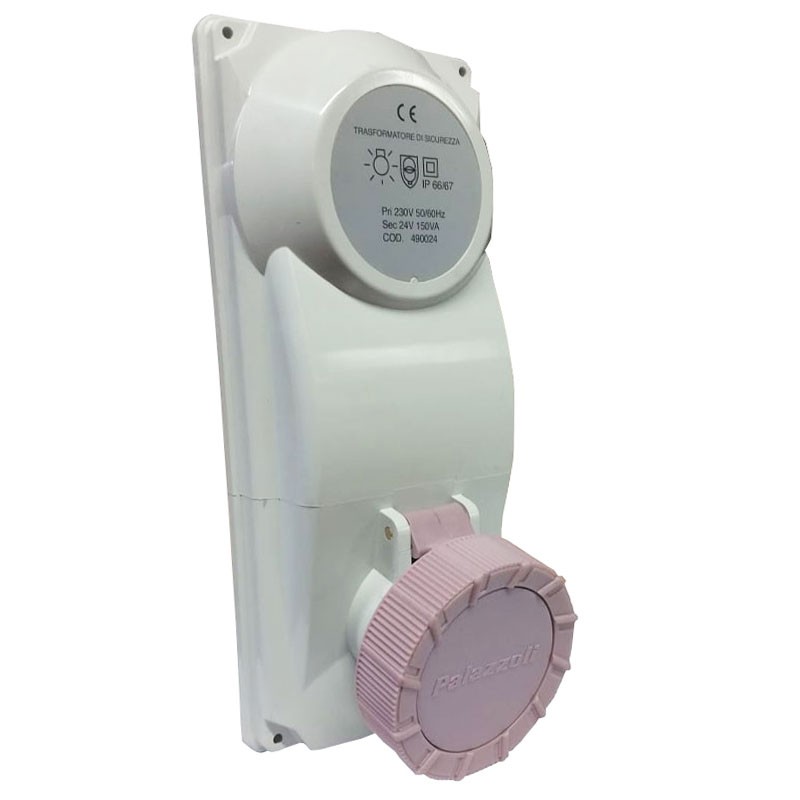

CEE Palazzoli 2P+16A 24V IP67 interlocked industrial socket with transformer

Palazzoli
PAL 490024 8014950037223

Palazzoli CEE Interlocked Industrial Socket, with the following characteristics:

  • Rated voltage: 230/24V~
  • Rated insulation voltage: 690V
  • 2 poles
  • Nominal current 16A
  • Frequency 50/60Hz
  • Power 150VA
  • With SELV safety transformer
  • Complete with thermal protection for panel installation
  • Degree of protection IP66/IP67
Do you have questions about this product or did you not find what you were looking for? Ask us!
CEE Palazzoli 2P+16A 24V IP67 interlocked industrial socket with transformer
€151.67
€151.67

€151.67
Tax included
Items Available: 4
Further availability of the manufacturer
€151.67

Buy it within and receive it from Tuesday, 11 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Features:

  • Palazzoli Series
  • Storage ambient temperature: MIN -30°C - MAX +70°C
  • Ambient temperature: MIN -25°C - MAX +50°C
  • Max conductor section 4 mm²
  • Terminals type: indirect clamping
  • Shock resistance IK08 according to IEC/EN 62262
  • Color: gray RAL 7035
  • Body material: thermoplastic
  • Execution: panel
  • Insulation class II
  • Width 103 mm
  • Dimensions 103X128X230 mm

There are no reviews

Data sheet

Type:
Interlocked switch socket outlets
Voltage:
230/24VAC
Poles:
2P
Degree of protection:
IP67
Installation:
Wall/Recessed
Amps:
16A
