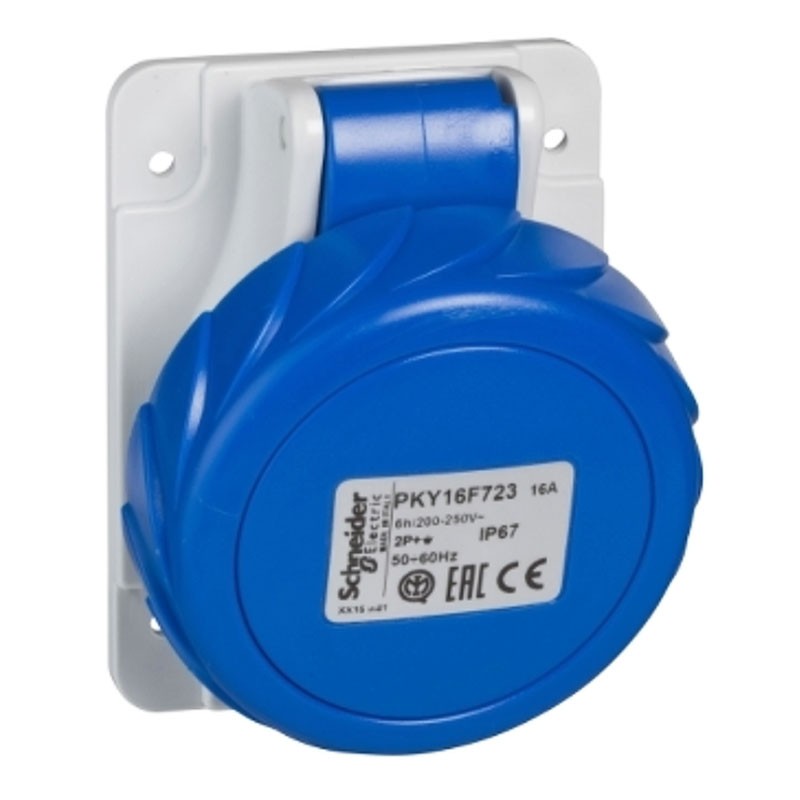

CEE Schneider flush-mounted socket 10° 2X16A+T PKY16F723
SNR PKY16F723
3303432011185
LV fixed flush-mounted inclined socket, Schneider Pratika, with the following features:
- Rated operating voltage 200/250V
- Rated current 16A
- Network frequency: 50/60 Hz
- Network type: AC
- Poles: 2P+T
- Degree of protection IP67 according to IEC 60529
- Plug, socket category: low voltage
CEE Schneider flush-mounted socket 10° 2X16A+T PKY16F723
€8.28
€8.28
Tax included
Tax included
Items Available: 21
: 5
Features:
- Schneider Series
- Mounting Mode: Square face
- Shape: Corner
- Standard socket: industrial
- Earth terminal position (clockwise): 6 h
- Plug, socket material: housing: self-extinguishing technopolymer
- Material of contacts: pins: brass
- Connections - terminals: Quick connect
- Cable cross-section: 1...4 mm²
- Weight: 0.147 kg
- Base dimensions: 65 x 85 mm
- Dimensions: height 85 mm - width 73 mm - depth 103 mm
- Color gray (RAL 7035)
- Voltage code color: blue
- Reference standards: IEC 60309-1 - IEC 60309-2
- Degree of protection IK08 in accordance with EN 62262
- Fire resistance: 850 °C in accordance with IEC 60695-2-1
- Relative humidity: 50 % at 40 °C - 70 % at 30 °C - 90 % at 20 °C
- Ambient air temperature for operation: 35 °C ( 86400 s ) / -25 +40 °C
El producto de mucha calidad y muy buen precio. Muy recomendable.
le conosco già prodotti validi e affidabili
Data sheet
- Type:
- Sockets CEE
- Voltage:
- 220/250VAC
- Poles:
- 2P+E
- Degree of protection:
- IP67
- Installation:
- Recessed
- Amps:
- 16A
