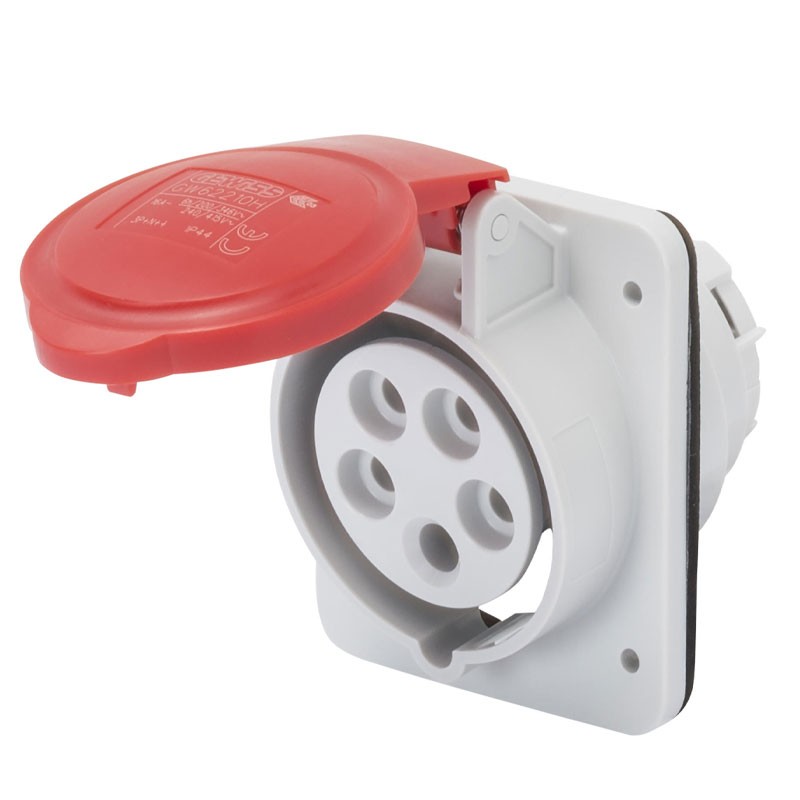

Gewiss fixed flush-mounted socket 3P+N+E 16A IP44 red 380V GW62210H
GEW GW62210H
8011564798977
Gewiss 10° HP recessed fixed socket, with the following characteristics:
- Nominal voltage: 380 - 415V
- Frequency: 50/60 Hz
- Rated current 16A
- Poles: 3P+T+N
- Degree of protection IP44/IP54
Gewiss fixed flush-mounted socket 3P+N+E 16A IP44 red 380V GW62210H
€8.37
€8.37
Tax included
Tax included
Items Available: 207
: 16
Features:
- Gewiss Series
- Red color
- Shock resistance IK09
- Reference h: 6
- Terminal clamping capacity: 1-2,5 mm² flexible cables - 1,5-4 mm² rigid cables
- Operating temperature -25 +55 °C
- Type Material: Halogen free according to EN 60754-2 standard
- Electrocod code: 2210
- Screw wiring

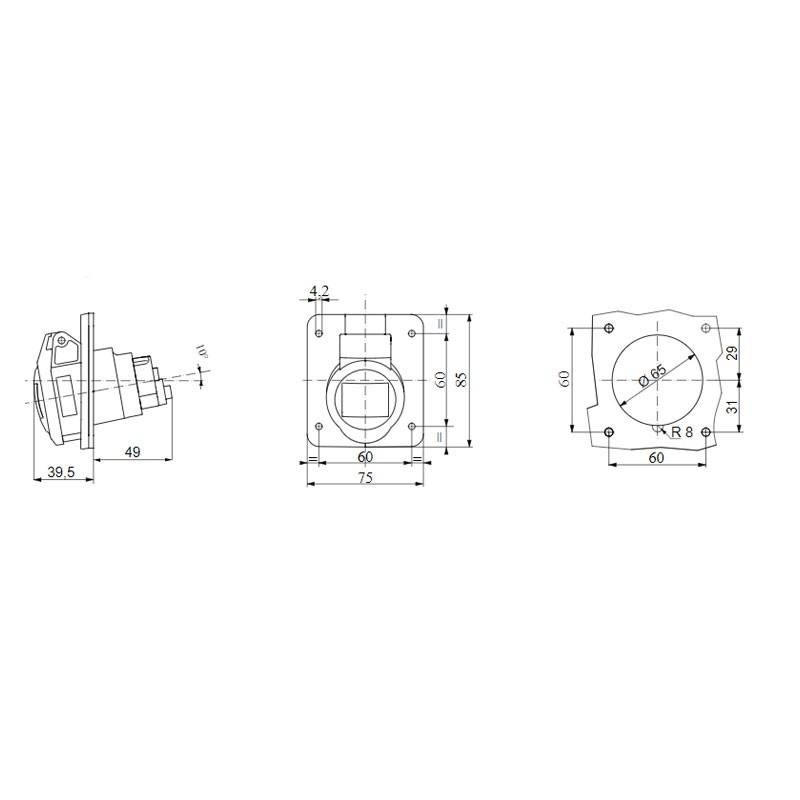

- Flange dimensions (mm): 85x75
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations: > 5000
- Interrupting capacity at 1,1 Un: 20A
- Insulation resistance: > 10 MΩ
- Allowable overload: 22 A
- Thermopressure with ball: 125 °C (Active Parts) - 80 °C (Passive Parts)
Ottimo prodotto qualità prezzo molto elevato
Si tratta di un componente di ottima qualità.
Materiale ottimo rispondente alle caratteristiche
Data sheet
- Type: Sockets CEE
- Voltage: 380/415VAC
- Poles: 3P+N+E
- Degree of protection: IP44
- Installation: Recessed
- Amps: 16A
