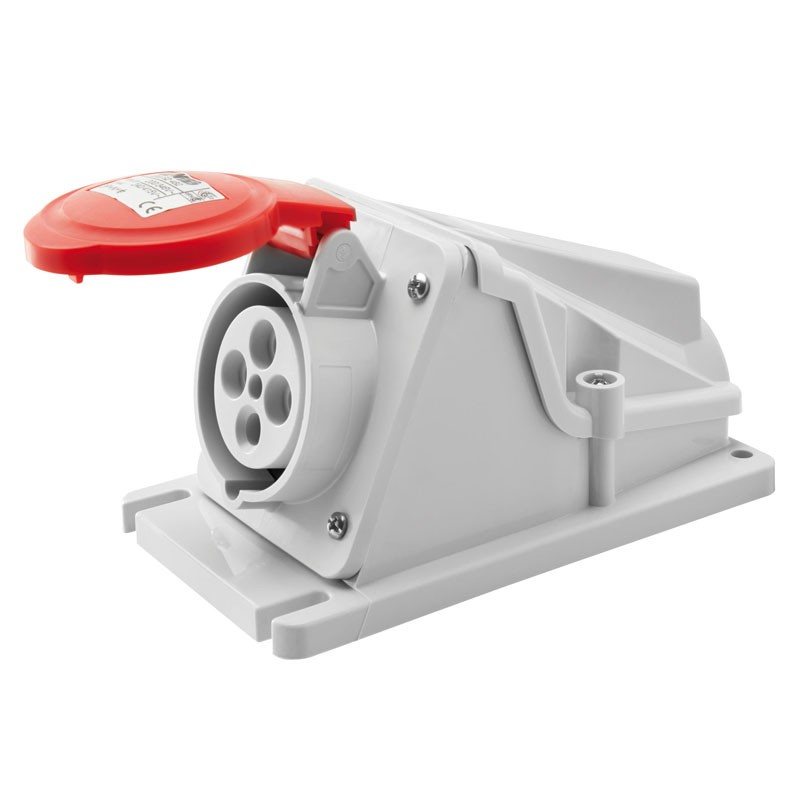

Gewiss fixed socket wall outlet 3P+E 16A IP44 380V GW62481

Gewiss
GEW GW62481 8011564004627

Gewiss 90° fixed wall socket, with the following characteristics:

  • Rated voltage: 380-415V
  • Frequency: 50/60 Hz
  • Rated current 16A
  • Poles: 3P+T
  • Degree of protection IP44
Do you have questions about this product or did you not find what you were looking for? Ask us!

Gewiss fixed socket wall outlet 3P+E 16A IP44 380V GW62481

€12.36
€12.36

Gewiss fixed socket wall outlet 3P+E 16A IP44 380V GW62481

€12.36
Tax included
Items Available: 39
Further availability of the manufacturer

Gewiss fixed socket wall outlet 3P+E 16A IP44 380V GW62481

€12.36

Buy it within and receive it from Tuesday, 21 January
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Gewiss Series
  • Admissible overload: 22A
  • Interrupting capacity at 1.1 Un: 20A
  • Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
  • Insulation resistance: > 10 MΩ
  • Red color
  • Impact resistance: IK08
  • Wiring type: screw
  • N. Total maneuvers > 5000
  • Thermopressure with ball: 125 °C (Active parts) - 80 °C (Passive parts)
  • Reference h: 6
  • Terminal clamping capacity: 1-2,5 mm² flexible cables - 1,5-4 mm² rigid cables
  • Operating temperature: -25 +40 °C

There are no reviews

Data sheet

Type:
Sockets CEE
Voltage:
380/415VAC
Poles:
3P+E
Degree of protection:
IP44
Installation:
Wall-mounted
Amps:
16A
