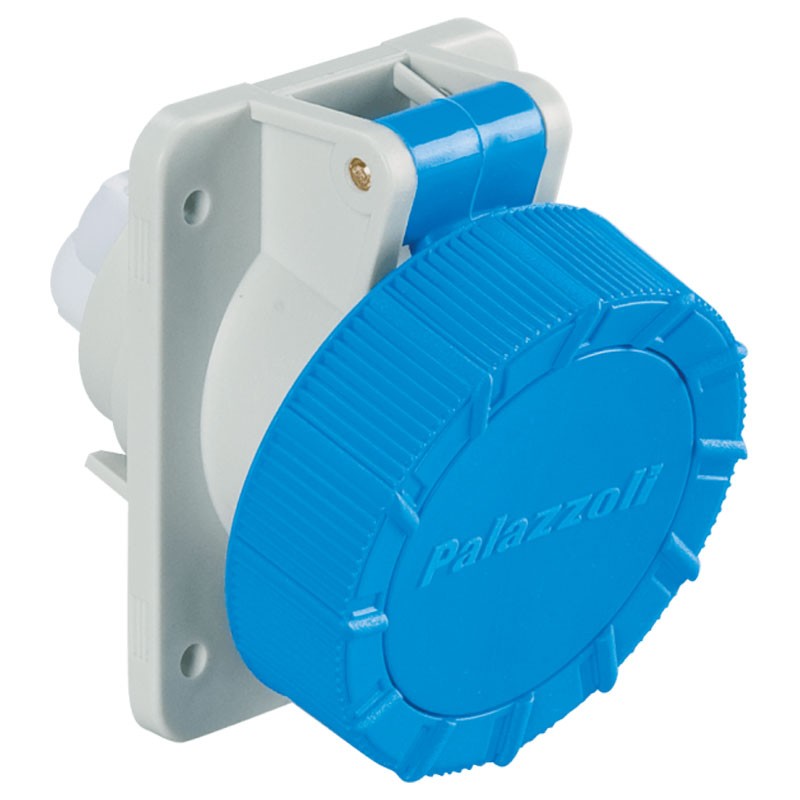

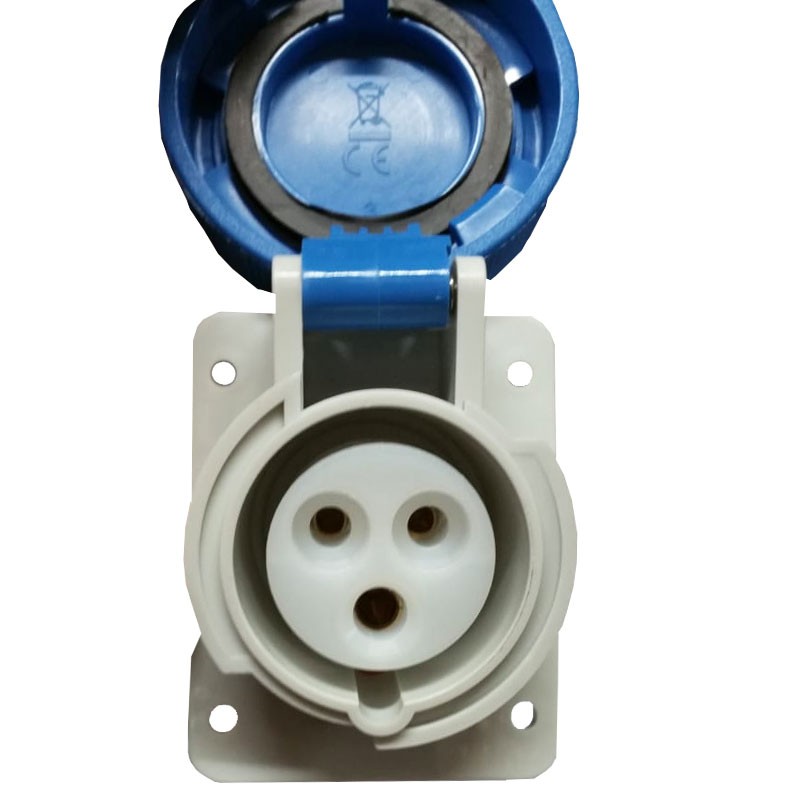

Palazzoli CEE industrial socket for switchboard 2P+E 16A 230V IP66

Palazzoli
PAL 489126 8014950037049

Inclined fixed socket for Palazzoli switchboard, with the following characteristics:

  • Rated voltage: 230V
  • Rated insulation voltage: 690V
  • Poles: 2P+E
  • Nominal current 16A
  • Frequency: 50/60Hz
  • Degree of protection IP66/IP67
Do you have questions about this product or did you not find what you were looking for? Ask us!

Palazzoli CEE industrial socket for switchboard 2P+E 16A 230V IP66

€9.08
€9.08

Palazzoli CEE industrial socket for switchboard 2P+E 16A 230V IP66

€9.08
Tax included
Items Available: 162
Further availability of the manufacturer

Palazzoli CEE industrial socket for switchboard 2P+E 16A 230V IP66

€9.08

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Palazzoli Series
  • Storage ambient temperature: MIN -30°C - MAX +70°C
  • Ambient temperature: MIN -25°C - MAX +50°C
  • Max conductor section 2,5 mm²
  • Color grey RAL 7035
  • Cover color blue
  • Terminal type: indirect clamping
  • Input cable diameter 14÷18 mm
  • Shock resistance IK08 according to IEC/EN 62262
  • Hourly ref: 6h
  • Body material: thermoplastic
  • Execution: recessed
  • Shape: inclined
  • Flange dimensions: 65X83mm
  • Plug-socket standard: EN60309-2

There are no reviews

Data sheet

Type:
Sockets CEE
Voltage:
220/250VAC
Poles:
2P+E
Degree of protection:
IP66
Installation:
Recessed
Amps:
16A
