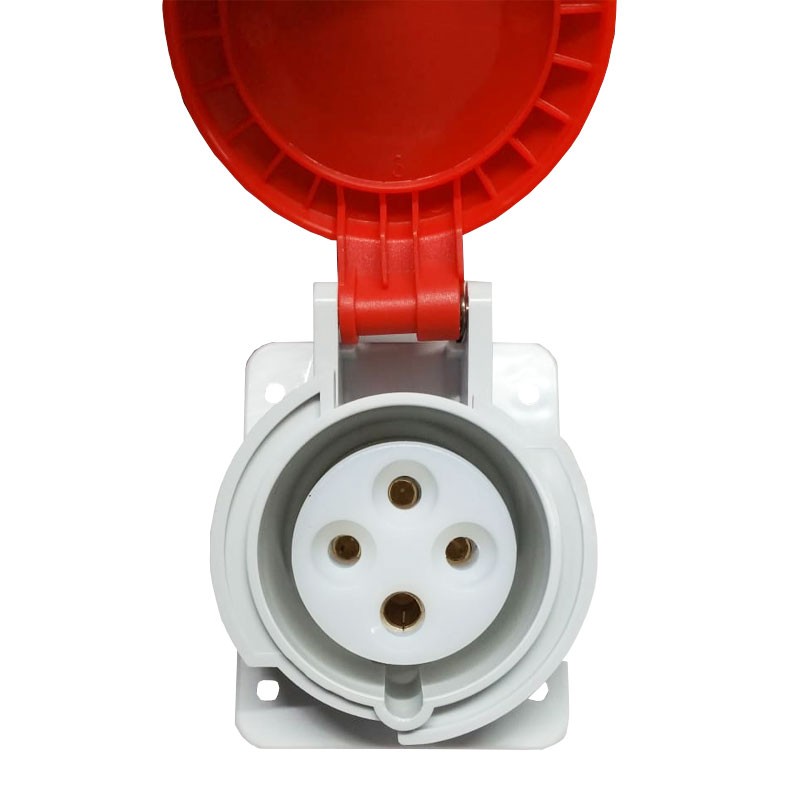

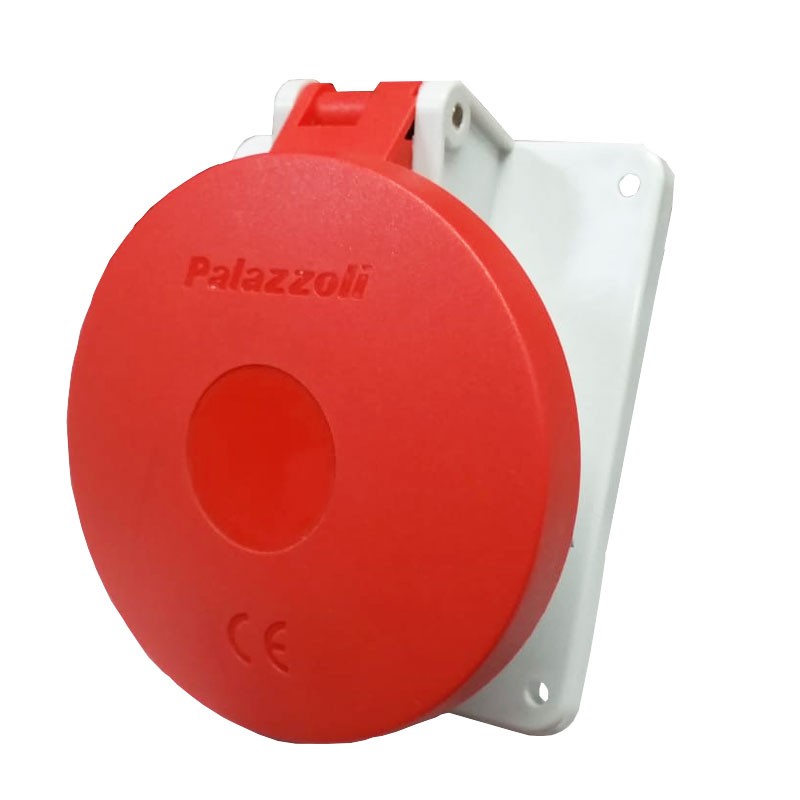

Palazzoli CEE industrial socket for switchboard 3P+E 16A 400V IP44

Palazzoli
PAL 488136 8014950036899

Inclined fixed socket for Palazzoli switchboard, with the following characteristics:

  • Rated voltage: 400V
  • Rated insulation voltage: 690V
  • Poles: 3P +T
  • Nominal current 16A
  • Frequency: 50/60Hz
  • Degree of protection IP44
Do you have questions about this product or did you not find what you were looking for? Ask us!

Palazzoli CEE industrial socket for switchboard 3P+E 16A 400V IP44

€6.51
€6.51

Palazzoli CEE industrial socket for switchboard 3P+E 16A 400V IP44

€6.51
Tax included
Items Available: 147
Further availability of the manufacturer

Palazzoli CEE industrial socket for switchboard 3P+E 16A 400V IP44

€6.51

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Palazzoli Series
  • Storage ambient temperature: MIN -30°C - MAX +70°C
  • Ambient temperature: MIN -25°C - MAX +50°C
  • Max conductor section 2,5 mm²
  • Color grey RAL 7035
  • Cover color red
  • Terminal type: indirect clamping
  • Input cable diameter 14÷18 mm
  • Shock resistance IK08 according to IEC/EN 62262
  • Hourly ref: 6h
  • Body material: thermoplastic
  • Execution: recessed
  • Shape: inclined
  • Flange dimensions: 65X83 mm
  • Plug-socket standard: EN60309-2

Tutto bene anche nella comunicazione! OK!

Read all reviews

Data sheet

Type:
Sockets CEE
Voltage:
380/415VAC
Poles:
3P+E
Degree of protection:
IP44
Installation:
Recessed
Amps:
16A
