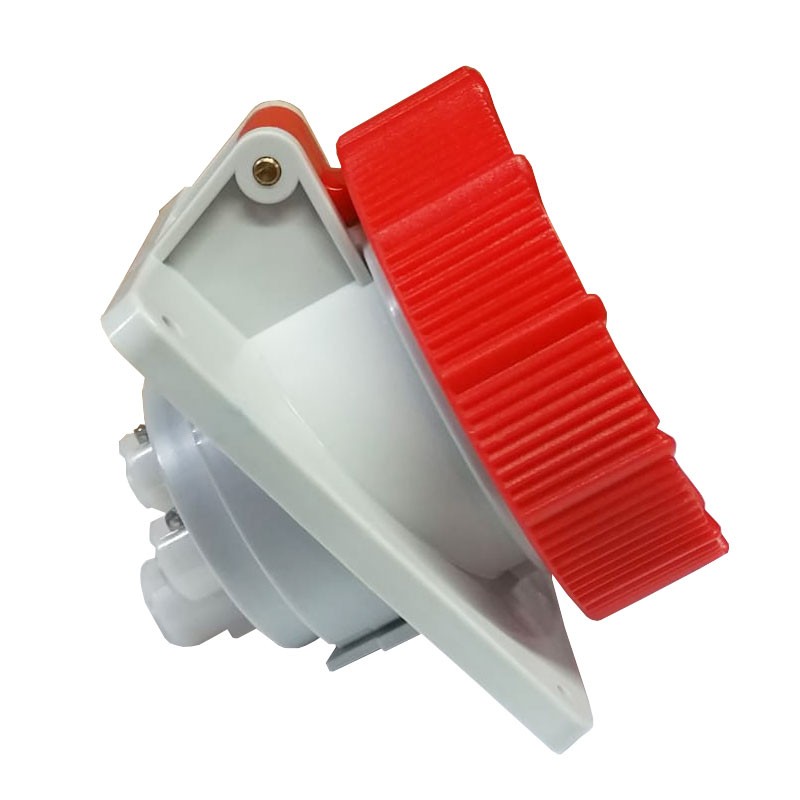

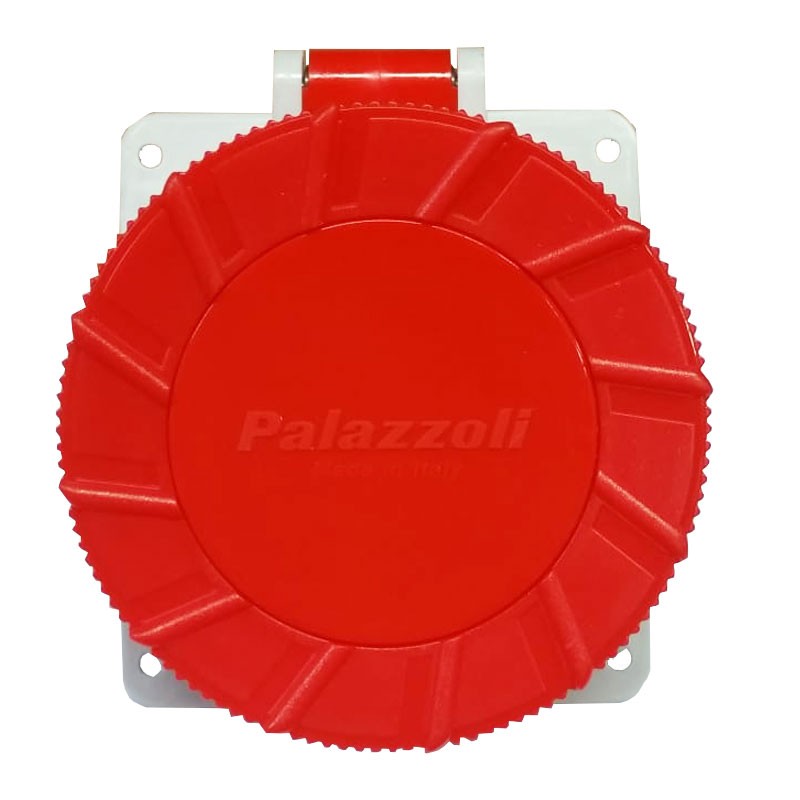

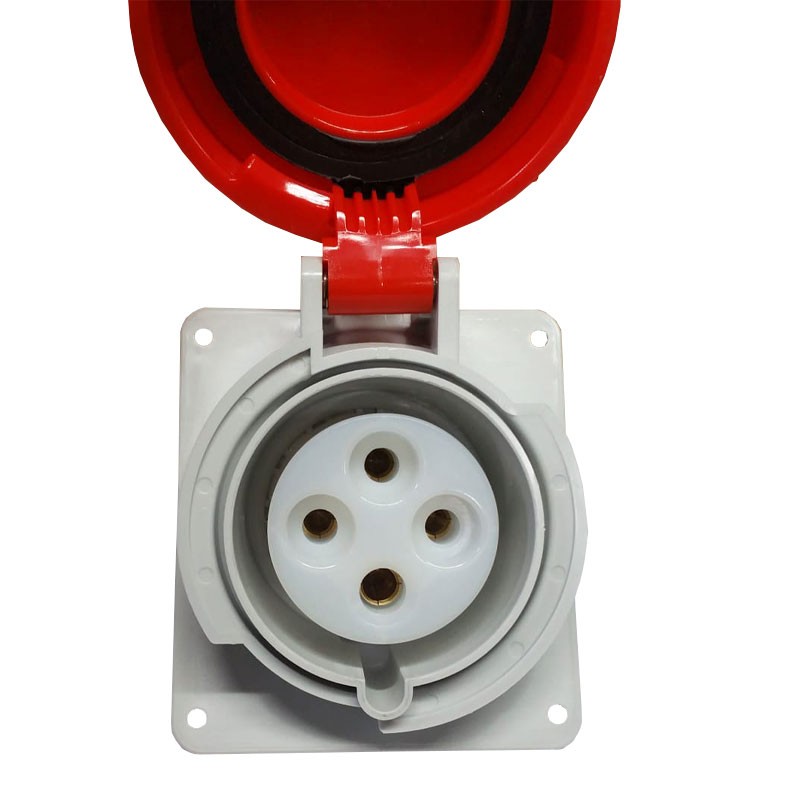

Palazzoli CEE industrial socket for switchboard 3P+E 32A 400V IP66

Palazzoli
PAL 489236 8014950037179

Inclined fixed socket for Palazzoli switchboard, with the following characteristics:

  • Rated voltage: 400V
  • Rated insulation voltage: 690V
  • Poles: 3P+E
  • Rated current 32A
  • Frequency: 50/60Hz
  • Degree of protection IP66/IP67
Do you have questions about this product or did you not find what you were looking for? Ask us!
Palazzoli CEE industrial socket for switchboard 3P+E 32A 400V IP66
€16.18
€16.18

€16.18
Tax included
Items Available: 27
Further availability of the manufacturer
€16.18

Buy it within and receive it from Friday, 7 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Palazzoli Series
  • Storage ambient temperature: MIN -30°C - MAX +70°C
  • Ambient temperature: MIN -25°C - MAX +50°C
  • Max conductor section 6 mm²
  • Color grey RAL 7035
  • Cover color red
  • Terminal type: indirect clamping
  • Input cable diameter 14÷18 mm
  • Shock resistance IK08 according to IEC/EN 62262
  • Hourly ref: 6h
  • Body material: thermoplastic
  • Execution: recessed
  • Shape: inclined
  • Flange dimensions: 88X100 mm
  • Plug-socket standard: EN60309-2

There are no reviews

Data sheet

Type:
Sockets CEE
Voltage:
380/415VAC
Poles:
3P+E
Degree of protection:
IP66
Installation:
Recessed
Amps:
32A
