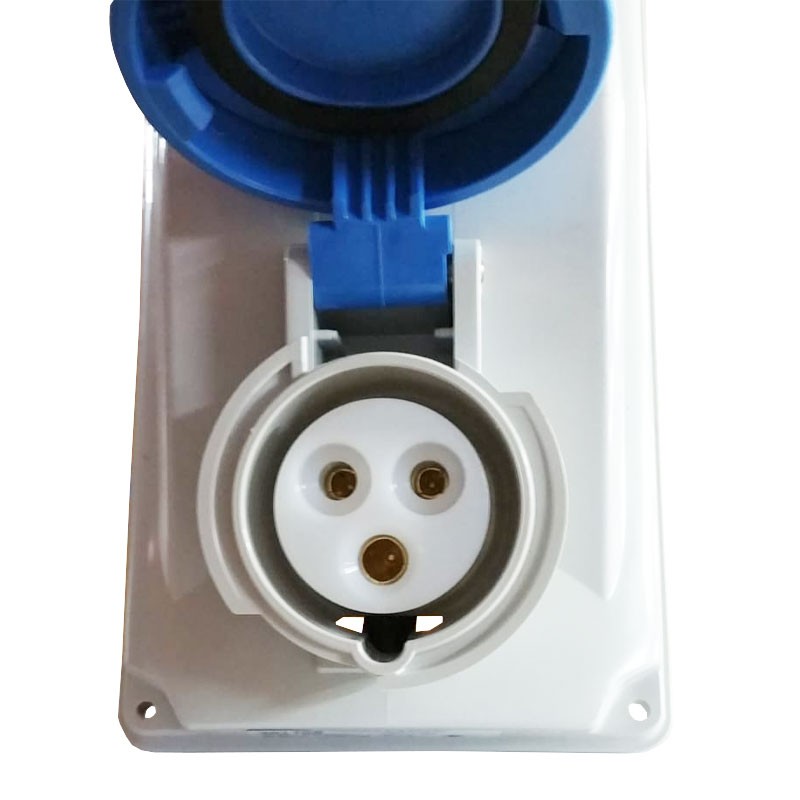

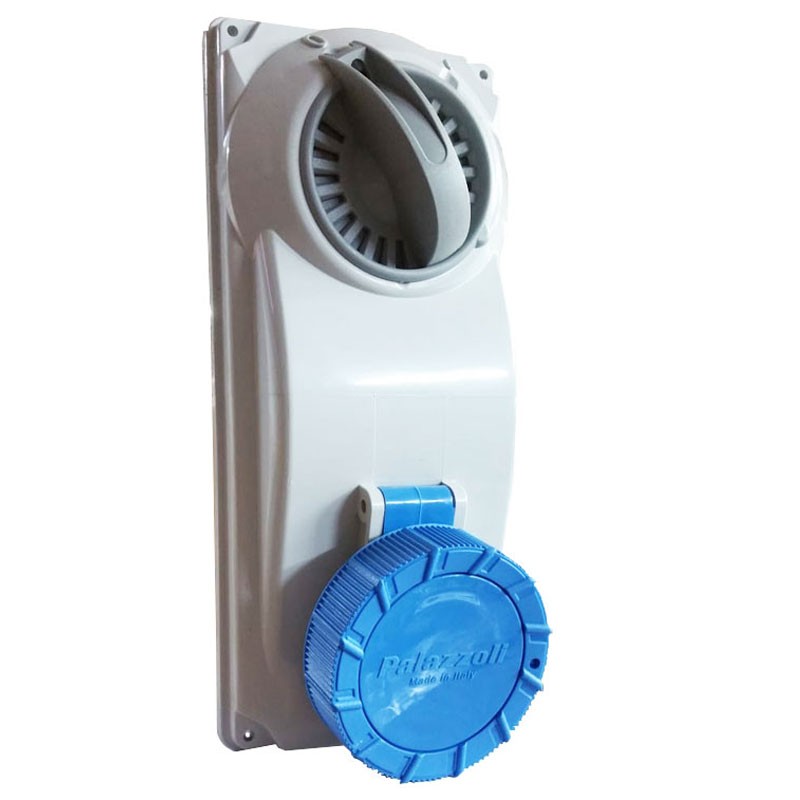

Palazzoli CEE Interlocked Industrial Socket 2P+E 16A 230V IP67
PAL 491126
8014950037391
Palazzoli CEE Interlocked Industrial Socket, with the following characteristics:
- Rated voltage: 230V
- Rated insulation voltage: 690V
- 2 poles+T
- Nominal current 16A
- Frequency 50/60Hz
- Degree of protection IP66/IP67
- Suitable for panel installation
Palazzoli CEE Interlocked Industrial Socket 2P+E 16A 230V IP67
€38.06
€38.06
Tax included
Tax included
Items Available: 285
: 74
Frequently bought together
Features:
- Palazzoli Series
- Storage ambient temperature: MIN -30°C - MAX +70°C
- Ambient temperature: MIN -25°C - MAX +50°C
- Terminal type: indirect clamping
- Max conductor section 10 mm²
- Protection: none
- Utilization category AC-23A / AC-3 16A - 250V
- Shock resistance IK08 according to IEC/EN 62262
- Color gray RAL 7035
- Hourly Ref: 6h
- Body material: thermoplastic
- Execution: panel
- Insulation class II
- Width 108 mm
- Dimensions 103X230X120 mm
Per sostituzione presa, avevo già le cassette da parete Palazzoli quindi ho comprato solo le prese e mi è servito davvero poco tempo per la sostituzione.
buona qualità/prezzo conosco già il prodotto.
Data sheet
- Type:
- Interlocked switch socket outlets
- Voltage:
- 220/250VAC
- Poles:
- 2P+E
- Degree of protection:
- IP67
- Installation:
- Wall/Recessed
- Amps:
- 16A
