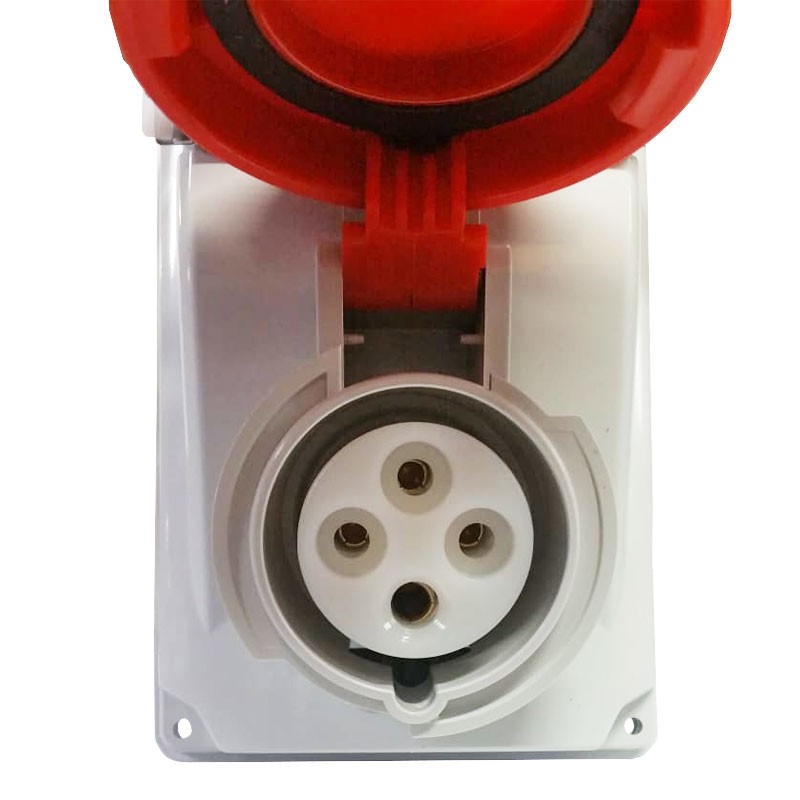

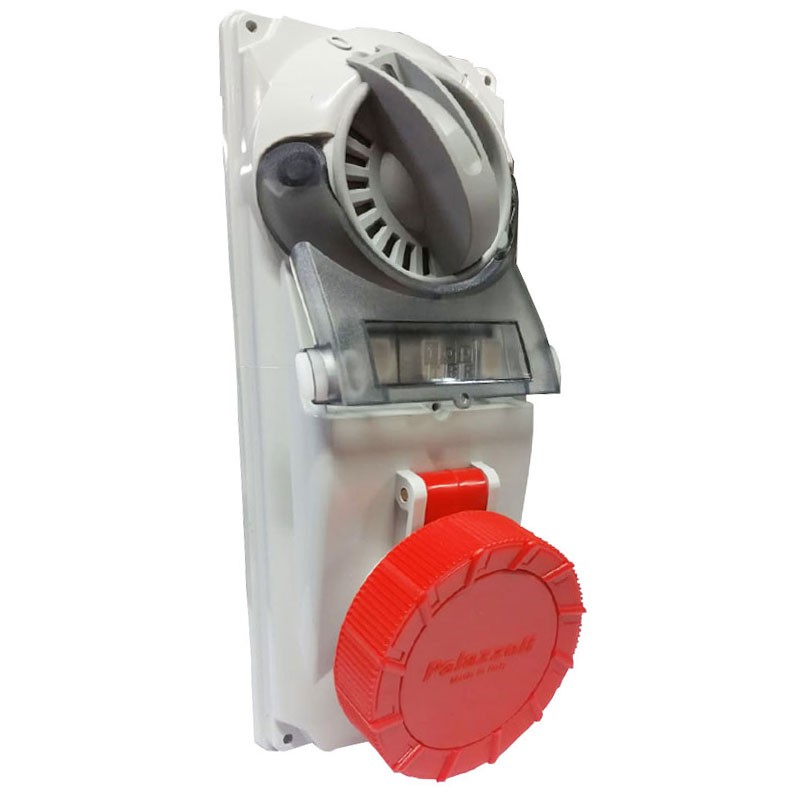

Palazzoli CEE Interlocked Industrial Socket 3P+E 16A 400V IP67 fuse

Palazzoli
PAL 490136 8014950037667

Palazzoli CEE Interlocked Industrial Socket, with the following characteristics:

  • Rated voltage: 400V
  • Rated insulation voltage: 690V
  • 3 poles+ T
  • Rated current 16A
  • Frequency 50/60Hz
  • Degree of protection IP66/IP67
  • With fuse holder base for panel installation
Do you have questions about this product or did you not find what you were looking for? Ask us!

Palazzoli CEE Interlocked Industrial Socket 3P+E 16A 400V IP67 fuse

€68.37
€68.37

Palazzoli CEE Interlocked Industrial Socket 3P+E 16A 400V IP67 fuse

€68.37
Tax included
Items Available: 131
Further availability of the manufacturer

Palazzoli CEE Interlocked Industrial Socket 3P+E 16A 400V IP67 fuse

€68.37

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Features:

  • Palazzoli Series
  • Storage ambient temperature: MIN -30°C - MAX +70°C
  • Ambient temperature: MIN -25°C - MAX +50°C
  • Terminal type: indirect clamping
  • Max conductor section 10 mm²
  • Protection: fuses
  • Utilization category AC-23A / AC-3 16A - 250V
  • Shock resistance IK08 according to IEC/EN 62262
  • Color: gray RAL 7035
  • Hourly ref: 6h
  • Body material: thermoplastic
  • Execution: panel
  • Insulation class II
  • Width 108 mm
  • Dimensions 103X230X120 mm

There are no reviews

Data sheet

Type:
Interlocked switch socket outlets
Voltage:
380/415VAC
Poles:
3P+E
Degree of protection:
IP67
Installation:
Wall/Recessed
Amps:
16A
