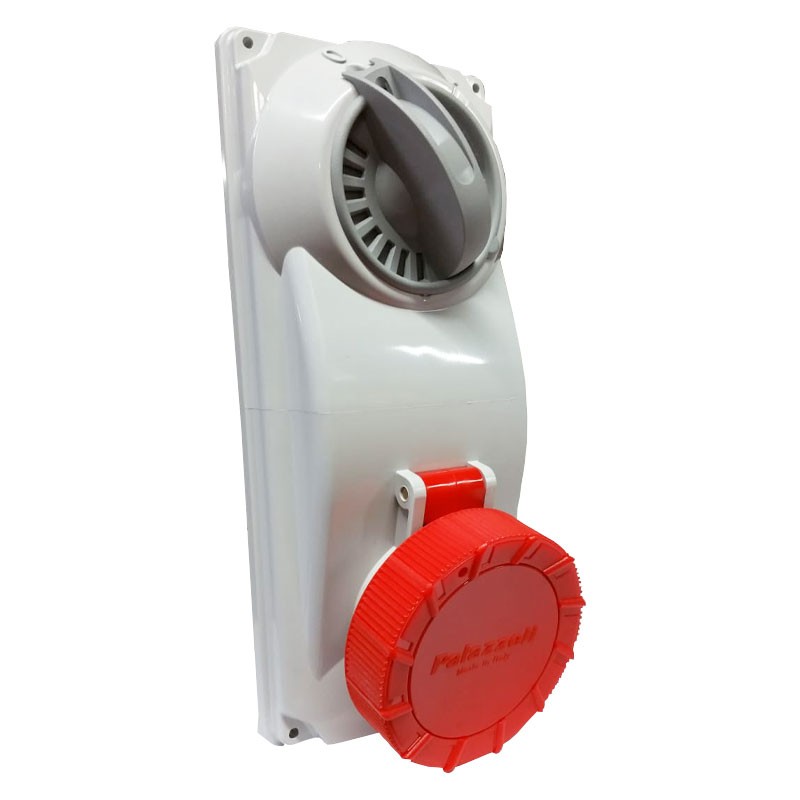

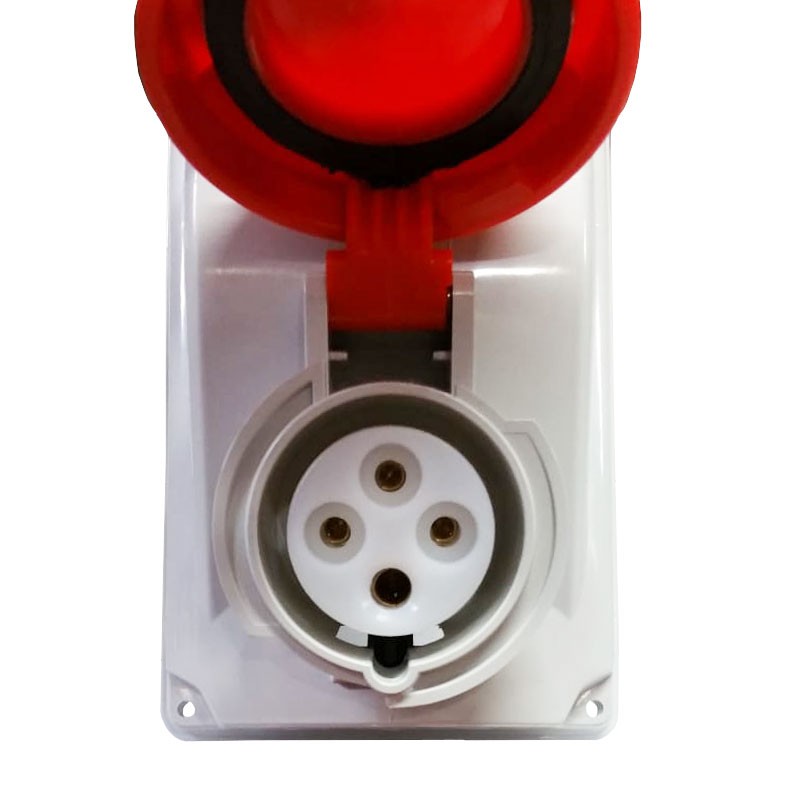

Palazzoli CEE Interlocked Industrial Socket 3P+E 32A 400V IP67

Palazzoli
PAL 491236 8014950037520

Palazzoli CEE Interlocked Industrial Socket, with the following characteristics:

  • Rated voltage: 400V
  • Rated insulation voltage: 690V
  • 3 poles+T
  • Rated current 32A
  • Frequency 50/60Hz
  • Degree of protection IP66/IP67
  • Suitable for panel installation
Do you have questions about this product or did you not find what you were looking for? Ask us!
Palazzoli CEE Interlocked Industrial Socket 3P+E 32A 400V IP67
€57.97
€57.97

€57.97
Tax included
Items Available: 40
Further availability of the manufacturer
€57.97

Buy it within and receive it from Tuesday, 11 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Features:

  • Palazzoli Series
  • Storage ambient temperature: MIN -30°C - MAX +70°C
  • Ambient temperature: MIN -25°C - MAX +50°C
  • Terminal type: indirect clamping
  • Max conductor section 10 mm²
  • Protection: none
  • Utilization category AC-23A / AC-3 32A - 415V
  • Shock resistance IK08 according to IEC/EN 62262
  • Color gray RAL 7035
  • Hourly Ref: 6h
  • Body material: thermoplastic
  • Execution: panel
  • Insulation class II
  • Width 108 mm
  • Dimensions 103X230X135 mm

There are no reviews

Data sheet

Type:
Interlocked switch socket outlets
Voltage:
380/415VAC
Poles:
3P+E
Degree of protection:
IP67
Installation:
Wall/Recessed
Amps:
32A
