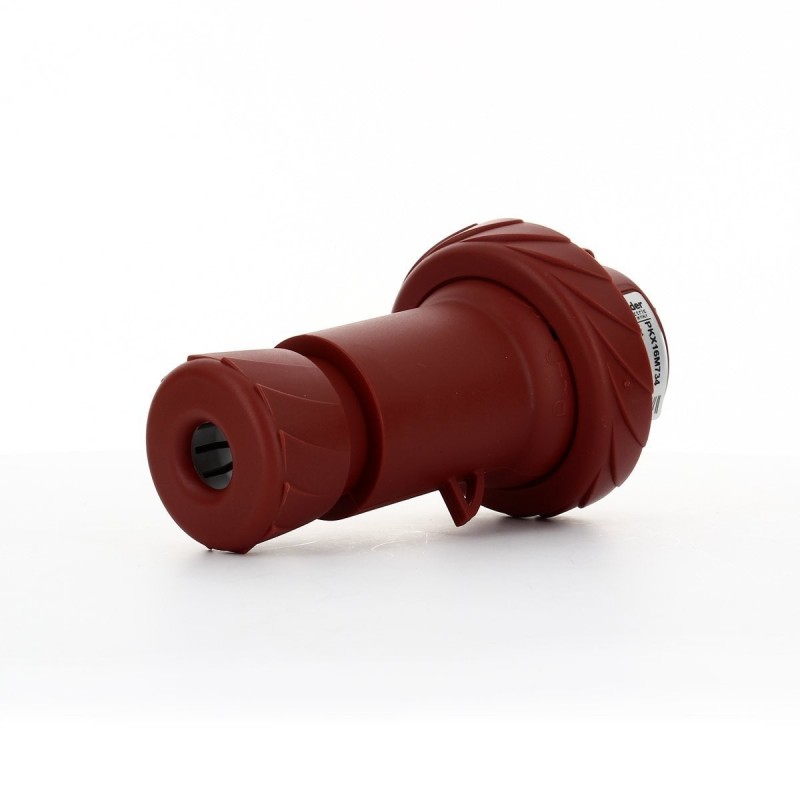

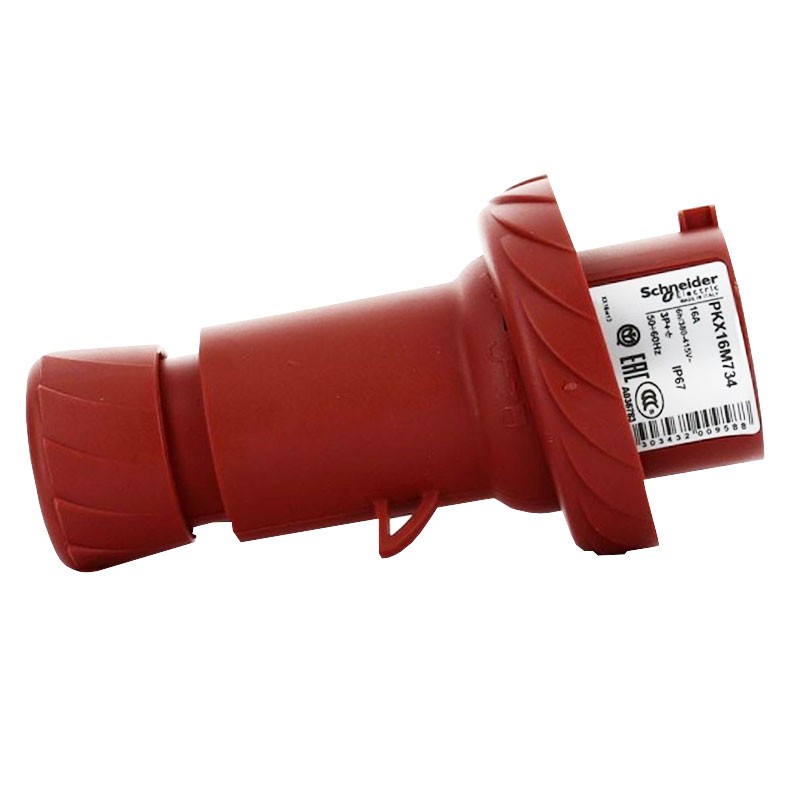

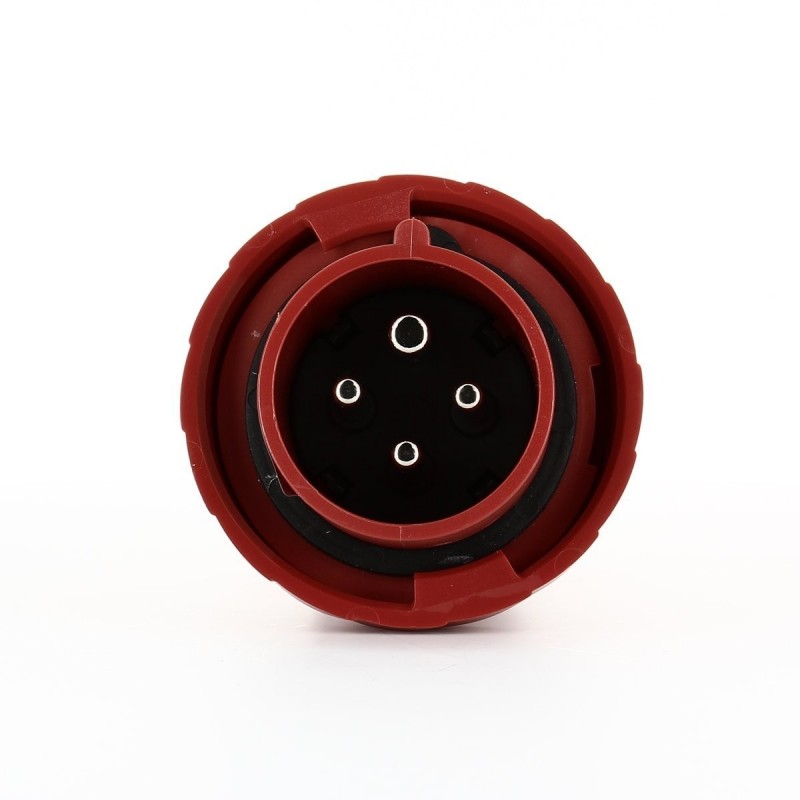

Schneider industrial mobile plug 3X16A+T 400V IP67 red PKX16M734


SNR PKX16M734 3303432009588

PratiKa BT Schneider mobile industrial plug, with the following features:

  • Rated operating voltage 380/415V
  • Rated current 16A
  • Network frequency: 50/60 Hz
  • Network type: AC
  • Poles: 3P+T
  • Low voltage straight plug
Do you have questions about this product or did you not find what you were looking for? Ask us!

Schneider industrial mobile plug 3X16A+T 400V IP67 red PKX16M734

€7.96
€7.96

Schneider industrial mobile plug 3X16A+T 400V IP67 red PKX16M734

€7.96
Tax included

Schneider industrial mobile plug 3X16A+T 400V IP67 red PKX16M734

€7.96

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days

Features:

  • Schneider Series
  • Earth terminal position (clockwise): 6 hours
  • Material plug, socket :housing: self-extinguishing technopolymer
  • Contacts material: brass pins
  • Connections - terminals: quick connection
  • Cable cross-section: 1...2.5 mm²
  • Cable outer diameter: 8...15 mm
  • Cable entry: Cable clamp/cable grommet
  • Net weight: 0.201 kg
  • Dimensions: height 139 mm - width 81 mm - depth 81 mm
  • Color: gray (RAL 7035)
  • Color of voltage: red
  • Standard: IEC 60309-1 - IEC 60309-2
  • Degree of protection IP67 in accordance with IEC 60529
  • Degree of protection IK08 in accordance with EN 62262
  • Fire resistance: 850 °C in accordance with IEC 60695-2-11
  • Relative humidity: 50 % at 40 °C - 70 % at 30 °C - 90 % at 20 °C
  • Operating altitude: 2000 meters
  • Ambient air temperature for operation: 35 °C ( 86400 s ) / -25 +40 °C

Data sheet

Type:
CEE plugs
Voltage:
380/415VAC
Poles:
3P+E
Degree of protection:
IP67
Installation:
Mobile
Amps:
16A
