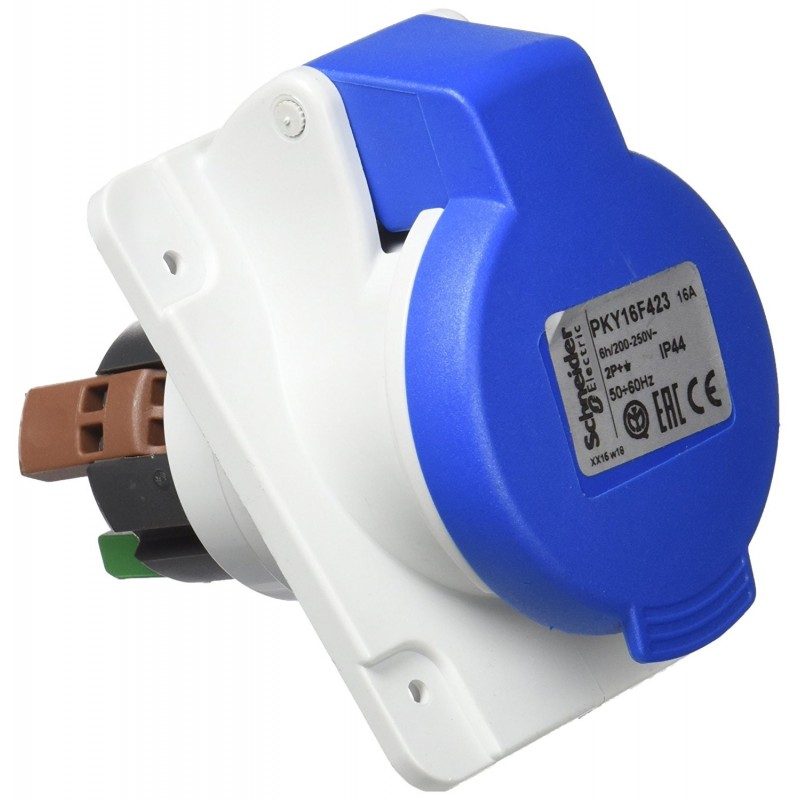

Schneider industrial socket recessed 2X16A+T 230V blue PKY16F423
SNR PKY16F423
3303432010867
Schneider LV PratiKa fixed flush mount industrial receptacle with the following features:
- Rated operating voltage 200/250V
- Rated current 16A
- Network frequency: 50/60 Hz
- Network type: AC
- Poles: 2P+E
- Mounting Mode: Front Panel
- Shape: Corner
Schneider industrial socket recessed 2X16A+T 230V blue PKY16F423
€6.21
€6.21
Tax included
Tax included
Items Available: 19
: 5
Features:
- Schneider Series
- Earth terminal position (clockwise): 6 hours
- Material plug, socket :housing: self-extinguishing technopolymer
- Contacts material: brass pins
- Connections - terminals: quick connection
- Cable cross section: 1...2.5 mm²
- Base dimensions: 65 x 85 mm
- Dimensions: height 85 mm - width 65 mm - depth 103 mm
- Net weight: 0.148 kg
- Color gray (RAL 7035)
- Color of voltage: blue
- Reference standards: IEC 60309-1 - IEC 60309-2
- Degree of protection IP44 in accordance with IEC 60529
- Degree of protection IK08 in accordance with EN 62262
- Fire resistance: 850 °C in accordance with IEC 60695-2-11
- Relative humidity: 50 % at 40 °C - 70 % at 30 °C - 90 % at 20 °C
- Ambient air temperature for operation: 35 °C ( 86400 s )
There are no reviews
Data sheet
- Type:
- Sockets CEE
- Voltage:
- 220/250VAC
- Poles:
- 2P+E
- Degree of protection:
- IP44
- Installation:
- Recessed
- Amps:
- 16A
