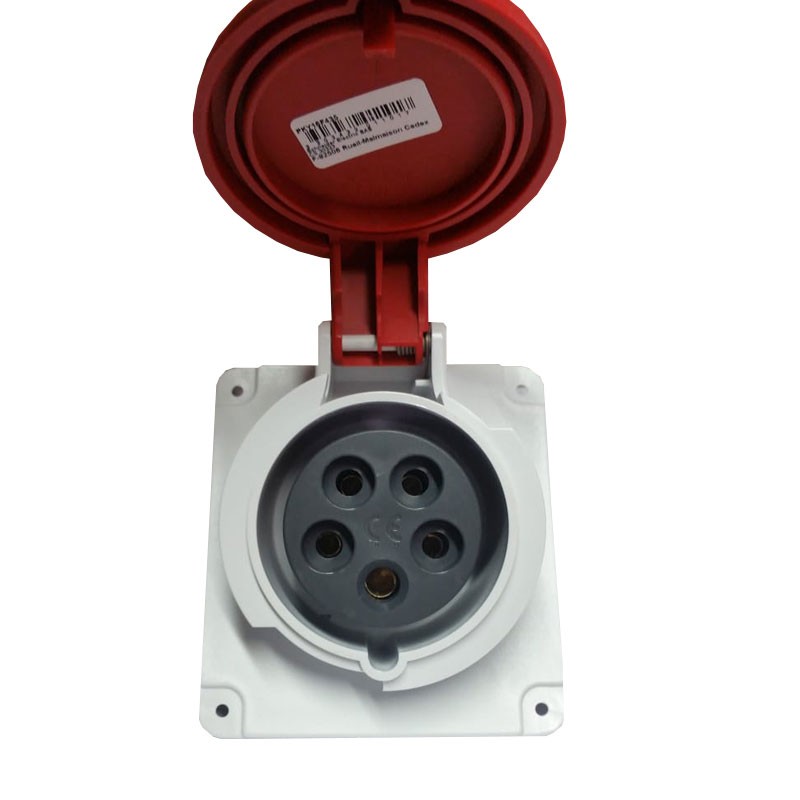

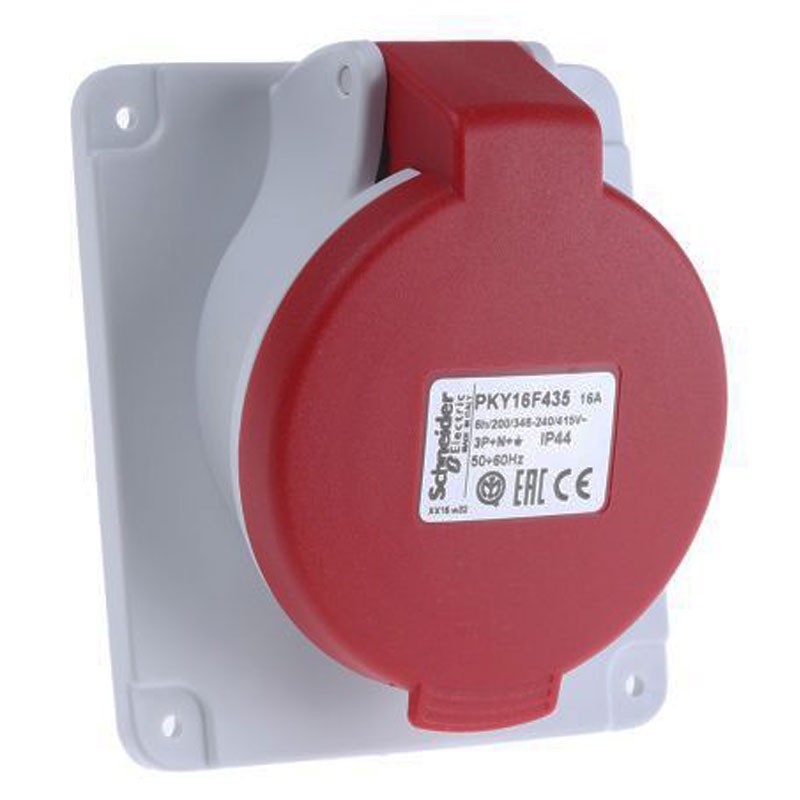

Schneider industrial socket recessed 3X16A+NT 400V red PKY16F435
SNR PKY16F435
3303432011017
PratiKa BT Schneider fixed flush mount industrial receptacle with the following features:
- Rated operating voltage 380/415V
- Rated current 16A
- Network frequency: 50/60 Hz
- Network type: AC
- Poles: 3P+N+T
- Mounting Mode: Front Panel
- Shape: Corner
Schneider industrial socket recessed 3X16A+NT 400V red PKY16F435
€8.10
€8.10
Tax included
Tax included
Items Available: 8
: 4
Features:
- Schneider Series
- Earth terminal position (clockwise): 6 hours
- Material plug, socket :housing: self-extinguishing technopolymer
- Contacts material: brass pins
- Connections - terminals: quick connection
- Cable cross section: 1...2.5 mm²
- Base dimensions: 90 x 100 mm
- Dimensions: height 100 mm - width 90 mm - depth 106 mm
- Net weight: 0.208 kg
- Color gray (RAL 7035)
- Color of voltage: red
- Reference standards: IEC 60309-1 - IEC 60309-2
- Degree of protection IP44 in accordance with IEC 60529
- Degree of protection IK08 in accordance with EN 62262
- Fire resistance: 850 °C in accordance with IEC 60695-2-11
- Relative humidity: 50 % at 40 °C - 70 % at 30 °C - 90 % at 20 °C
- Ambient air temperature for operation: 35 °C ( 86400 s )
Data sheet
- Type:
- Sockets CEE
- Voltage:
- 380/415VAC
- Poles:
- 3P+N+E
- Degree of protection:
- IP44
- Installation:
- Recessed
- Amps:
- 16A
