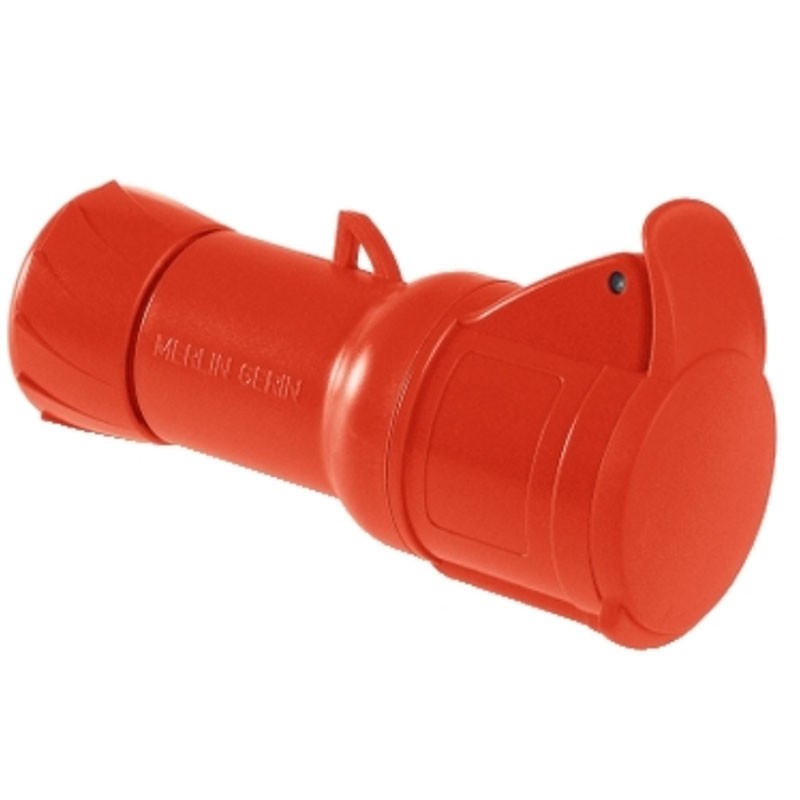

Schneider mobile industrial outlet 3X16A+NT 400V IP44 red PKY16M435
SNR PKY16M435
3303432010188
PratiKa Fast Schneider LV mobile industrial outlet, with the following features:
- Rated operating voltage 380/415V
- Rated current 16A
- Network frequency: 50/60 Hz
- Network type: AC
- Poles: 3P+N+T
- Low voltage straight plug
Schneider mobile industrial outlet 3X16A+NT 400V IP44 red PKY16M435
€8.83
€8.83
Tax included
Tax included
Items Available: 28
: 12
Features:
- Schneider Series
- Earth terminal position (clockwise): 6 hours
- Material plug, socket :housing: self-extinguishing technopolymer
- Contacts material: brass pins
- Connections - terminals: quick connection
- Cable cross-section: 1...2.5 mm²
- Cable outer diameter: 8...15 mm
- Cable entry: cable grommet/cable collar
- Dimensions: height 97 mm - width 97 mm - depth 153 mm
- Net weight: 0.241 kg
- Color: gray (RAL 7035)
- Color of voltage: red
- Reference standards: IEC 60309-1 - IEC 60309-2
- Degree of protection IP44 in accordance with IEC 60529
- Degree of protection IK08 in accordance with EN 62262
- Fire resistance: 850 °C in accordance with IEC 60695-2-11
- Relative humidity: 50 % at 40 °C - 70 % at 30 °C - 90 % at 20 °C
- Ambient air temperature for operation: 35 °C ( 86400 s ) / -25 +40 °C
Data sheet
- Type:
- Sockets CEE
- Voltage:
- 380/415VAC
- Poles:
- 3P+N+E
- Degree of protection:
- IP44
- Installation:
- Mobile
- Amps:
- 16A
