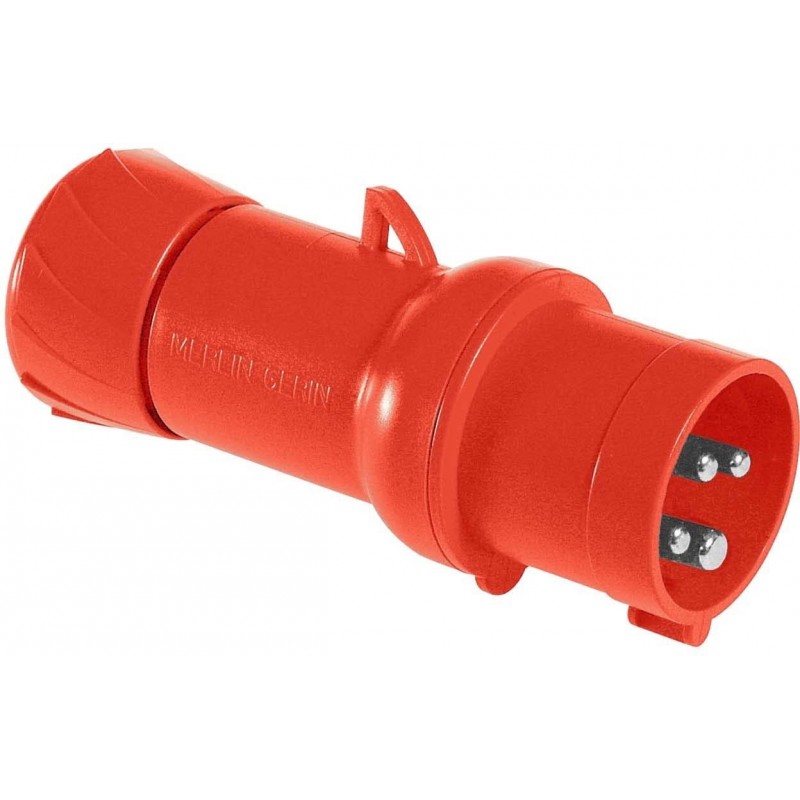

Schneider mobile industrial plug 3X32A+T 400V IP44 red PKX32M434
SNR PKX32M434
3303432009472
PratiKa BT Schneider mobile industrial plug, with the following features:
- Rated operating voltage 380/415V
- Rated current 32A
- Network frequency: 50/60 Hz
- Network type: AC
- Poles: 3P+T
- Low voltage straight plug
Schneider mobile industrial plug 3X32A+T 400V IP44 red PKX32M434
€7.77
€7.77
Tax included
Tax included
Items Available: 24
: 5
Features:
- Schneider Series
- Earth terminal position (clockwise): 6 hours
- Material plug, socket :housing: self-extinguishing technopolymer
- Contacts material: brass pins
- Connections - terminals: quick connection
- Cable cross section: 2.5...6 mm²
- Cable outer diameter: 11.5...21 mm
- Cable entry: Cable clamp/cable grommet
- Net weight: 0.236 kg
- Dimensions: height 152 mm - width 76 mm - depth 76 mm
- Color: gray (RAL 7035)
- Color of voltage: red
- Standard: IEC 60309-1 - IEC 60309-2
- Degree of protection IP44 in accordance with IEC 60529
- Degree of protection IK08 in accordance with EN 62262
- Fire resistance: 850 °C in accordance with IEC 60695-2-11
- Relative humidity: 50 % at 40 °C - 70 % at 30 °C - 90 % at 20 °C
- Operating altitude: 2000 meters
- Ambient air temperature for operation: 35 °C ( 86400 s ) / -25 +40 °C
Data sheet
- Type:
- CEE plugs
- Voltage:
- 380/415VAC
- Poles:
- 3P+E
- Degree of protection:
- IP44
- Installation:
- Mobile
- Amps:
- 32A
