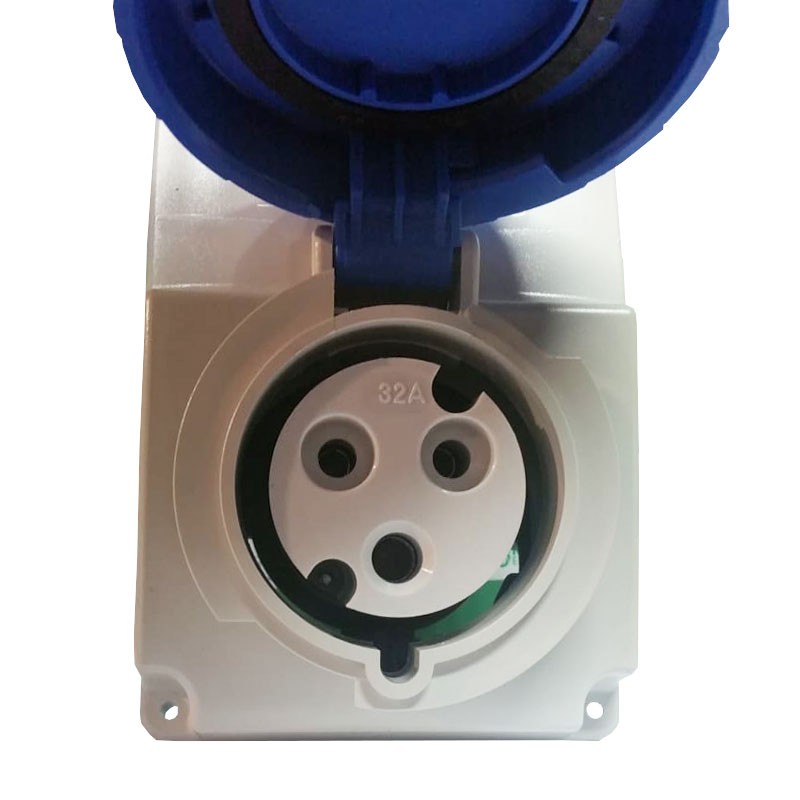

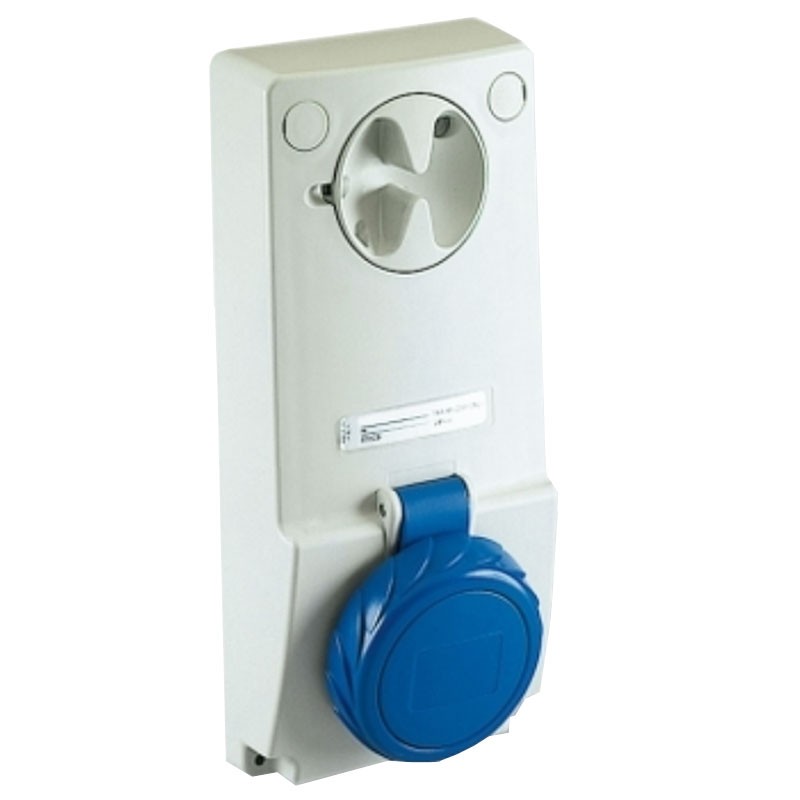

Schneider vertical interlocked socket 2X32A+E 220V IP65 82092
SNR 82092
3303430820925
Unika interlocked vertical recessed outlet with the following features:
- Rated operating voltage 200/250V
- Rated current 32A
- Network frequency: 50/60 Hz
- Network type: AC
- Poles: 2P+T
- Degree of protection IP65 according to IEC 60529
- Plug, socket category: low voltage
Schneider vertical interlocked socket 2X32A+E 220V IP65 82092
€53.17
€53.17
Tax included
Tax included
Items Available: 13
: 11
Features:
- Schneider Series
- Mounting method: Front panel
- Earth terminal position (clockwise): 6 h
- Type of protection: without protection
- Plug, socket material: housing: self-extinguishing technopolymer
- Contacts material: pins: nickel-plated brass
- Connections - terminals: Studs
- Maximum cable cross-section: 10 mm²
- Maximum cable outer diameter: 25 mm²
- Cable entry: cable collar
- Weight: 0.697 kg
- Base dimensions: 103 x 225 mm
- Dimensions: height 225 mm - width 103 mm - depth 128 mm
- Color gray (RAL 7035)
- Voltage code color: blue
- Reference standards: IEC 60309-1 - IEC 60309-2
- Degree of protection IK09 in accordance with EN 62262
- Fire resistance: 750 °C in accordance with IEC 60695-2-11
- Relative humidity: 50 % at 40 °C - 70 % at 30 °C - 90 % at 20 °C
- Ambient air temperature for operation: 35 °C ( 86400 s ) / -25 +40 °C
There are no reviews
Data sheet
- Type:
- Interlocked switch socket outlets
- Voltage:
- 220/250VAC
- Poles:
- 2P+E
- Degree of protection:
- IP65
- Installation:
- Recessed
- Amps:
- 32A
