HT Italia 600A 600V HT4010 Current Clamp
HTI HP004010
Current Clamp HT Italy, with the following characteristics:
- Power supply: 1x9V battery type NEDA 1604 IEC 6F22
- Auto power off function after 15 minutes of non-use
- The liquid crystal display (LCD) is 3 ½ digits with maximum reading 2000 points
- Decimal point and symbols indication.
- Automatic polarity indication
- Backlighting
![](https://www.elettronew.com/45974-large_default/ht-italia-600a-600v-ht4010-current-clamp.jpg)

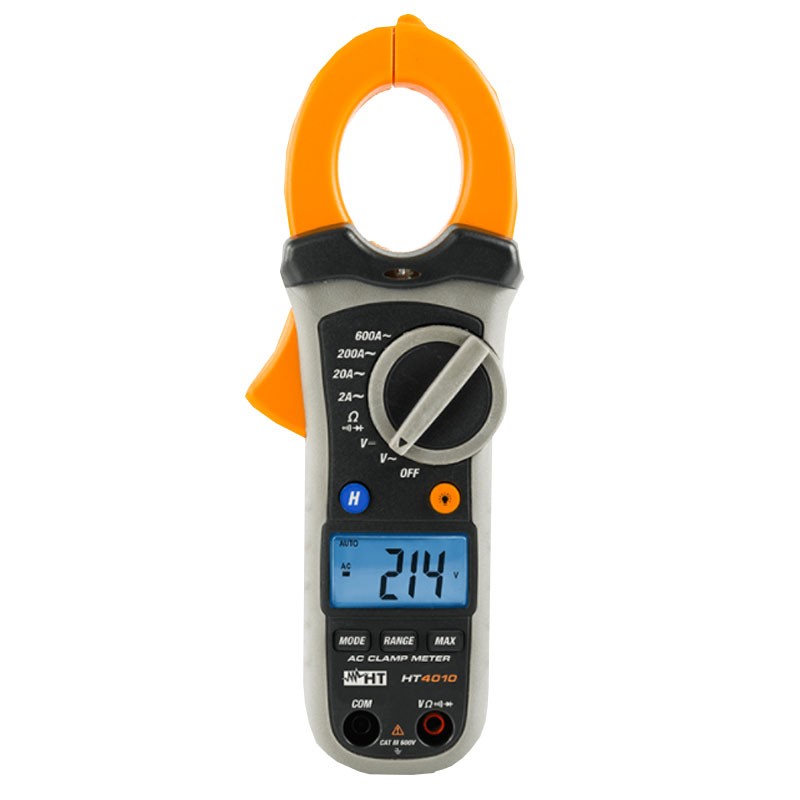

HT Italia 600A 600V HT4010 Current Clamp
€93.45
€93.45
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 56
The HT4010 clamp meter can perform AC Current measurements up to 600A and AC/DC Voltage, Resistance, Continuity and Diode Test.
Theinstrument has an internal sensor able to detect, through the lighting of an LED and a buzzer, the presence of AC voltage at a point without contact.
The instrument complies with IEC/EN61010-1 in CAT III 600V and is ideal for measurements in both civil and industrial environments.
Features:
- HT Series Italy
- 2 measures per second
- Conversion: average value
- The " BAT " symbol appears when the battery voltage drops to a low level
- Operating temperature: 5°C to 40°C, 0 - 80 %RH
- Storage temperature: -20°C to 60°C, 0 - 80 %RH
- Altitude up to 2000m
- Pollution degree: 2
- Insulation: double insulation
- Max. diameter of crimpable conductor: 30 mm
- Dimensions: 197(L)x 70 (W) x 40 (H)
- Weight: 180 grams (including battery)
- Reference standards: LVD: IEC/EN 61010-1 CAT III 600V to ground
- EMC: EN60326
Data sheet
- Type:
- Current Clamps
