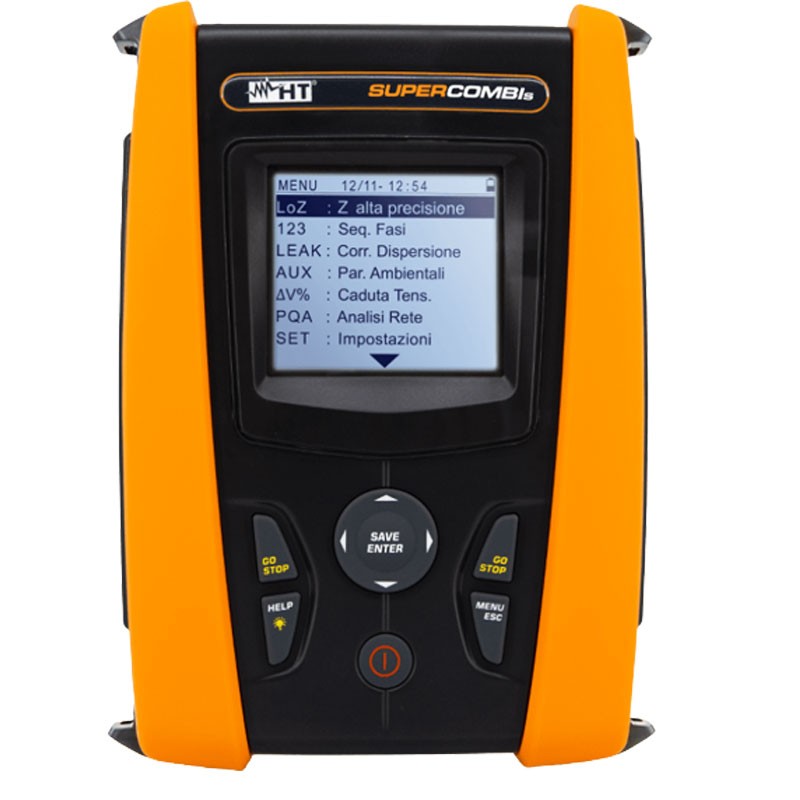

SUPERCOMBI performs verifications of electrical installations in accordance with CEI 64-8 and therefore measurements of Global Earth Resistance, tests on RCD type A, AC and F up to 1A rated current, and type B/B+ up to 300mA, Insulation up to 1000V, Continuity and short circuit currents, for the measurement and saving of environmental parameters (illuminance, temperature), of leakage current and electrical quantities active power, harmonics, power factor on Single-phase installations and last but not least the possibility of the control of the cyclic sense of the phases. Also present, related to the measurement of Insulation, is the verification of the dielectric absorption ratio D.A.R. and the polarization index P.I.



In addition SUPERCOMBI is able to perform a guided sequence of verification tests on EVSE station, thanks to the optional EV-TEST100 adapter, and to connect to the HT Analysis App via the built-in WiFi connection.



The large internal memory allows saving of the measurements taken so that they can later be transferred to PC via serial connection. The innovative AUTO function has been included in the instrument: by choosing this function and setting only the value of the differential current, the SUPERCOMBI connected to a power outlet, performs in sequence Global Earth Resistance test, test on RCD, Insulation test. At the end of the test all results with indication of compliance or non-compliance with regulatory requirements with simple OK or NOT OK symbology.





Advantages:

• All electrical safety verifications required by IEC 64-8 standards.
• Automatic sequence of verification tests on EVSE station (with EV-TEST100 adapter, optional accessory)
• Loop/impedance of Line, Phase-Phase, Phase-Neutral, Phase-PE (also high resolution with optional IMP57 accessory)
• Global earth resistance
• Measurement of electrical parameters in single-phase installations (V,A, W, VAR, VA, PF)
• Differential testing type A, AC and F up to 1A, type B/B+ up to 300mA, type DD and CCID
• Insulation resistance measurement up to 1000V, with verification of dielectric absorption ratio D.A.R. and 'polarization index P.I.
• Continuity measurement of protective conductors with 200mA
• Verification of thermal-magnetic protections and fuses
• Verification of cyclic sense of phases (SEQ) and leakage currents
• Measurement of environmental parameters using external probes (HT52/05 and HT53/05)




Technical characteristics:

• Dimensions (W x L x H): 225 x 165 x 75mm
• Weight (including batteries): 1.2kg
• Mechanical protection: IP40
• Memory capacity: 999 memory locations, 3 levels of markers
• Communication port for PC connection: optical/USB
• Display features: COG White/black graphic LCD, 320x240px
• Reference temperature: 23°C ± 5°C
• Operating temperature: 0° ÷ 40°C
• Allowable relative humidity: <80%RH
• Storage temperature: -10°C ÷ 60°C
• Storage humidity: <80%RH Max use altitude: 2000m



Power supply:

• Batteries: 6x1.5V alkaline AA IEC LR06 type or 6 x1.2V rechargeable NiMH AA type
• Autonomy: >500 trials for each function
• Auto Power OFF: after 5 minutes of non-use (can be disabled)




Reference Standards:

• Sicurezza: IEC/EN61010-1,IEC/EN61010-2-030,IEC/EN61010-2-033
• IEC/EN61010-2-034, IEC/EN61557-1
• EMC : IEC/EN61326-1
• Technical Documentation : IEC/EN61187
• Safety accessories : IEC/EN61010-031
• Insulation: double insulation
• Pollution degree: 2
• Overvoltage category: CAT IV 300V to ground, max 415V between inputs
• RPE: IEC/EN61557-4, BS7671 17th ed., AS/NZS3000/3017
• MΩ: IEC/EN61557-2, BS7671 17th ed., AS/NZS3000/3017
• RCD: IEC/EN61557-6 (only on Phase-Neutral-Earth systems)
• RCD-DD: IEC62955
• RCD CCID: UL2231-2
• LOOP P-P, P-N, P-PE: IEC/EN61557-3, BS7671 17th ed., AS/NZS3000/3017
• Multifunction: IEC/EN61557-10, BS7671 17th ed., AS/NZS3000/3017
• Short-circuit current: EN60909-0
