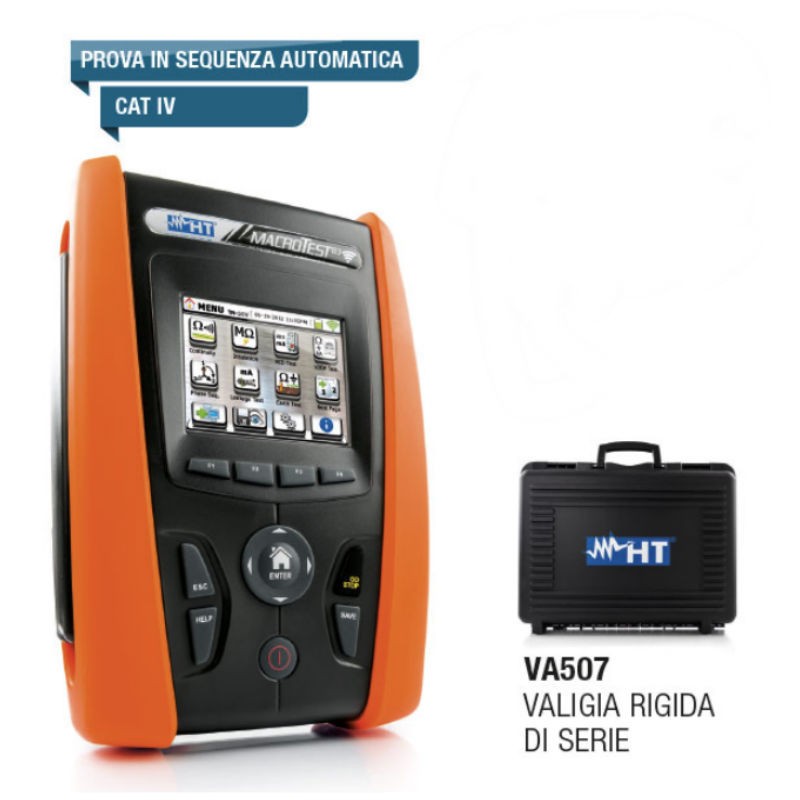

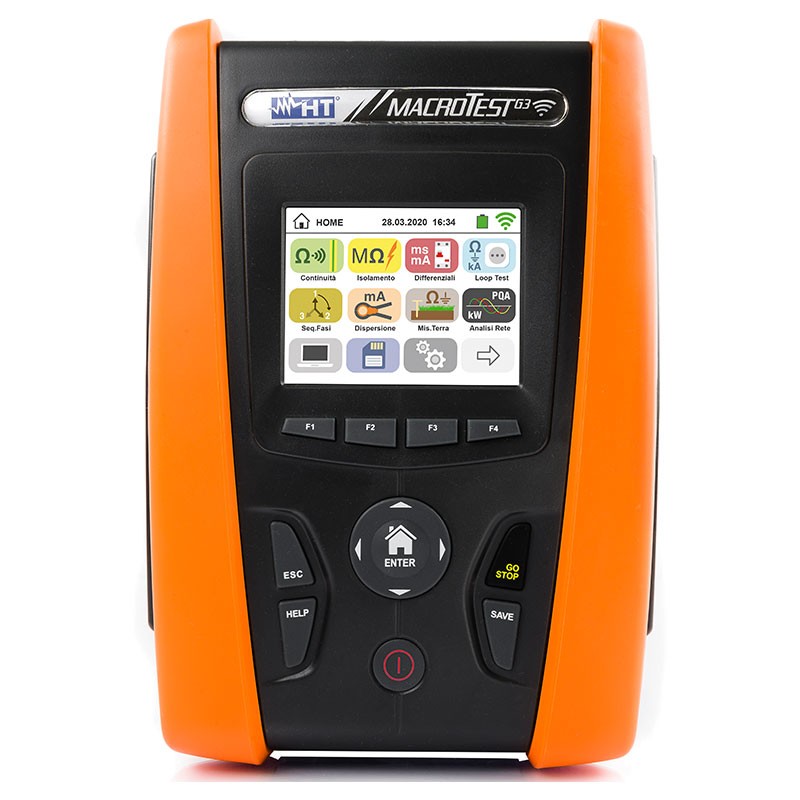

MacrotestG3 is a revolutionary instrument. The TFT colour display with capacitive touch-screen allows a completely new way of using the device. MacrotestG3 displays all the possible variables for the realization of a perfect measurement.The operator's task is to "touch" what The task of the operator is to "touch" what he really wants to measure: the microprocessor of the Macrotest G3 takes care of the rest!

The instrument meets all all the regulatory requirements in terms of safety of electrical installations: type A residual current device test, AC type also up to 1000 mA and type B; insulation, continuity and earth resistance tests (this also with the aid of the optional T2100 clamp).
With the appropriate programming guided by the touch-screen system, it can perform tests related to the checks on the With appropriate programming guided by the touch-screen system, it can carry out tests on breaking capacity, tripping currents, I2t relative to MCBs with curves B, C, D, K and fuses type gG and aM!

Possibility of using external probes for measurements of environmental parameters such as temperature / humidity in the air, illuminance (Lux) as well as measurements of leakage currents, cosphi, power and harmonics and Loop/Line Impedance measurements and calculation of the presumed short circuit current with high resolution (0.1mOhm) in TN systems with the use of the optional accessory IMP57.
Advanced measurement management with indication, at the end of each test regarding safety, of the respect or not of the normative requirements with simple symbology of OK o NOT OK.

Functions:

• TRMS Isolation with test voltages 100, 250, 500, 1000VDC
• Continuity of protective conductors with 200mA
• Tripping time and current RCD type B, A, AC Standard, Selective and Delayed up to 1A
• RCD separate toroid trip time and current Type B, A, AC Standard, Selective and Delayed up to 10A With optional RCDX10 accessory
• Global Earth Resistance without tripping of the differential Earth Resistance with voltamperometric method
• Resistance of individual earth electrodes with clamp With optional T2100 clamp accessory
• Ground resistivity with 4-wire method Loop/Line impedance, Phase to Phase, Phase to Neutral, Phase to PE
• Measurement of percentage voltage drop on the line AUTOMATIC test (Ra, RCD, Insulation) in sequence
• Contact voltage Cyclic sense of phases
• Leakage current with optional clamp ammeter
• Voltage, Current, Active, Reactive, Apparent power measurement
• Measurement of Cosphi, Power Factor
• Voltage and current harmonics up to 49a and THD% 25a
• Protection category CAT IV 300V
• Measurement of environmental parameters (°C,°F, %RH, Lux)
• Test with remote test lead PR400 On-line help on display
• Internal memory for saving measures
• Optical/USB serial port for PC connection
• Integrated WiFi and compatibility with HTANALYSIS app
• Dimensions (WxLaxH) (mm) 222x162x57
• Weight in grams (including batteries) 1200

Included accessories:

• C2033X Cable with 3-terminal Shuko plug
• KITGSC5 Set of 4 cables, 4 alligator clips, 2 tips
• KITTERRNE Bag with 4 cables + 4 metal probes
• PR400 Remote Tip for Test Activation
• PT400 Touch-screen stylus
• BAG2051 Transport bag
• TOPVIEW2006 Management software + optical/USB cable C2006
• YABAT0003000 Rechargeable battery NiMH 1.2V type AA, 6 pieces
• YABAT0004000 Battery charger for 8 simultaneous batteries type AA.
• Quick start guide
• User's manual on CD-ROM
• ISO9000 calibration certificate
