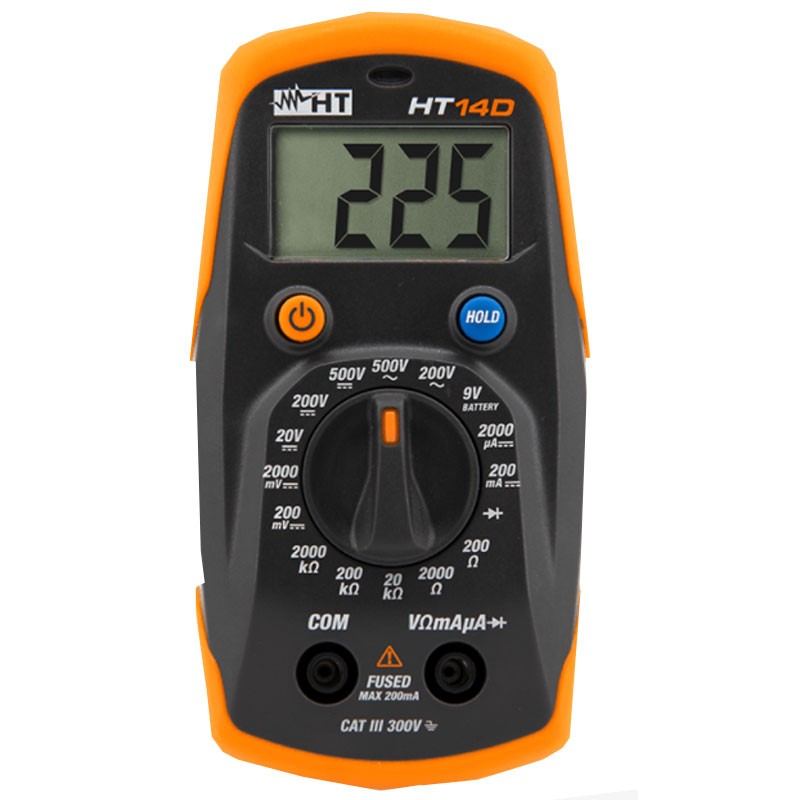

HT14D model is a compact digital multimeter able to perform mainly AC/DC Voltage measurements up to 500V and DC current up to 200mA with complementary functions of Resistance, Diode Test and 9V alkaline battery test.

The instrument is designed according to IEC/EN61010-1 safety standard with double insulation protection in CAT III 300V. HT14D is equipped with a large LCD display and each function can be selected through a special switch. Further function is the Data HOLD for the maintenance of the values on display. HT14D model is an ultra-compact digital multimeter of modern conception and easy to use thanks to the integrated measuring tips. The instrument allows to perform measurements of AC/DC Voltage, Resistance, Continuity Test, Frequency, Duty Cycle, Diode Test and Capacity.

Features:

• HT Series Italy
• Functions: Data HOLD
• Low battery indication: "BAT" symbol appears when battery voltage is too low
• Operating temperature: 0°C to 50°C, <70%HR
• Storage temperature: -10°C to 60°C, <80%HR
• Maximum altitude of use: 2000 m
• Pollution degree: 2
• Insulation: double insulation
• Dimensions: 105(L) x 50(W) x 25(H) mm
• Weight (including battery) 100 grams
• Reference standards: Safety: IEC/EN61010-1, CAT III 300V, CAT II 600V to ground
