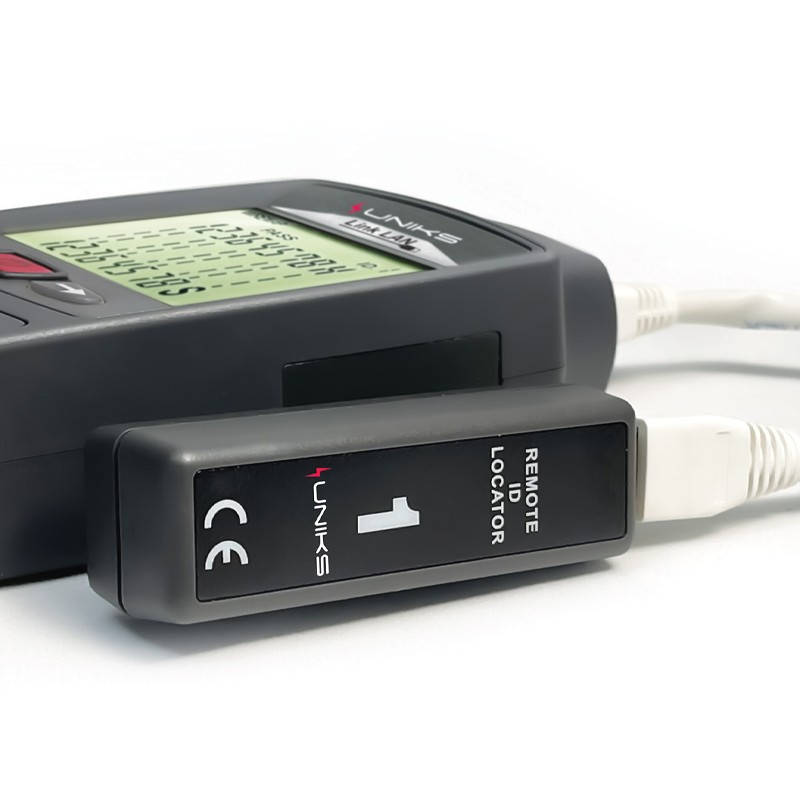

LINKLAN Portable LAN Uniks Network Cable Verifier Tool
UNK LINKLAN
8052461741727
Uniks Portable LAN Cable Inspector is able to detect and indicate on the display the presence of incorrect connections on LAN network cables (crossed pairs, split, inverted, open, short-circuited, etc.) both UTP (unshielded) and STP or FTP (shielded).
€237.90
€237.90
Tax included
Tax included
Items Available: 16
: 1
Uniks LINK LAN also allows you to measure the length of the cable and save the test results in its internal memory area. Each model has several remote units supplied and are able to recognise others (optional) in order to carry out an effective action of localisation of different points within a permutation framework, carrying out the tests very quickly with the help of a single operator.
Uniks LINK LAN is ideal for any installer who needs simple and effective tools for carrying out preliminary checks and verifications on LAN network installations with RJ45 type connectors.
Functions:
- Cable type settings
- Description of split pairs
- Test with use of several remote units
- Cable length measurement
- Cable length calibration
- Cable length unit setting.
The SPLIT PAIRS error condition is caused by the exchange of two conductors belonging to different pairs. Pin to Pin correspondence is maintained, but physically the wires of the pairs are crossed. The two crossed pairs affect each other making high frequency/speed data exchange difficult, if not impossible.
The test allows to verify the mapping of LAN, CAT5 and CAT6, UTS and STP type cables with RJ45 connector detecting eventual wiring errors.
Features:
- Input connectors: RJ45
- Type of RJ45 cable: UTP, STP
- Category: CAT5, CAT6
- Considered standard: TIA/EIA 568B
- Recognized wiring errors: open pairs, short circuited, inverted, split cross, generic
- Maximum altitude of use: 2000m
- Length range (1): 10m ÷ 250m (30ft ÷ 750ft)
- Accuracy ±(10%reading + 1.0m) ±(10%reading + 3.0ft).
There are no reviews
Data sheet
- Type: Tools for Lan Networks
