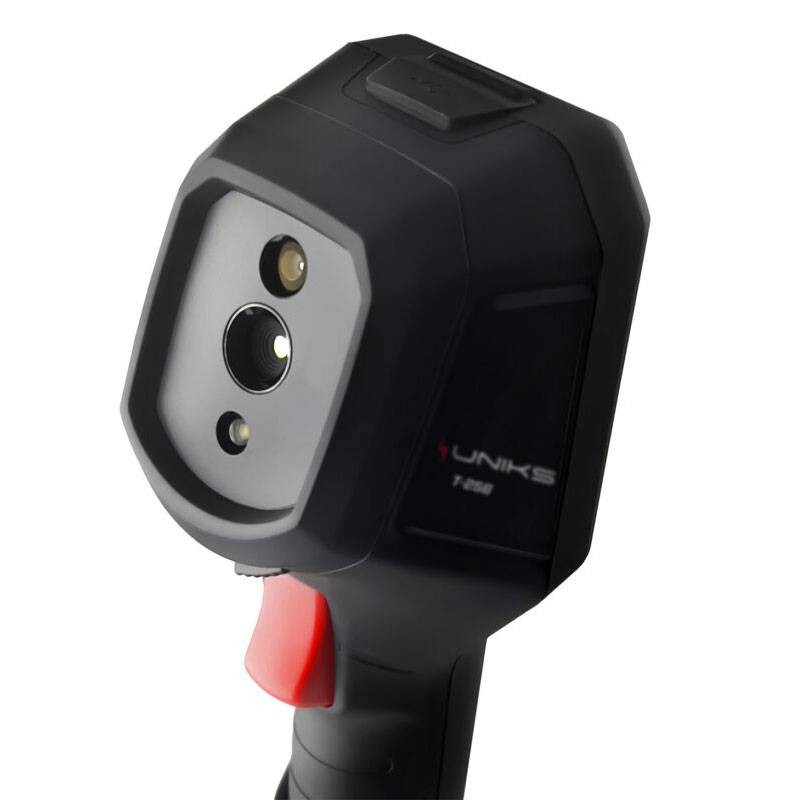

T256 is a highly professional thermal imaging camera that enables qualitative and quantitative analysis ideal therefore in both the construction and electrical sectors.

Equipped with a large Display whose large size allows very detailed analysis and provides visibility of even the smallest details to be detected.

Equipped with a high-performance VOX sensor, it is possible to detect temperatures with an accuracy of 2% which makes it useful in sectors such as construction, automotive industry, air conditioning and electrical systems, and photovoltaics.

The T-256 thermal imaging camera has the ability to be set in AUTO RANGE to always obtain the optimal temperature scale relative to a TARGET point or the scale can be set manually (Span Temperature) from the lowest temperature to the highest temperature to obtain a narrow or expanded range of the 'thermographic image.

It is equipped with LED Light, 256 x 192 pixels VOX type sensor and 2M pixels optical lens.

It is possible to set the camera in 4 modes:

• Thermal to obtain 100% thermographic image
• Fusion to get a mix of real and thermographic image
• PIP to get the thermographic image superimposed on a real image
• Optical only real image



Wi-fi and App communication:

• Saved Images can be transferred to mobile terminals equipped with WiFi for further analysis.
• Through Wi-Fi connections, you can use your smartphone as a display and stream everything the thermal imaging camera is viewing
• The HTG Start APP allows you to take real-time photos and videos and image analysis
• Connected to the mobile terminal to achieve Multi screen control
• Ability to make REPORTS and share them easily



T256 thermal imaging camera allows to quickly detect anomalies in PV systems such as HOT SPOT (hottest individual cells) or hottest panels due to Inverter malfunction or wrong connections. The 256×192 pixel resolution allows lanalysis of even several strings at the same time accurately.

Infiltration and heating: In the building sector, it is possible to safely and non-invasively detect the existence of water infiltration , the affected area and its extent. Another common application is the possibility of tracing the paths related to underfloor heating systems with the ability to quickly identify problems due to the construction of the screed, and the laying of pipes.

Thermocamera T256 allows non-invasive analysis of all components of an electrical system or panelboard Excessively high temperatures of components such as switches, fuses, etc., can cause failures or fires. Therefore, the identification of elements with critical temperatures enables the prevention of even severe damage.

The investigation is performed on all components of the electrical system:

• low voltage: switchboards , switches, relays, conductors, conduits, terminal blocks, terminals, electric motors
• high voltage: joints, sleeves, insulators, T-junctions, arresters, switches, autotransformers, disconnectors, MV/LV transformers, overhead lines, electrical substations, electric motors



With T256, the condition of buildings can be assessed and diagnosed on different aspects: visualizing thermal bridges and energy losses, insulation deficiencies or defects, and the presence of moisture, mold, or poorly insulated areas.

Acquiring images from an infrared camera is only the first step in an infrared inspection. Thermo Analyzer Software will help you complete the full inspection process until a professional report is submitted.

• Various image and video resources
• Image processing
• Analysis in all IR PIP FUSION and optical modes
• Ability to insert new points, lines and areas
• Report generation in PDF or WORD format



Features:

• Battery type: Rechargeable lithium-ion battery directly via USB Type C input.
• Battery life: 6 hours
• Temperature range: Operating: -10/+50 degrees - Storage: -20/+60 degrees
• Degree of protection: IP54
• Dimensions: 221.7×73.5×80.5 mm
• Weight: 350 grams
