Isolator and spacer BM M10 H35 polyester red QHEP03510

Bm
BMM QHEP03510 8013629262249

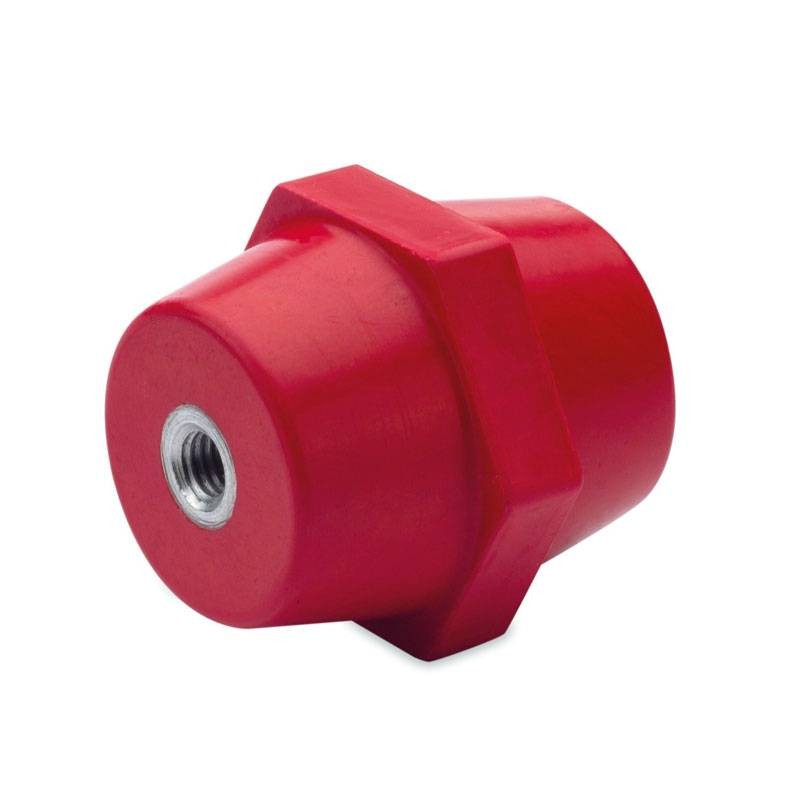

Red polyester insulator and spacer with the following features:


  • Thread: M10
  • Tightening torque: 20 Nm
  • AC voltage: 1.4 kV
  • DC voltage: 1.9 kV
  • Tensile strength: 805 daN
  • Flexural strength: 190 daN
  • Insulation material: red polyester and glass fiber
  • Insert material: galvanized steel threaded according to ISO standards
  • Self-extinguishing level: UL 94 V0
  • Operating temperature: -40 °C to +135 °C

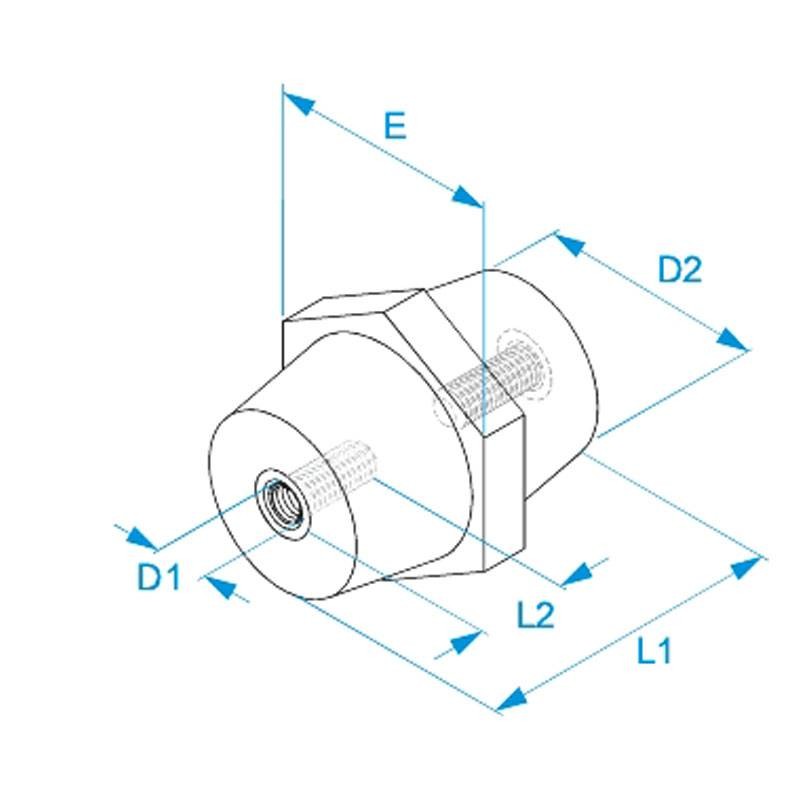

  • Dimensions: 35x12x32x26 mm (L1-L2-key E-D2)


Ideal for: support of threaded and drilled copper bars.

Do you have questions about this product or did you not find what you were looking for? Ask us!

Isolator and spacer BM M10 H35 polyester red QHEP03510

€1.88
€1.88

Isolator and spacer BM M10 H35 polyester red QHEP03510

€1.88
Tax included
Items Available: 113
Further availability of the manufacturer

Isolator and spacer BM M10 H35 polyester red QHEP03510

€1.88

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

There are no reviews

Data sheet

Type:
Isolators

Other products with same features
