Isolator and spacer BM M10 H40 polyester red QHEP04010

Bm
BMM QHEP04010 8013629262270

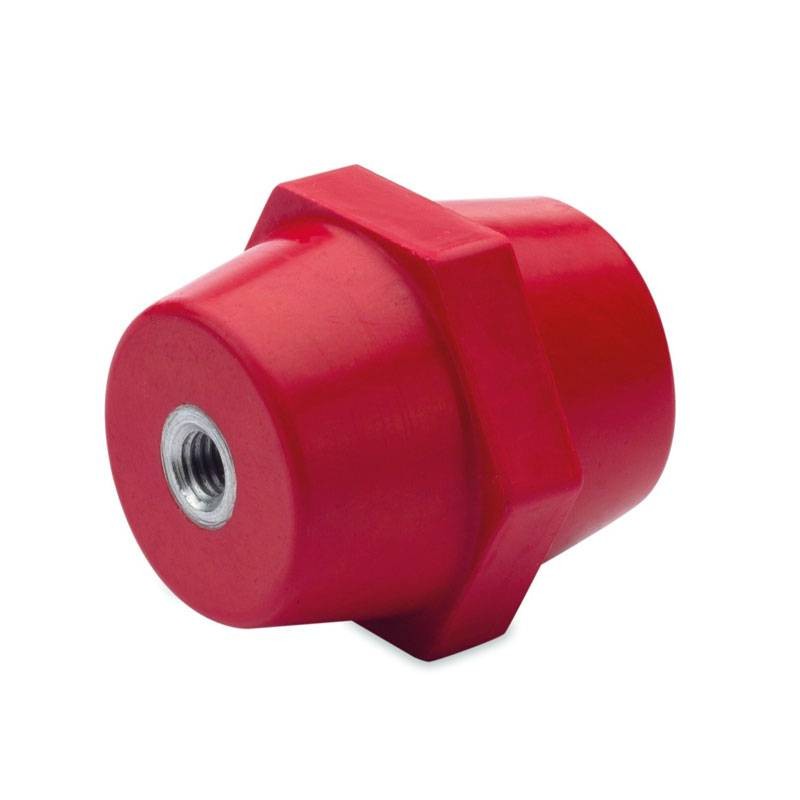

Red polyester insulator and spacer with the following features:


  • Thread: M10
  • Tightening torque: 25 Nm
  • AC voltage: 1.6 kV
  • DC voltage: 2.2 kV
  • Tensile strength: 1054 daN
  • Flexural strength: 345 daN
  • Insulation material: red polyester and glass fiber
  • Insert material: galvanized steel threaded according to ISO standards
  • Self-extinguishing level: UL 94 V0
  • Operating temperature: -40 °C to +135 °C

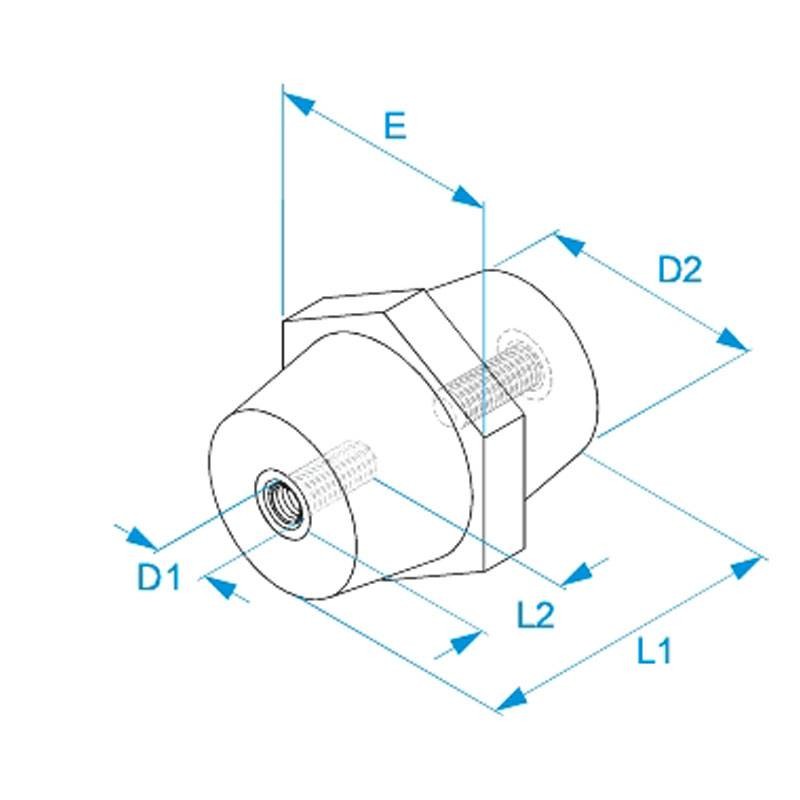

  • Dimensions: 40x12x38x30 mm (L1-L2-key E-D2)


Ideal for: support of threaded and drilled copper bars.
