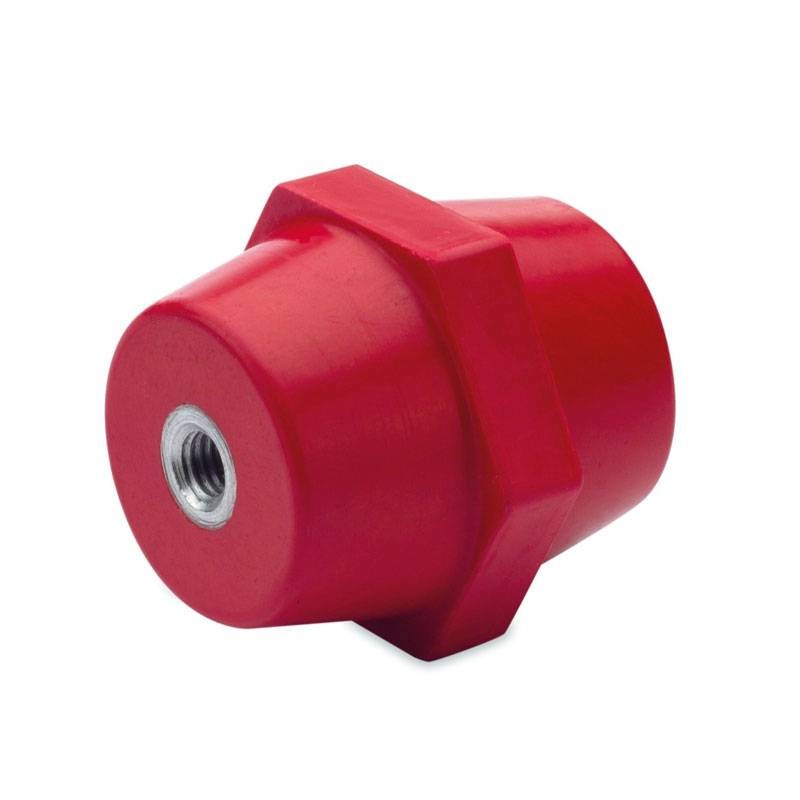

Isolator and spacer BM M6 H30 polyester red QHEP03006

Bm
BMM QHEP03006 8013629262201

Red polyester insulator and spacer with the following features:


  • Thread: M6
  • Tightening torque: 6 Nm
  • AC voltage: 1.2kV
  • DC voltage: 1.6kV
  • Tensile strength: 532 daN
  • Flexural strength: 154 daN
  • Insulation material: red polyester and glass fiber
  • Insert material: galvanized steel threaded according to ISO standards
  • Self-extinguishing level: UL 94 V0
  • Operating temperature: -40 °C to +135 °C

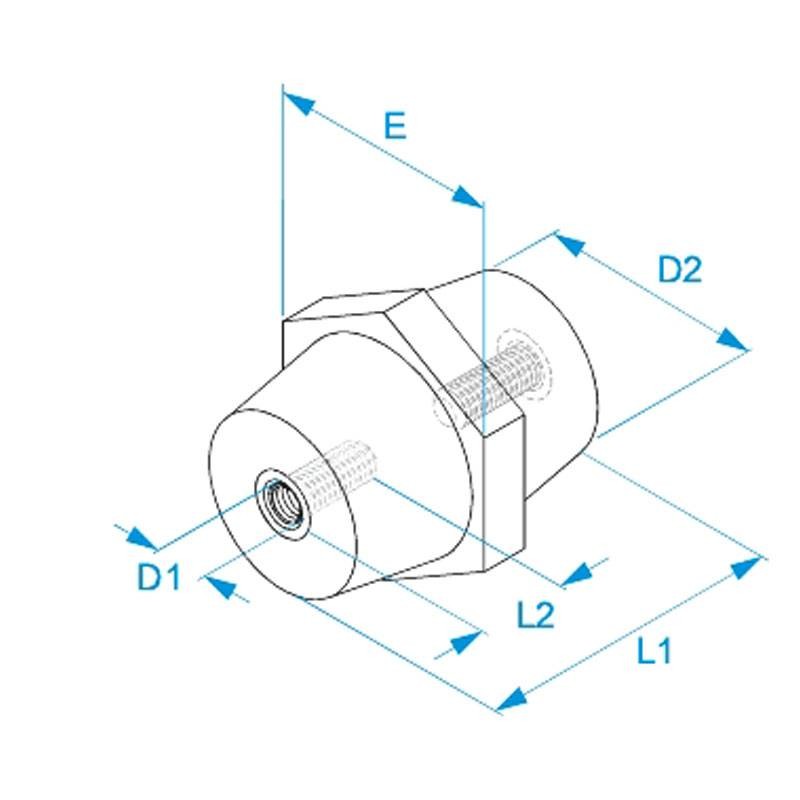

  • Dimensions: 30x9x32x24 mm (L1-L2-key E-D2)


Ideal for: support of threaded and drilled copper bars.
