Advantages and Functions:


• BLDC FAN MOTOR: The fan motor is BLDC type, in addition to allowing greater modulation of capacity ,given the wider range of rotational speeds available, it dissipates less heat than conventional AC motors. It operates with less noise and in the absence of electrical humming
• COMMANDS: The unit comes standard with infrared control
• INTEGRATED Wi-Fi: Indoor unit with built-in Wi-Fi to manage key functions through the Smart ThinQ app available for Android or iOS.
• Voice Control: Indoor unit compatible with Google Home voice assistants (Available functions: Power-Off-Temperature setting-Operation mode setting-Ventilation setting-Monitoring
• TOTALAIRFLOW CONTROL: Indoor unit with total airflow control. Vertical adjustment with 6 steps, which can be displayed on infrared control and 5 horizontal speps
• COMFORT AIR FUNCTION: By pressing the button on the infrared control, the positioning of the deflector occurs automatically according to the selected operating mode. In heating mode, the deflector adjusts to the lowest position while in cooling mode it adjusts to the highest position
• SMART DIAGNOSIS: Smart Diagnosis allows you to check functionality and troubleshooting via smartphone with a simple SMART DIAGOSIS app available for android devices.



Specifications:

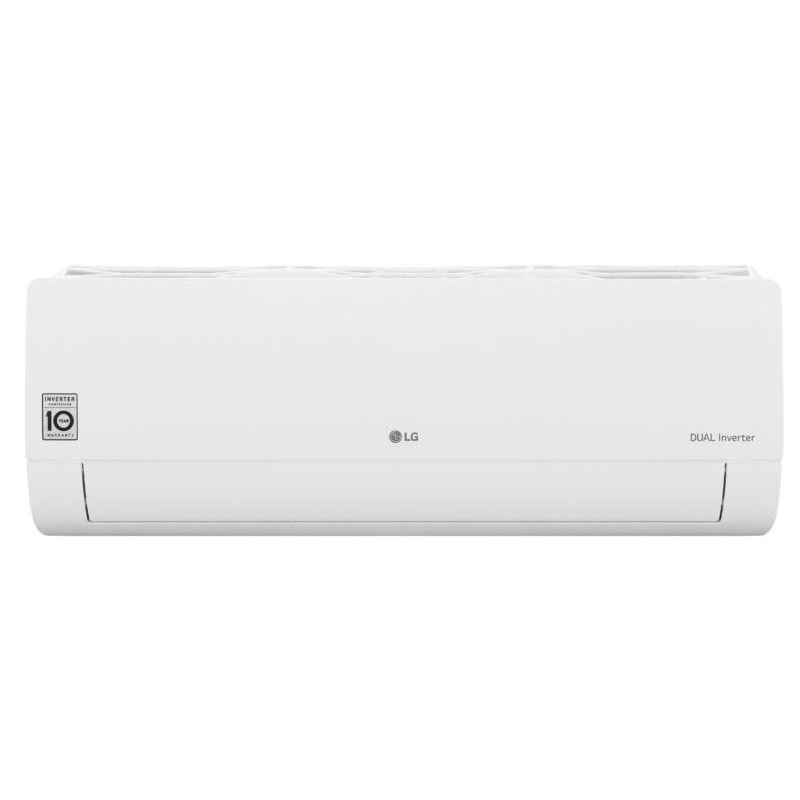

Features 2 Indoor Units S12ET.NSJ:

• Dimensions: WxHxD 837x308x189 mm
• Weight 8.7 kg
• Treated air cubic meters/h N/A
• Dehumidification capacity l/hr 1.2
• Sound pressure level (Cooling) dBa 40-35-27
• Sound Power Level dBA 57

Features 1 Indoor Unit S09ET.NSJ:

• Dimensions: 600x600x145mm
• Weight 15kg
• Treated air cubic meters/h N/A
• Dehumidification capacity l/hr 1.1
• Sound pressure level (Max-Min) dBa 38 -19
• Sound Power Level dBA 52

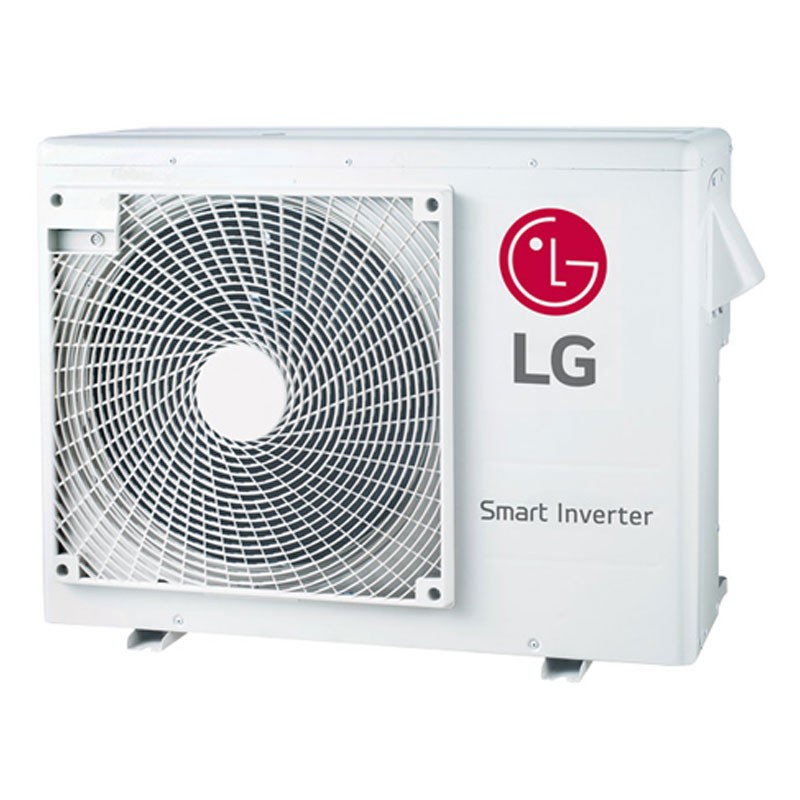

Outdoor Unit Features:

• Power supply Ø,V;Hz 1.220~240.50
• Cooling Capacity Min-Nom-Max kW 1.06 ~ 6.15 ~ 7.33
• Heating Capacity Min-Nom-Max kW 1.17 ~ 7.03 ~ 7.80
• Power Consumption Cooling Min-Nom-Max kW 0.29 ~ 1.44 ~ 2.45
• Power consumption Heating Min-Nom-Max kW 0.28 ~ 1.53 ~ 2.38
• Current Consumption Cooling A 1.3~ 6.5 ~ 11.1
• Energy Efficiency Class (Scale A++ to E) Cooling/Risc A+++/A+
• SEER/SCOP 8.5/4.4
• EER/COP 4.27/4.59
• Current consumption in Heating A 1.3 ~ 6.9 ~ 10.8
• Dimensions (WxHxD) mm 870x650x330
• Weight kg 46
• Sound pressure level in Cooling /Resc. Nom dB(A) 48/53
• Sound power level in cooling/heating Max dB(A) 64
• Fan Type Helicoidal with BLDC motor
• Ventilation capacity m3/min 50
• Compressor Type Twin Rotary
• Compressors 1
• Refrigerant R32
• Quantity of refrigerant precharged g 1400
• GWP 675
• t-CO2 eq 0.95
• Refrigerant Control EEV (Electronic Expansion Valve)
• Liquid piping connection mm (inch) 6.35 (1/4) x3
• Gas piping connection mm (inch) 9.52 (3/8) x3
• Maximum number of connectable indoor units 3
• Maximum allowable connectability 12+12+9
• Maximum total piping length m 50
• Maximum single piping length m 25
• Piping length with precharge m 22.5
• Increment Refrigerant g/m 20
• Maximum permissible height difference U.Int-U.Est. m 15
• Minimum Single Pipe Length m 3
• Dimensions: Width 870 mm x Height 650 mm x Depth 293 mm.
