TCI linear multi-lamp electronic ballast 1X36 137994/136H

Tci Led
TCI 137994/136H 8010703151789

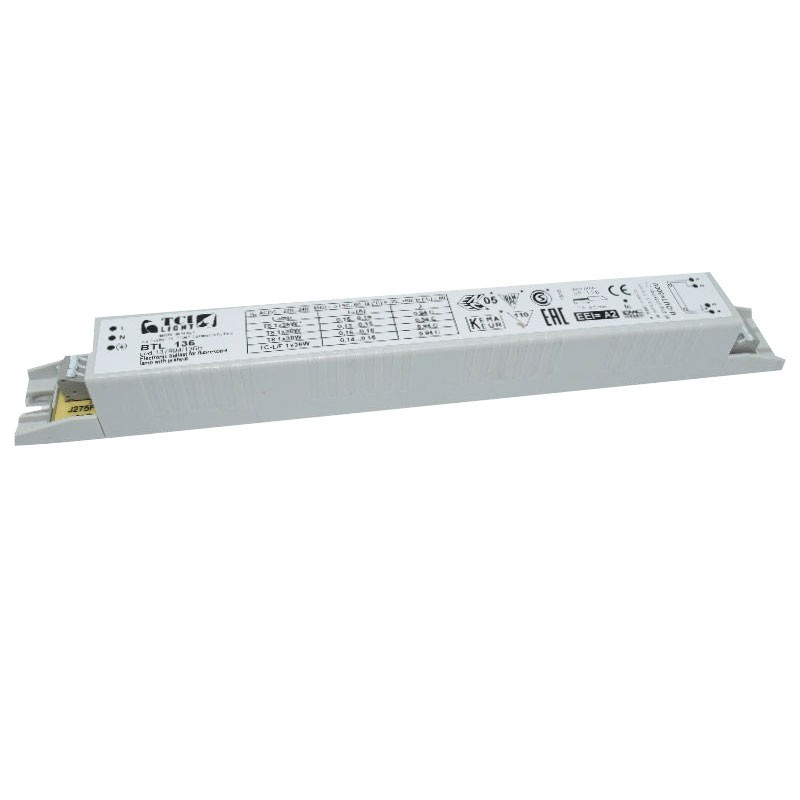

TCI BTL 136 electronic ballast Linear multi-lamp/multi-power, with the following characteristics:

  • Power supply: 220/240V
  • Frequency: 0/50...60 Hz

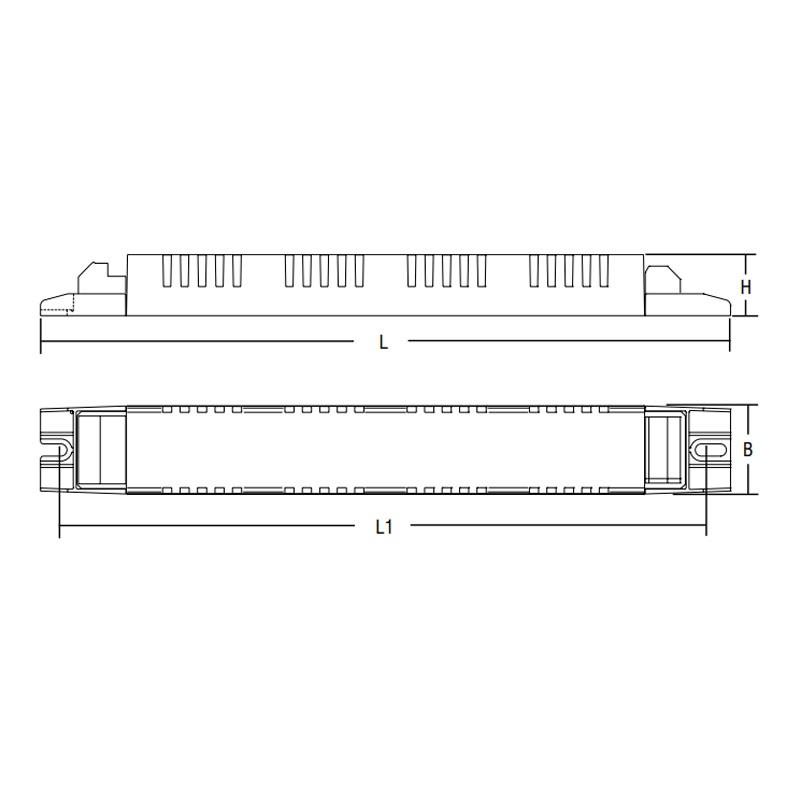

  • Dimensions: L 280 - L1 265 - B 30 - H 29
  • Power/consumption: 1x36 watt
  • Lamp cap: T8, TC-L, TC-F
  • Cap attachment: G13, 2G11, 2G10
  • Power factor: 0.94C
  • TA: -25/+60°C
  • TC: +80°C
  • Weight: 150 grams
Do you have questions about this product or did you not find what you were looking for? Ask us!

TCI linear multi-lamp electronic ballast 1X36 137994/136H

€12.20
€12.20

TCI linear multi-lamp electronic ballast 1X36 137994/136H

€12.20
Tax included
Items Available: 37
Further availability of the manufacturer

TCI linear multi-lamp electronic ballast 1X36 137994/136H

€12.20

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Strengths:

  • Electronic ballast to be incorporated
  • Can be used for luminaires in protection class I and II (BTLT 280 class I)
  • Suitable for connection with emergency luminaires according to EN 60598-2-22
  • Quick-connect terminals
  • Opposing input and output terminals (connector cross section: 0.5÷1.5 mm2 )
  • Fixing of the power supply via screw slots
  • Ignition with preheating for long lamp life

Protections:

  • Extra mains voltage
  • Lamp disconnection
  • Failed lamp
  • Lamp end-of-life

Reference Standards:

  • EN 55015 EN 60598-2-22
  • EN 60929
  • EN 61000-3-2
  • EN 61347-2-3
  • EN 61547

lo uso per alimentare la lampada di un acquario e fà il suo dovere

Read all reviews

Data sheet

Type:
Electronic ballasts
