TCI linear multi-lamp electronic ballast 2X18 137994/218H
TCI 137994/218H
8010703151819
TCI BTL 218 electronic ballast Linear multi-lamp/multi-power, with the following characteristics:
- Power supply: 220/240V
- Frequency: 0/50...60 Hz

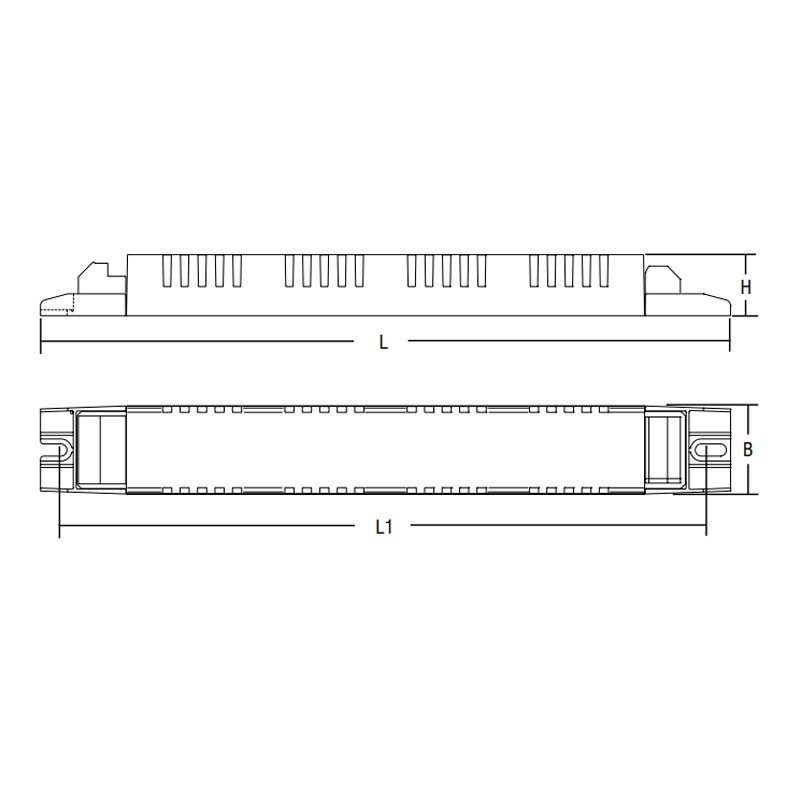

- Dimensions: L 280 - L1 265 - B 30 - H 29
- Power/consumption: 2x18 watts
- Lamp cap: T8
- Cap attachment: G13
- Power factor: 0.95
- TA: -25/+60°C
- TC: +80°C
- Weight: 180 grams
TCI linear multi-lamp electronic ballast 2X18 137994/218H
€12.96
€12.96
Tax included
Tax included
Items Available: 90
: 46
Strengths:
- Electronic ballast to be incorporated
- Can be used for luminaires in protection class I and II (BTLT 280 class I)
- Suitable for connection with emergency luminaires according to EN 60598-2-22
- Quick-connect terminals
- Opposing input and output terminals (connector cross section: 0.5÷1.5 mm2 )
- Fixing of the power supply via screw slots
- Ignition with preheating for long lamp life
Protections:
- Extra mains voltage
- Lamp disconnection
- Failed lamp
- Lamp end-of-life
Reference Standards:
- EN 55015 EN 60598-2-22
- EN 60929
- EN 61000-3-2
- EN 61347-2-3
- EN 61547
There are no reviews
Data sheet
- Type:
- Electronic ballasts
