TCI 12V electronic transformer for Led 1-70W dimmable 119772
TCI 119772
8010703460584

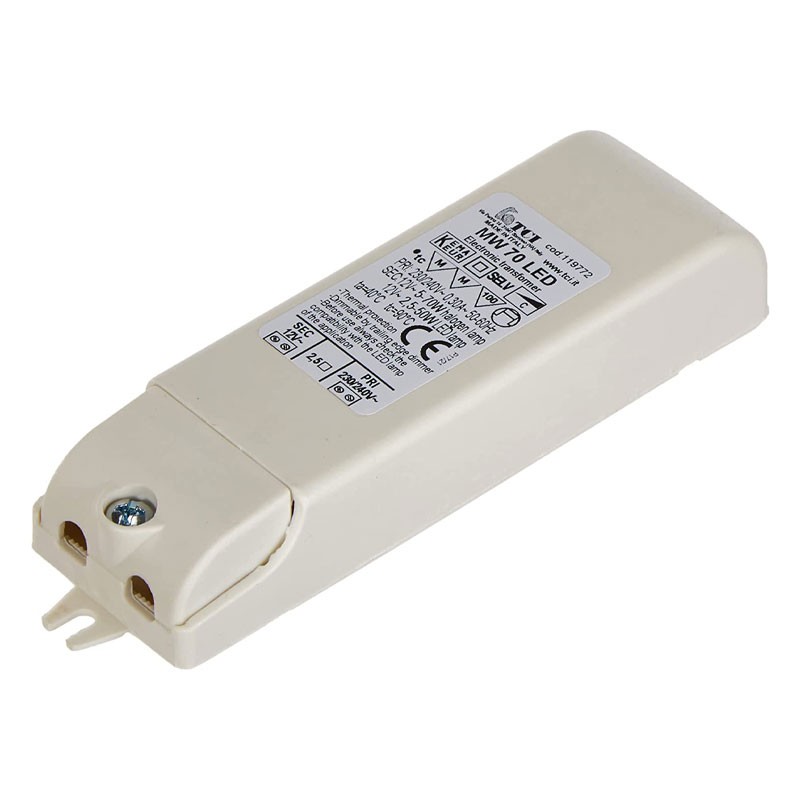

TCI MW 70 LED electronic transformer, with the following characteristics:
- Consumption/power: 2.5 ÷ 7W
- Rated voltage: 230/240V
- Frequency: 50/60 Hz
- Output voltage at 50 kHz: 12V
- Ta: -20/+40°C
- Tc: +90°C
- Power factor: 0.98 max
- Degree of protection: IP20
- White colour
- Dimmable
TCI 12V electronic transformer for Led 1-70W dimmable 119772
€11.13
€11.13
Tax included
Tax included
Items Available: 160
: 75
Advantages:
- IP20 independent transformer for 12 Vac lamps: 5 ÷ 70W halogen lamps ; 2.5 ÷ 50W LED lamps (max. 4/5 lamps)
- Protected in class II against electric shock from direct and indirect contacts
- Supplied with terminal cover and cable fastener
- Input and output terminals on same side (cable cross section up to 0.5 - 2.5 mm2 / AWG20 - AWG13)
- Clamping on primary and secondary for cable diameters: min. 3 mm - max. 6 mm
- Cable sheathing max. 18 mm
- Transformer fastening via screw slots
- Ultra-compact dimensions
Protections:
- Thermal and short circuit
- Against extra mains voltages
- Against overloads
Direct replacement for 15 year old transfo. Easy to fit, works fine.
Eccellente, serie molto bella e facile da montare!
Venditori precisi e seri.Raccomandati per acquistare senza problemi
Con un carico di 4 faretti led da 4w l'uscita era ad 8,5v però i faretti si sono accesi e sta funzionando regolarmente.
Prodotto come da sito web. Imballaggio mancante
....ma quello vecchio (per le lampadine alogene) ha fallito!
Data sheet
- Type:
- Electronic transformers
