TCI electronic power supply for led 24V 120W dimmable 122730
TCI 122730
8010703356405

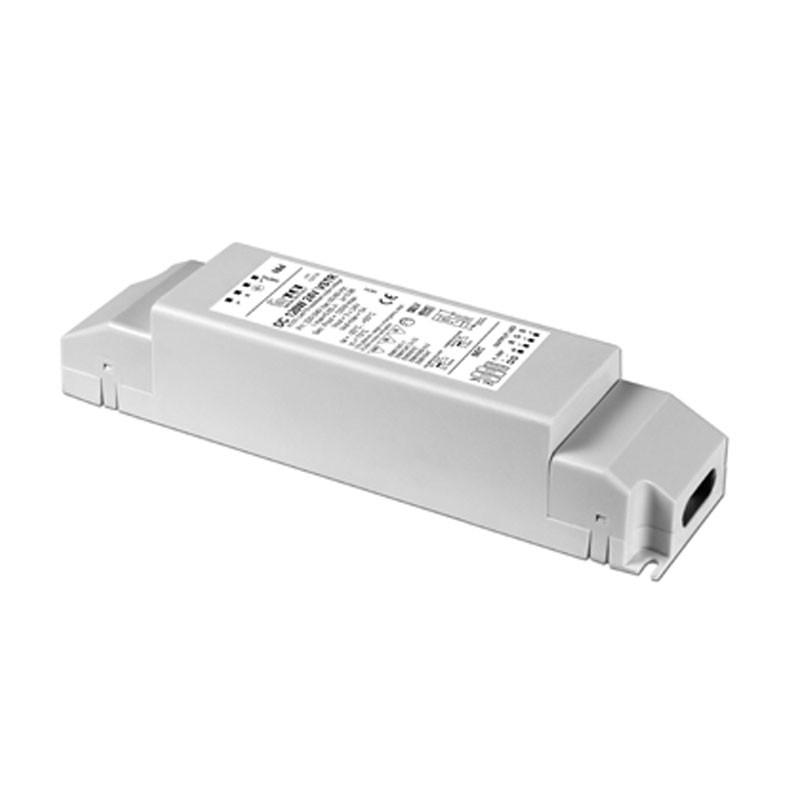

TCI DC 120W 24V VSTR electronic dimmable LED power supply.
TCI electronic power supply for led 24V 120W dimmable 122730
€91.50
€91.50
Tax included
Tax included
Items Available: 6
DESCRIPTION:
- AC/DC switching power supply for Class I dimmable LED modules.
- RGB mode controlled with IR remote control or push button
- Single output mode controlled with 1- 10V signal or push button
- Power, voltage, current output rating: 120W / 24 V / 5 A Max
- Power factor: 0.98

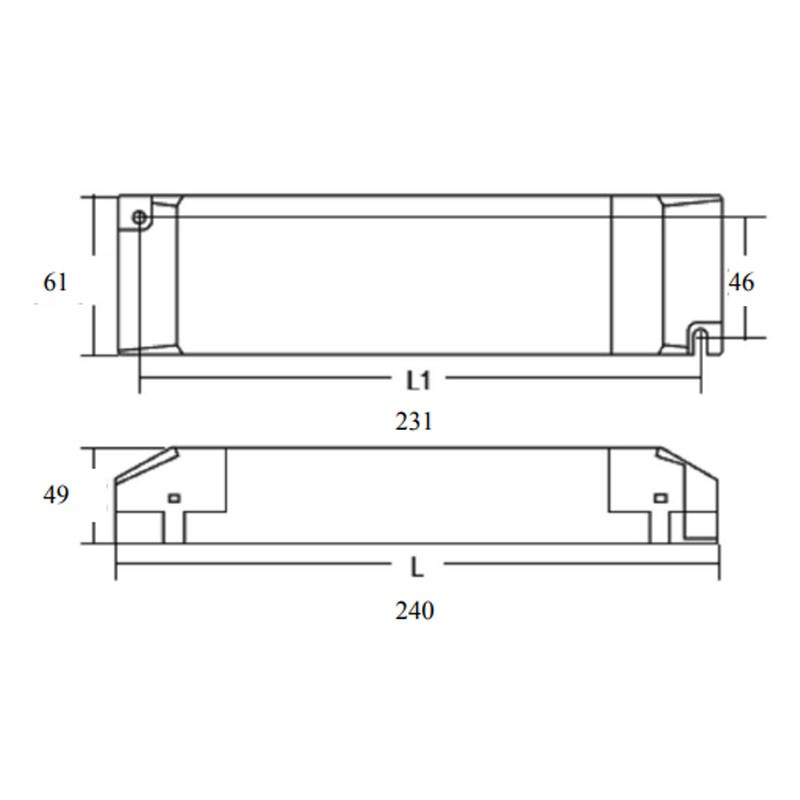

- Dimensions: L=240 x 61 mm. H = 49 mm L1 =231 mm
INPUT:
- Nominal: 220/240 Vac
- Maximum: 264 Vac
- Minimum: 198 Vac
- Maximum current: 0.65A
- Power factor: 0.98
- Inrush current: 35A for 1 ms
- Harmonics: according to EN 61000-3-2
- Terminal: 3 x 0.5÷2.5 mm2
- Efficiency: 92%@ 120W output
- Standby power consumption: <1W
OUTPUT:
- SELV isolation
- Terminal: 4 x 0.5÷2.5 mm2
- Stabilized output voltage
- Maximum power output single channel:100W
- Maximum total power output:120W
PROTECTIONS AND EMI:
- Overload and short circuit protection
- Thermal protection
- At input, against mains impulse overvoltage
- EMI: According to EN 55015
ENVIRONMENT:
- IP20 degree of protection
- Ta = -20/+50 °C
- Tc =75 °C
- Tc life 50000H =75 °C
Data sheet
- Type:
- Power supplies
- Voltage:
- 24V
- Degree of protection:
- IP20
- Watts:
- From 101 to 200W
- Dimmable:
- Yes
