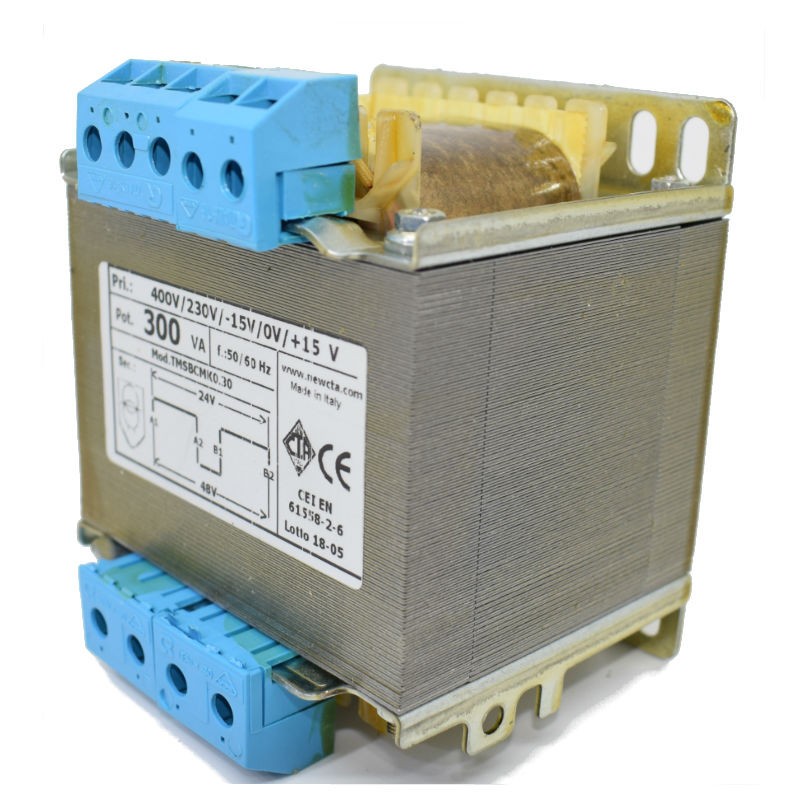

Transformer CTA two-Wire isolation 300VA 230-400/24+24 TMSBCMK0.30

Brand: New C.T.A.

Code: NET TMSBCMK0.30 EAN:

Transformer CTA two-Wire isolation 300VA 230-400/24+24 the Primary 0-230-400V 15V Secondary 0-24, Frequency 50/60Hz, dielectric strength between the primary-secondary: 3Kv for 1' to 50Hz, dielectric strength between windings-ground: 3KV for 1' to 50Hz, with the ability to adjust the voltage input and take the output by means of some jumpers, the full-power on all the voltages present.

Transformer CTA two-Wire isolation 300VA 230-400/24+24 TMSBCMK0.30

€102.11

Transformer CTA two-Wire isolation 300VA 230-400/24+24 TMSBCMK0.30

€102.11
Tax included

Items Available: 1

Further availability of the manufacturer

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Technical features: thermal Class cL. F, INSULATION class cL.F, Class of security Cl. I, Max ambient Temperature 35° C, storage Temperature: -20;+60°C (non-condensing), Impregnated with epoxy resin, Altitude: < 1000m, Accessories: 2 metal contacts mobile for realization combinations 24V and 48V full power, protection box: IP00. Comparable series Legrand 6423, insulation Resistance > 5 M?.

There are no reviews

Data sheet

Type:: Isolation transformers

Transformer CTA two-Wire isolation 300VA 230-400/24+24 TMSBCMK0.30

Transformer CTA two-Wire isolation 300VA 230-400/24+24 TMSBCMK0.30

Transformer CTA two-Wire isolation 300VA 230-400/24+24 TMSBCMK0.30

Transformer CTA two-Wire isolation 300VA 230-400/24+24 TMSBCMK0.30
