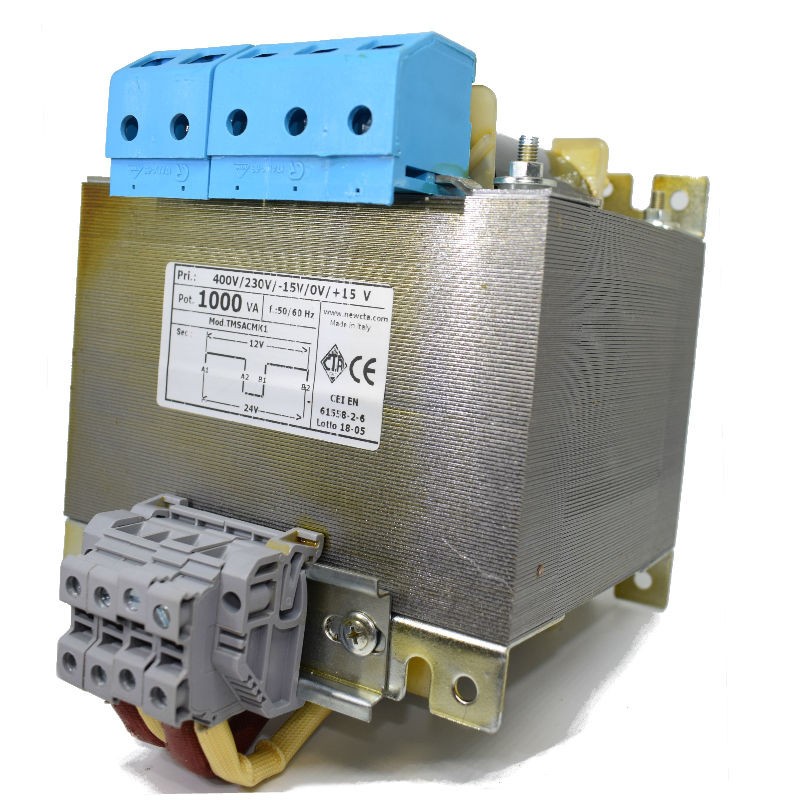

Transformer CTA two-Wire safety 1000VA 230-400/12+12 TMSACMK1
NET TMSACMK1
Transformer CTA two-Wire security and isolation 1000VA 230-400/12+12 the Primary 0-230-400 V 15V - secondary 0-12 - dielectric strength between primary-secondary 3KV for 1' to 50Hz - dielectric strength between windings-mass: 3 KV for 1' to 50Hz, with the ability to adjust the voltage input and take the output by means of some jumpers, the full-power on all the voltages present.
Transformer CTA two-Wire safety 1000VA 230-400/12+12 TMSACMK1
€278.34
€278.34
Tax included
Tax included
Items Available: 3
Technical specifications: dielectric strength between windings-mass: 3 KV for 1' a 50Hz - insulation Resistance of 5 M?, Thermal class CL.F, insulation class Cl.F, Class Of Security Cl.I, Max ambient temperature 35°C, storage temperature -20;+60°C, Impregnated with epoxy resin, Altitude < 1000m, Accessories 2 metal contacts mobile for realization combinations 12V and 24V full power. Protection box: IP00. Comparable series Legrand 6423, insulation Resistance of 5 M?, Thermal class CL.F, insulation class Cl.F, Class Of Security Cl.The, ambient temperature Max 35°C
There are no reviews
Data sheet
- Type:
- Safety transformers
