BM copper 10mm tube lugs for uninsulated conductors 01443

Bm
BMM 01443 8013629014435

BM copper 10mm tube lugs for uninsulated conductorswith the following characteristics:

  • Terminal material: tinned copper
  • Operating temperature: -50 °C to +150 °C
  • Cross section: 10mm²
  • Screw diameter: 10mm
  • Matrix hexagon number: 7
  • For conductor class: 1, 2, 5, 6

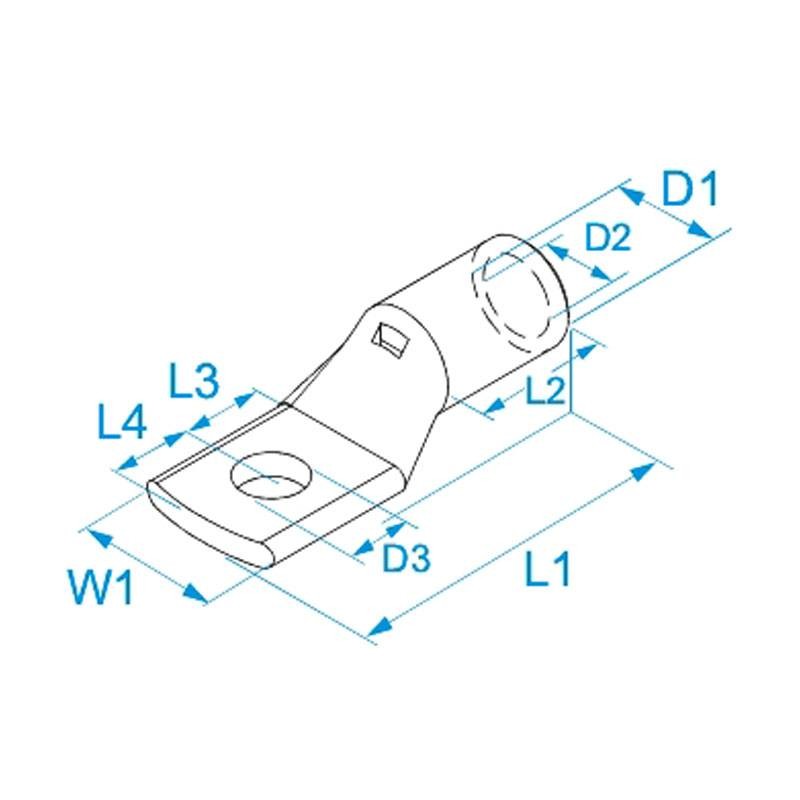

  • Dimensions: 7.2x34x9.5x9.6x9.5x7x5x10.5 mm W1 - L1 - L2 - L3 - L4 - D1 - D2 - D3
Do you have questions about this product or did you not find what you were looking for? Ask us!

BM copper 10mm tube lugs for uninsulated conductors 01443

€0.39
€0.39

BM copper 10mm tube lugs for uninsulated conductors 01443

€0.39
Tax included
Items Available: 483
Further availability of the manufacturer

BM copper 10mm tube lugs for uninsulated conductors 01443

€0.39

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Tin-plated copper terminal material
  • Operating temperature -50 °C to +150 °C
  • Conductor class Class 1 and 2 (rigid) and Class 5 (flexible) according to EN 60228
  • Inspection hole yes
  • Standards Ref. UL 486 A-B
  • Solid section AWG/MCM 8
  • Flexible section AWG/MCM 8
  • For screw diameter 10
  • For 3/8" screw
  • Hexagon die number 7

There are no reviews

Data sheet

Type:
Terminal lugs
Cross-Section:
10mmq

Cables with the same section

Other products with same features
