BM copper 120 mm² tube lugs for uninsulated conductors 032433

Bm
BMM 032433

Copper BM tube lugs for uninsulated conductors with the following characteristics:

  • Terminal material: tinned copper
  • Operating temperature: -50 °C to +150 °C
  • Inspection hole: No
  • Cross-section: 120 mm²
  • AWG/MCM cross-section: 4/0
  • Screw diameter: 10 mm
  • Stud size: 3/8"
  • Hexagon die number: 18

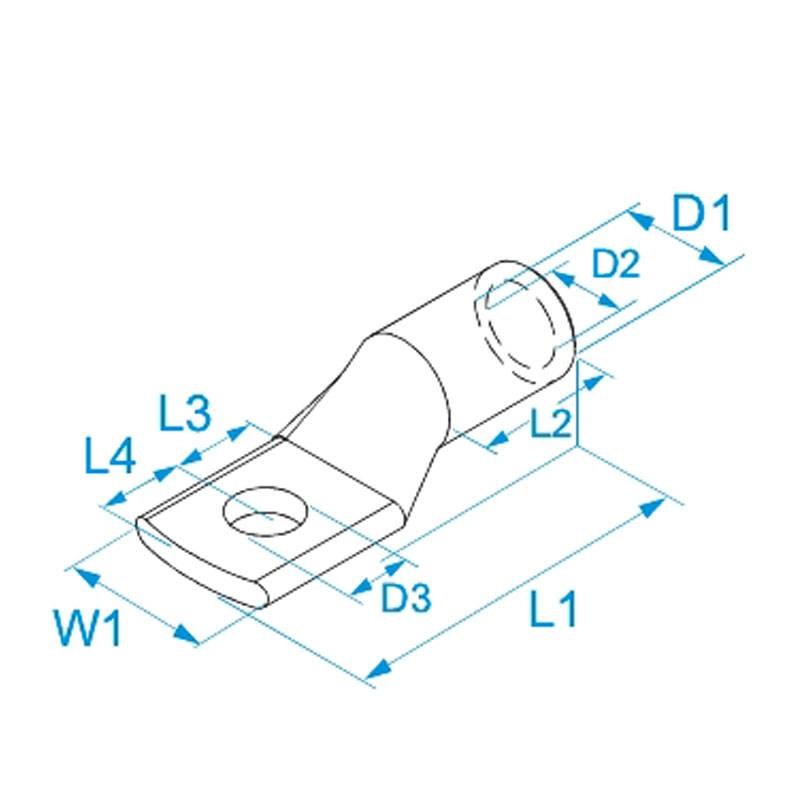

  • Dimensions: 15x39x16x8x7x11.5x8.5x6.5 (W1 - L1 - L2 - L3 - L4 - D1 - D2 - D3)
  • Area of application: Narrow width connection flap allows connection on equipment with terminals that are not adequately sized to accommodate standard terminals
  • Reference Standards: UL 486 AB
Do you have questions about this product or did you not find what you were looking for? Ask us!

BM copper 120 mm² tube lugs for uninsulated conductors 032433

€5.73
€5.73

BM copper 120 mm² tube lugs for uninsulated conductors 032433

€5.73
Tax included
Items Available: 536
Further availability of the manufacturer

BM copper 120 mm² tube lugs for uninsulated conductors 032433

€5.73

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

There are no reviews

Data sheet

Type:
Terminal lugs
Cross-Section:
120mmq
