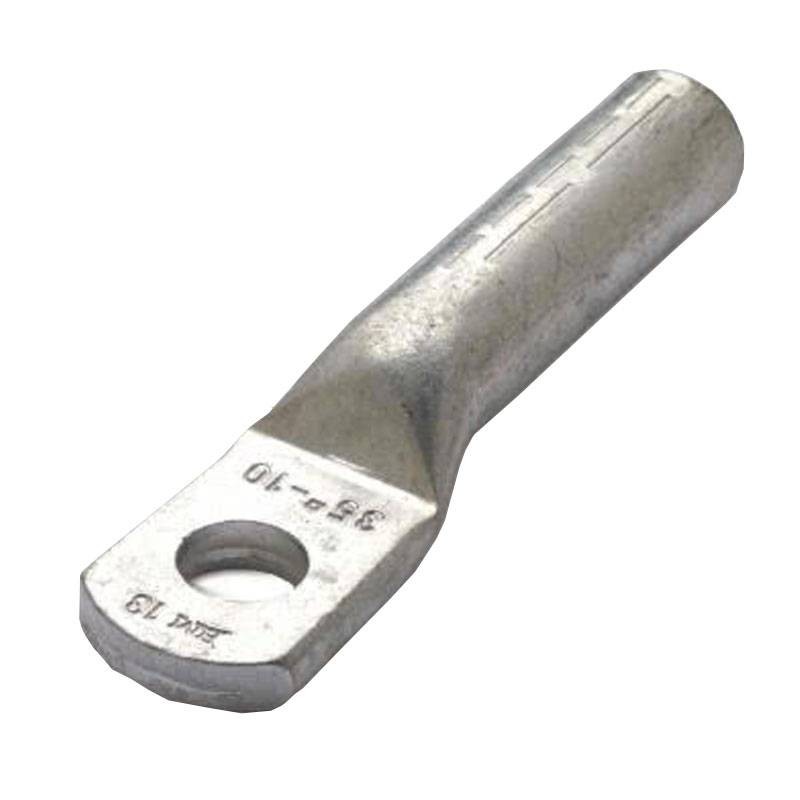

BM lugs for non-insulated aluminum conductors DIN 70-12 76071

Bm
BMM 76071

BM cable lugs for non-insulated aluminum conductors DIN 70-12 with the following characteristics:

  • Non-compact circular or sectional conductor cross-section: 70 mm²
  • Circular compact conductor section: 95 mm²
  • Screw diameter: 12 mm
  • Stud size for screw: 1/2"
  • Matrix hexagon number 18mm
  • Material: aluminum 1050 A EN573-3 with purity not less than 99.5%

The conductor housing is filled with grease (drop point at 90°C) and closed with plastic cap to prevent oxidation.

Do you have questions about this product or did you not find what you were looking for? Ask us!

BM lugs for non-insulated aluminum conductors DIN 70-12 76071

€5.05
€5.05

BM lugs for non-insulated aluminum conductors DIN 70-12 76071

€5.05
Tax included
Items Available: 25
Further availability of the manufacturer

BM lugs for non-insulated aluminum conductors DIN 70-12 76071

€5.05

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

There are no reviews

Data sheet

Diameter:
12mm
Type:
Terminal lugs
